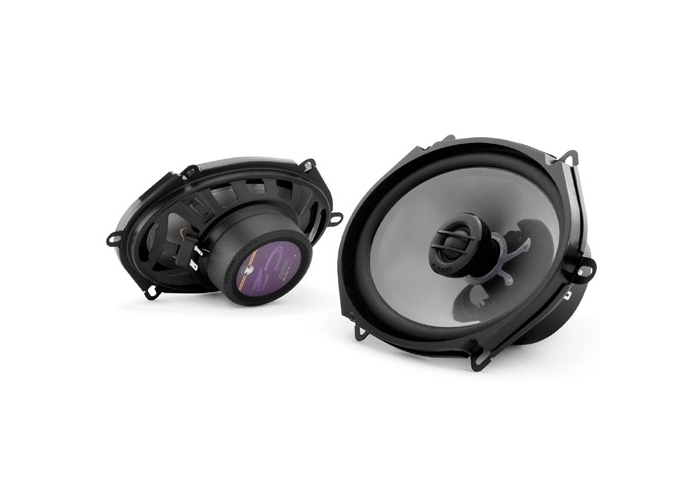

JL Audio C2-570X 5x7" 100w Car Speakers

Click on above image to view full picture

  • JL Audio C2-570X 5x7" 100w Car Speakers
  • JL Audio C2-570X 5x7" 100w Car Speakers
  • JL Audio C2-570X 5x7" 100w Car Speakers

List Price: $198.00 On Sale: $165.85 (GST Included) (You save 16.24%)

SKU: C2570X


$9.95 Flat Rate Generally ships out in 24 to 48 hours.


How To Build A Bundle

The following accessories can be bundled with your purchase by checking the green ‘Include with Product’ button. You can add as many items to your order as you require and then simply ‘Add to Cart’ to complete order.

Product Info

Product Info

JL Audio C2-570X 5x7" 100w Car Speakers

We Think YOU Should Know

  • 12 Month JL Audio Australian Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • 4 Ohm
  • C2 Series 5x7" Car Speakers
  • 100 Watts Peak Power
  • 60 Watts RMS Power
  • Polypropylene cone
  • Butyl rubber surround

 For a car speaker to excel it must be thoroughly engineered in all areas. The woofer design must deliver sufficient efficiency, smooth mid-range response and good low-frequency extension. The tweeter must be smooth off-axis, exhibit good extension and be non-fatiguing, while the crossover design must seamlessly blend the sound of the drivers so that the end result is clean, realistic audio performance.

In designing the new C2 Coaxial and Component Systems, we have drawn from our vast experience in woofer design as well as the tweeter technologies employed in our world-class C5 component systems. The resulting products deliver a compelling performance solution at a price within reach of any enthusiast seeking a great listening experience.
Killer Bass
How do we get great bass from our component speakers? The same way we get it from our legendary subwoofers.

It starts with ample mechanical clearance, optimized suspensions and balanced motor designs. This allows us to use longer voice coils that let our speakers move further for enhanced output and lower frequency extension, something that weaker designs can’t do without exposing their inadequacies. We also avoid certain “pitfalls of convenience”. For example, we make a separate 6-inch and 6.5-inch model… because designs that attempt to cover both sizes compromise suspension travel and linearity.

But, you don’t have to take our word for it… fire up a pair of C2's with some good clean power at your local dealer and listen to music with solid, intricate bass content. Then switch to any other speaker in the same price class. It's not going to be a subtle difference.

Loud and Clear
It's not terribly difficult to make a speaker that sounds pretty loud in the midrange. This common approach leads to speakers that grab your attention at first (loud tends to do that), but ultimately sound harsh and fatiguing during extended listening sessions (because the loudness is not evenly distributed).

Smoothness of response and freedom from excessive distortion are the factors that truly matter in creating a speaker design that reveals the inner detail of your music, making them enjoyable for years to come.

Making a speaker that can play loud without sounding harsh is what separates the men from the boys. So, we focus on creating low-distortion motor and suspension systems, as well as carefully engineered cones that deliver the right combination of stiffness, damping and off-axis response. If you didn’t understand a word of that, don’t worry… you will hear it, loud AND clear when you audition a C2 speaker system.

Silky Smooth Tweeter
Ahh, the tweeter… everybody has a story about their tweeter. You hear crazy things like “unobtainium dioxide, vapor deposited by elves onto a specialized polymer”. Then you listen to it and it sounds like needles piercing your eardrums. So much for painted plastic tweeters, then.

In fine home speakers and studio monitors, one tweeter material and basic architecture is used above all others, and for very good reasons. A well-designed, edge-driven silk dome is smooth, detailed (on or off axis), and very hard to beat in terms of overall performance. Silk is about as lightweight as it gets (good for high frequency extension and efficiency), is very well-damped (doesn’t ring like a bell) and thanks to nature's magic is also extremely durable in the automotive environment.

That's why we chose it for the C2 (and C5) systems.

C2 Component Systems.
These systems include flush and surface mount tweeter mounting fixtures and true 2-way outboard crossovers, each with three user-selectable tweeter attenuation levels.

Stylish Grille Design
All models, except the C2-350x and C2-570x, include front-loading protective grilles with a striking new design that combines black steel mesh with satin silver accents. Electroformed logo nameplates can be positioned on the grilles or elsewhere in the vehicle, according to the needs of the installation.


Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is supplied directly via JL Audio Australia and enjoys the FULL benefits of the 'JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with JL Audio Australia directly.

We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.

This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

C2-570x Coaxials Specifications:


C2-570x Coaxials


Evolution® C2 5 x 7 / 6 x 8 in. / 125 x 180 mm Coaxials
Also fits 6x8-inch factory locations. Perfect fit in most newer Ford vehicles.
This speaker system is a perfect fit for many Ford vehicles and others that accept a 5x7-inch or 6x8-inch speaker. Configured for two and four-hole mounting configurations.


Injection-molded, Mica-filled, Polypropylene Cone, Butyl Rubber Surround, 1 in. Voice Coil on Kapton® Former, Flat, Symmetrical Roll Spider, Ferrite Magnet


0.75 in. (19 mm) Silk Dome, Ferrofluid Cooling / Damping, Neodymium Magnet

Continuous Power Handling:

60 Watts

Rec. Power Range (per channel):

15 - 100 Watts

System Efficiency:

90.5 dB @ 1W/1m

System Nominal Impedance:

4 ohms

System Frequency Response:

53 Hz - 22 KHz ± 3 dB


C2-570x Coaxials Physical Specifications :


Woofer Frame Outer Diameter* (A)

5.47 x 7.68 in. / 139.0 x 195.0 mm

Woofer Grille Tray Outer Diameter** (B)


Woofer Magnet Outer Diameter (C)

2.76 in. / 70.0 mm

Frontal Coaxial Tweeter Protrusion*** (D)

0.47 in. / 11.9 mm

Woofer Frontal Grille Protrusion**** (E)


Woofer Mounting Hole Diameter (F)


Woofer Mounting Depth (G)

2.43 in. / 61.9 mm

*Does not take into account mounting tabs
***Frontal coaxial tweeter protrusion measured from mounting surface


In The Box

What's Included?

  • JL Audio C2-570X 5x7" 100w Car Speakers
