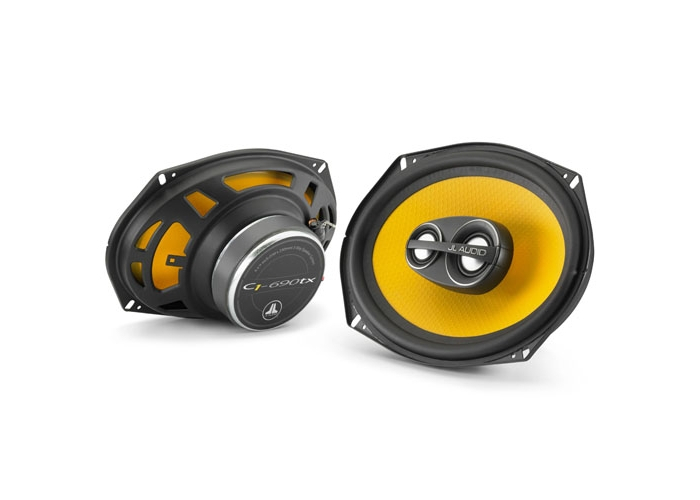

JL Audio C1-690TX 6 x 9" 3 - Way Coaxial Speakers
JL Audio 6x9" 3 WAY 60 RMS 4Ω
( JL Audio C1690TX)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio C1-690tx 6x9" 3-Way Coaxial Speakers
- Polypropylene woofer with dual aluminum tweeters
- DMA-optimized motor for clear, dynamic sound
- Easy fit with included spacer rings
Overview
The JL Audio C1-690tx is a 6x9-inch 3-way coaxial speaker system designed for exceptional sound and easy installation. Featuring a polypropylene cone woofer, 1-inch aluminum dome tweeter, and 0.75-inch super tweeter, it delivers dynamic, clear, and distortion-free audio. With DMA-optimized motor design, FEA modeling, and durable materials, it offers precise motion control and long-lasting performance. Dual aluminum dome tweeters ensure crisp highs and wide off-axis response, enhanced by silk surrounds and neodymium magnets. The included spacer rings simplify bottom-mount setups. Combining advanced engineering and real-world value, the C1-690tx provides premium JL Audio sound in an affordable, factory-fit package.
Key Features:
Continuous Power Handling (RMS)
Delivers 60 watts continuous power for consistent performance.
Recommended Amplifier Power
Optimized for amplifiers rated between 10 – 100 watts RMS per channel.
High System Efficiency
90.5 dB @ 1 W / 1 m ensures strong output even with moderate power.
4-Ohm Nominal Impedance
Compatible with most amplifiers for flexible system integration.
Wide Frequency Response
Covers 36 Hz – 24 kHz (±3 dB) for deep bass and crisp highs.
Compact Design
Frame size: 6.38 x 9.33 in (162 x 237 mm); motor diameter: 3.94 in (100 mm).
Low Tweeter Protrusion
Coaxial tweeter extends only 0.72 in (18 mm) for easy grille fitment.
Shallow Mounting Depth
Mounting depth of 3.09 in (79 mm) fits easily into most vehicle doors.
| General Specifications | |
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 100 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 36 Hz - 24 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter* (A) | 6.38 x 9.33 in / 162 x 237 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 3.94 in / 100 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.72 in / 18 mm |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 3.09 in / 79 mm |
|
*Does not take into account mounting tabs |
|
- 1 x JL Audio 4" 2 WAY 35 RMS 4Ω
