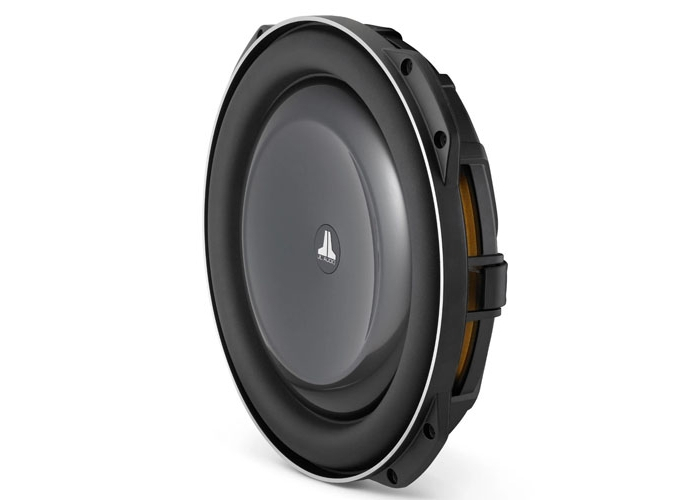

JL Audio 13TW5V2-4 13.5" 600w Car Subwoofer
JL Audio 13.5" Slim SUB 600 RMS 4Ω
( JL Audio 13TW5V24 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 13TW5v2 13.5" Subwoofer
- 600W, 4Ω, deep and precise bass
- Thin-line concentric tube design, 13% greater linear excursion
- Optimized for 12" footprint, mechanically stable
Overview
The JL Audio 13.5" Slim SUB 600 RMS 4Ω is a powerful slim-mount subwoofer engineered for deep, high-fidelity bass in space-constrained installations. Rated at 600 W RMS at 4 Ω, it delivers clean, distortion-free low-frequency performance. Its slim design allows flexible installation while maintaining exceptional output. Built with a robust cone, rubber surround, and advanced motor structure, it ensures reliable long-term performance. Optimized for both sealed and ported enclosures, it produces tight, dynamic, and precise bass. Ideal for enhancing midrange and high-frequency speakers, it provides a full, balanced, and immersive in-car listening experience.
Key Features:
13.5-Inch Slim Subwoofer
Delivers deep, powerful, and precise bass while fitting in compact vehicle spaces.
Power Handling
Handles 600 W RMS at 2 Ω for strong, distortion-free low-frequency output.
Durable Construction
Features a robust cone, rubber surround, and advanced motor design for long-lasting reliability.
Compact Slim Design
Ideal for shallow enclosures and tight installations without sacrificing bass performance.
Dynamic Bass
Produces tight, controlled, and impactful low-frequency response in a small package.
High-Fidelity Sound
Enhances midrange and high-frequency speakers for a full, balanced in-car audio experience.
Optimized Motor System
Ensures smooth, linear cone movement for accurate and articulate bass reproduction.
Versatile Application
Compatible with a wide range of amplifiers and vehicle interiors.
Low Distortion
Engineered for clean, precise bass even at higher listening levels.
JL Audio Engineering
Designed for premium, reliable in-car bass performance.
| General Specifications | |
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 250- 600 W |
| Nominal Impedance (Znom) | 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 13.5 in / 345 mm |
| Overall Diameter (A) | A1: 14.2 in / 361mm A2: 13.0 in / 330 mm |
| Mounting Hole Diameter (B) | 12.5 in / 318 mm |
| Bolt Hole Circle Diameter (C) | 13.5 in / 343 mm |
| Motor Outer Diameter (D) | 6.75 in / 171 mm |
| Mounting Depth (E) | 2.625 in / 67 mm |
| Driver Displacement | 0.052 cu ft / 1.47 L |
| Net Weight | 20.5 lb / 9.3 kg |
| Parameters | |
| Free Air Resonance (Fs) | 27.61 Hz |
| Electrical “Q” (Qes) | 0.553 |
| Mechanical “Q” (Qms) | 10.692 |
| Total Speaker “Q” (Qts) | 0.526 |
| Equivalent Compliance (Vas) | 2.13 cu ft / 60.31 L |
| One-Way Linear Excursion (Xmax)* | 0.433 in / 11 mm |
| Reference Efficiency (no) | 0.23% |
| Efficiency (1 W / 1 m)** | 85.63 dB SPL |
| Effective Piston Area (Sd) | 98.26 sq in / 0.0634 sq m |
| DC Resistance (Re) | 3.513 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 13.5" Slim SUB 600 RMS 4Ω
