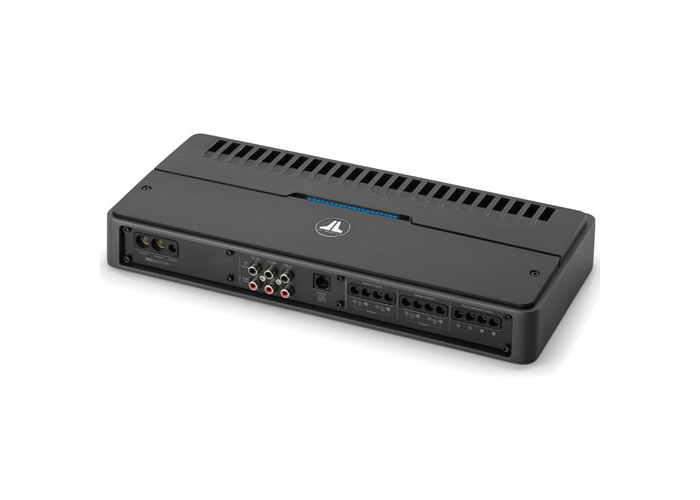

JL Audio RD900/5 Class D 5 Channel Amplifier
Check out the JL Audio RD900/5 Class D 5 Channel Amplifier's Key Features
(JL AUDIO RD9005)
- 12 Month JL Audio Australian Warranty
- Risk Free Purchase Guarantee (bottom of page)
- 5 Channel Class D Amplifier
- 100 W x 4 @ 2 Ω
- 70 W x 4 @ 4 Ω
Overview
Sleek and powerful, RD amplifiers offer outstanding amplifier performance and value.
RD amplifiers employ JL Audio’s exclusive NexD™ switching technologies to generate loads of power with exceptional efficiency, reducing current draw and heat. Each model features a modern, industrial design with a high performance look and finish. For ease of installation and making adjustments, all connections are placed along one side of the amplifier with the controls on top, concealed beneath a removable protective cover.
All RD models are equipped with studio-grade signal processing and automatic turn-on capabilities (via signal sensing and DC-offset sensing), for maximum flexibility. Differential-balanced inputs are also on-hand to combat noise and maximize compatibility with a wide range of signal types. Two additional features have been included to simplify installation and set-up: LED clipping indicators to streamline the input level setting process, and "Input Type" switches on the stereo channel sections, eliminating the need for Y-adaptors when bridging.
The look is amazing, and the performance backs it up.
5-Channel Class D System Amplifier, 70 W x 4 @ 4 Ω + 500 W x 1 @ 2 Ω - 14.4V
Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.
Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.
LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat.
| Rated Continuous (RMS) Power @ 14.4 V | |
| Main Channels @ 4 Ω | 70 W RMS x 4 |
| Main Channels @ 2 Ω | 100 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 200 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 225 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 325 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| Main Channels @ 4 Ω | 60 W RMS x 4 |
| Main Channels @ 2 Ω | 90 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 180 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 200 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 250 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 350 W RMS x 1 |
| Subwoofer Channel @ 1.5 Ω | N/A |
| General Specifications | |
| Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 10 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass only |
| Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | No |
| Filter Defeat Function | No |
| Infrasonic Filter: Subwoofer Channel | No |
| Remote Level Control | Optional (RBC-1) |
| Remote Level Modes | Sub Ch. |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | No |
| Source Channel Selection for PreOuts | N/A |
| Physical Specifications | |
| Height (H) | 2.13 in / 54 mm |
| Width (W) | 14.66 in / 372 mm |
| Depth (D) | 6.96 in / 177 mm |
| Net Weight | 6.15 lb / 2.79 kg |
- JL Audio RD900/5 Class D 5 Channel Amplifier
Peace of Mind Purchase Guarantee
This product is supplied via JL Audio Australia and enjoys the FULL benefits of the 'Genuine JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with JL Audio Australia directly.
We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.
