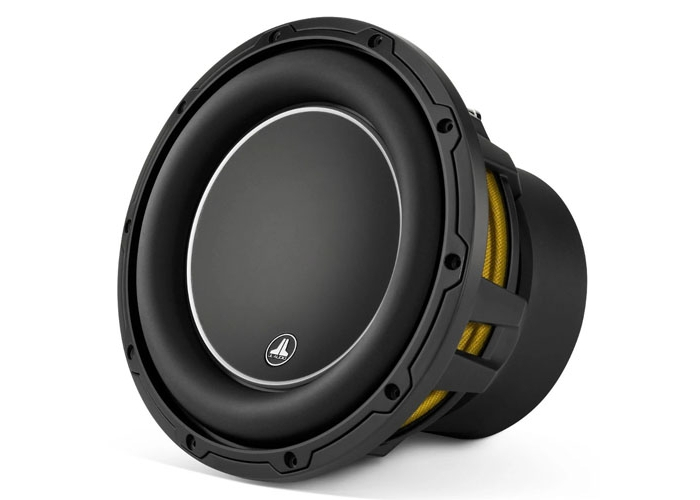

JL Audio 10W6V3-D4 10" 600w Car Subwoofer
JL Audio 10" SUB 600 RMS 4Ω
( JL Audio 10W6V3 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 10" Subwoofer
- 600W RMS at 4Ω
- Powerful, clean bass
- Compact design
Overview
The JL Audio 10W6v3 10" Subwoofer delivers premium sub-bass performance in compact enclosures. Sharing advanced technologies with JL’s flagship W7AE line, it ensures superior motor linearity, efficient cooling, and minimal distortion for exceptional sound clarity. With 600W RMS power handling, it offers high-output, dynamic bass with precise control. Optimized for sealed (0.55 cu. ft.) or ported (0.75 cu. ft.) enclosures, it provides flexibility for different setups. Engineered for audiophiles, the 10W6v3 stands out for its greater excursion, clean power delivery, and compact yet powerful design ideal for premium systems.
Key Features:
10-Inch Slim Subwoofer
Delivers deep, powerful, and accurate bass from an ultra-shallow design ideal for space-limited systems.
Power Handling
Rated 600 W RMS, providing high-output, clean performance with flexible wiring options.
High Excursion Capability
Very long linear excursion (0.75 in / 19 mm one-way) for increased output and dynamic bass from extremely small enclosures.
Optimized Motor & Design
DMA-optimized motor designs, patented floating-cone-attach method, and no pole vent for reliable, low-distortion operation.
Durable Construction
Cast alloy frame, mineral-filled polypropylene cone and rubber surround, for long-lasting performance.
| General Specifications | |
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 200- 600 W |
| Nominal Impedance (Znom) | Dual 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.02 in / 229 mm |
| Bolt Hole Circle Diameter (C) | 9.86 in / 250 mm |
| Motor Outer Diameter (D) | 6.76 in / 172 mm |
| Mounting Depth (E) | 6.89 in / 175 mm |
| Required Pole Vent Clearance | 0.50 in / 13 mm |
| Driver Displacement | 0.078 cu ft / 2.1 L |
| Net Weight | 20 lb / 9.1 kg |
| Parameters | |
| Free Air Resonance (Fs) | 30.12 Hz |
| Electrical “Q” (Qes) | 0.543 |
| Mechanical “Q” (Qms) | 9.228 |
| Total Speaker “Q” (Qts) | 0.513 |
| Equivalent Compliance (Vas) | 0.821 cu ft / 23.25 L |
| One-Way Linear Excursion (Xmax)* | 0.75 in / 19 mm |
| Reference Efficiency (no) | 0.11% |
| Efficiency (1 W / 1 m)** | 82.7 dB SPL |
| Effective Piston Area (Sd) | 49.303 sq in / 0.0318 sq m |
| DC Resistance (Re)*** | 6.452 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 10" SUB 600 RMS 4Ω
