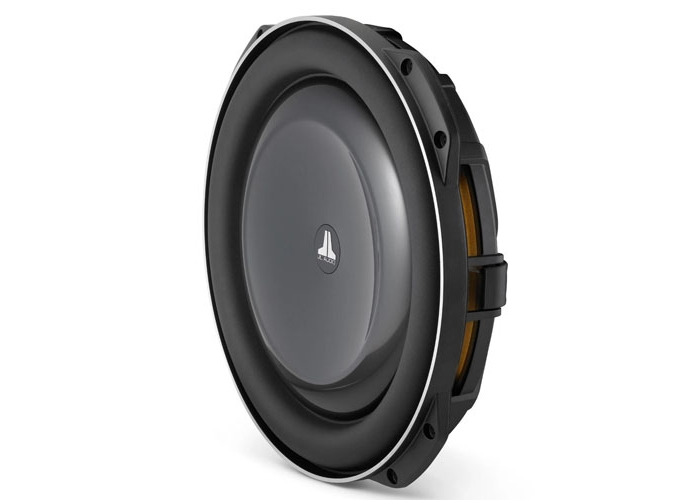

JL Audio 13TW5V2-2 13.5" 600w Car Subwoofer
JL Audio 13.5" Slim SUB 600 RMS 2Ω
( JL Audio 13TW5V22 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 13TW5v2 13.5" Subwoofer
- Shallow mount (2.625"), deep, powerful, and accurate bass
- Single 2Ω or 4Ω, optimized for small sealed enclosures (0.80 cu. ft.)
- Thin-line concentric tube technology, enhanced linear excursion
Overview
The JL Audio 13.5" Slim SUB 600 RMS 2Ω is a high-performance, slim-profile subwoofer designed for vehicles with limited installation space. Delivering 600 W RMS at 2 Ω, it produces deep, clean, and distortion-free low-frequency output. Its slim-mount design allows placement in tight enclosures without compromising performance. Built with a durable cone, rubber surround, and optimized motor structure, it ensures reliable, long-lasting operation. Suitable for sealed or ported boxes, it delivers tight, dynamic, and precise bass. Ideal for complementing midrange and high-frequency speakers, it provides a full, balanced, and immersive in-car audio experience.
Key Features:
13.5-Inch Slim Subwoofer
Delivers deep, powerful, and precise bass while fitting in compact vehicle spaces.
Power Handling
Handles 600 W RMS at 2 Ω for strong, distortion-free low-frequency output.
Durable Construction
Features a robust cone, rubber surround, and advanced motor design for long-lasting reliability.
Compact Slim Design
Ideal for shallow enclosures and tight installations without sacrificing bass performance.
Dynamic Bass
Produces tight, controlled, and impactful low-frequency response in a small package.
High-Fidelity Sound
Enhances midrange and high-frequency speakers for a full, balanced in-car audio experience.
Optimized Motor System
Ensures smooth, linear cone movement for accurate and articulate bass reproduction.
Versatile Application
Compatible with a wide range of amplifiers and vehicle interiors.
Low Distortion
Engineered for clean, precise bass even at higher listening levels.
JL Audio Engineering
Designed for premium, reliable in-car bass performance.
| General Specifications | |
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 250- 600 W |
| Nominal Impedance (Znom) | 2 Ω |
| Physical Specifications | |
| Nominal Diameter | 13.5 in / 345 mm |
| Overall Diameter (A) | A1: 14.2 in / 361mm A2: 13.0 in / 330 mm |
| Mounting Hole Diameter (B) | 12.5 in / 318 mm |
| Bolt Hole Circle Diameter (C) | 13.5 in / 343 mm |
| Motor Outer Diameter (D) | 6.75 in / 171 mm |
| Mounting Depth (E) | 2.625 in / 67 mm |
| Driver Displacement | 0.052 cu ft / 1.47 L |
| Net Weight | 20.5 lb / 9.3 kg |
| Parameters | |
| Free Air Resonance (Fs) | 25.95 Hz |
| Electrical “Q” (Qes) | 0.51 |
| Mechanical “Q” (Qms) | 10.648 |
| Total Speaker “Q” (Qts) | 0.479 |
| Equivalent Compliance (Vas) | 2.26 cu ft / 64.00 L |
| One-Way Linear Excursion (Xmax)* | 0.433 in / 11 mm |
| Reference Efficiency (no) | 0.23% |
| Efficiency (1 W / 1 m)** | 85.51 dB SPL |
| Effective Piston Area (Sd) | 98.26 sq in / 0.0634 sq m |
| DC Resistance (Re) | 2.100 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 13.5" Slim SUB 600 RMS 2Ω
Peace of Mind Purchase Guarantee
This product is supplied via JL Audio Australia and enjoys the FULL benefits of the 'Genuine JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with JL Audio Australia directly.
We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.
