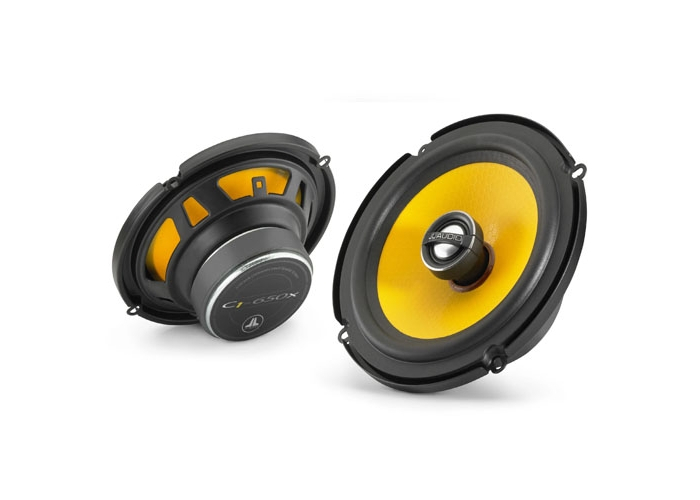

JL Audio C1-650X 6.5" Coaxial Speakers
JL Audio 6.5" 2 WAY 50 RMS 4Ω
( JL Audio C1650X)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 6.5" 2-Way Speaker
- Delivers clear, balanced audio performance
- 50 W RMS power handling at 4 Ω impedance
- Compact design suitable for various vehicle installations
Overview
The JL Audio C1 2-way component system features a 6.5-inch (165 mm) woofer and 0.75-inch (19 mm) aluminum dome tweeter, designed for easy installation behind most factory grilles. Multi-application adaptor rings allow drop-in fit for oversized 6.5" and 6.75" openings, while the tweeters include surface and flush mounts for versatile placement. The C1-650 woofer uses FEA-modeled design, a stamped steel frame, DMA-optimized motor, mineral-filled polypropylene cone, rubber surround, and Conex® spider for precise voice coil control and low distortion. Tinsel leads reduce buzzing and fatigue. Edge-driven aluminum dome tweeters provide clear, detailed highs, delivering premium sound performance typically found in higher-end speakers.
Key Features:
2-Way Component System
Includes 6.5-inch (165 mm) woofer and 0.75-inch (19 mm) aluminum dome tweeter for full-range audio performance.
Multi-Application Adaptor Rings
C1-650 woofers include rings for drop-in installation in oversized 6.5" and 6.75" openings; fits many 6" locations without rings.
Versatile Tweeter Mounting
Surface and flush mounts included for flexible installation options.
DMA-Optimized Motor System
Ensures low distortion and smooth, dynamic bass performance.
Durable Woofer Construction
Mineral-filled, injection-molded polypropylene cone with rubber surround and stamped steel frame for reliability.
Precision Voice Coil Control
Flat Conex® spider and carefully routed tinsel leads reduce fatigue and buzzing.
Edge-Driven Aluminum Dome Tweeter
Delivers clear, detailed high-frequency sound superior to competitors.
High-Fidelity Performance
FEA-modeled woofer design provides loud, dynamic sound with low distortion.
Easy Integration
Designed to fit behind most factory grilles for seamless installation.
Premium Materials
Features components and design normally found in higher-end loudspeakers.
| General Specifications | |
| Continuous Power Handling (RMS) | 50 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 48 Hz - 24 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter* (A) | 6.25 in / 159 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | 0.72 in / 18 mm |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | 5.02 in / 128 mm |
| Mounting Depth (G) | 2.07 in / 53 mm |
|
*Does not take into account mounting tabs |
|
- 1 x JL Audio 6.5" 2 WAY 50 RMS 4Ω
