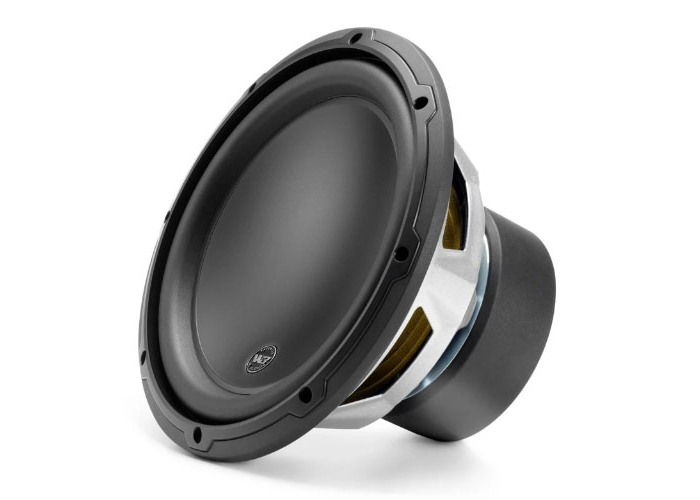

JL Audio 12W3V3-2 12" 500w Car Subwoofer
Check out the JL Audio 12W3V3-2 12" 500w Car Subwoofer's Key Features
(JL AUDIO 12W3V32)
- 12 Month JL Audio Australian Warranty
- Risk Free Purchase Guarantee (bottom of page)
- Continuous Power Handling (RMS) 500 W
- Recommended Amplifier Power (RMS) 150- 500 W
- Nominal Impedance (Znom) 2 Ω
Overview
W3v3's offer phenomenal performance at medium power levels, without requiring a large enclosure.
This newest generation of W3’s benefits from a whole suite of advanced technologies originally developed for our flagship W7’s. The DMA-optimized, long linear excursion capability minimizes distortion and increases output, while multiple patented technologies enhance performance and reliability. These advances make the v3’s the best sounding, most reliable W3’s yet.
A mineral-filled polypropylene upper cone body with a metallic JL Audio logo medallion provide a simple, classy look. A removable (and customizable) mounting flange trim ring receives grille-mesh inserts directly, without the need for additional grille hardware (Grille mesh inserts are sold separately).
W3v3's are built to exacting quality standards in our Miramar, Florida factory with global components and are offered in five sizes, ranging from 6.5-inch to 13.5-inch nominal diameters.
W3v3 12-inch Subwoofer (500 W, 2 Ω)
This powerhouse 12-inch driver delivers potent performance and world-class sound quality in medium power applications. Several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 12W3v3 to enhance linearity and reliability.
The 12W3v3-2 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a compact 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.
| General Specifications | |
| Continuous Power Handling (RMS) | 500 W |
| Recommended Amplifier Power (RMS) | 150- 500 W |
| Nominal Impedance (Znom) | 2 Ω |
| Physical Specifications | |
| Nominal Diameter | 12.0 in / 300 mm |
| Overall Diameter (A) | 12.5 in / 318 mm |
| Mounting Hole Diameter (B) | 11.0625 in / 281 mm |
| Bolt Hole Circle Diameter (C) | 11.7 in / 297 mm |
| Motor Outer Diameter (D) | 5.5 in / 140 mm |
| Mounting Depth (E) | 6.65 in / 169 mm |
| Driver Displacement | 0.071 cu ft / 2.01 L |
| Net Weight | 14.50 lb / 6.58 kg |
| Parameters | |
| Free Air Resonance (Fs) | 27.97 Hz |
| Electrical “Q” (Qes) | 0.534 |
| Mechanical “Q” (Qms) | 7.678 |
| Total Speaker “Q” (Qts) | 0.5 |
| Equivalent Compliance (Vas) | 2.806 cu ft / 79.47 L |
| One-Way Linear Excursion (Xmax)* | 0.510 in / 13.0 mm |
| Reference Efficiency (no) | 0.31% |
| Efficiency (1 W / 1 m)** | 87.15 dB SPL |
| Effective Piston Area (Sd) | 80.600 sq in / 0.0520 sq m |
| DC Resistance (Re) | 1.658 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
