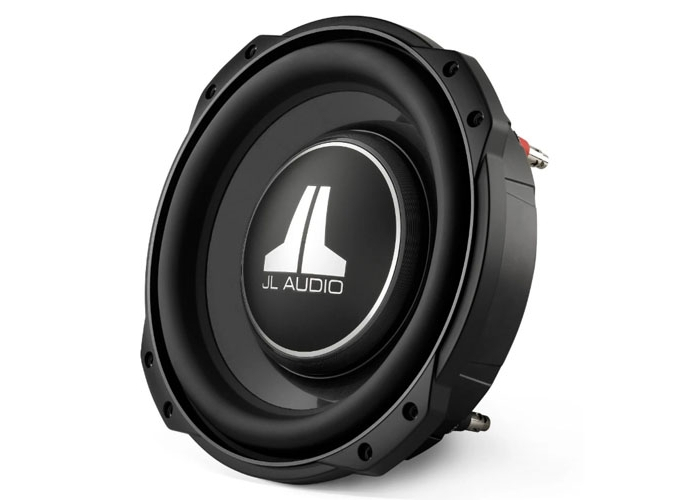

JL Audio 12TW3-D4 12" 400w Car Subwoofer
JL Audio 12" Slim SUB 400 RMS 4Ω
( JL Audio 12TW3D4 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 12" Slim Subwoofer
- 400W RMS at 4Ω
- Deep, tight bass
- Ultra-shallow design
Overview
The JL Audio 12" Slim Subwoofer (400W RMS, 4Ω) combines exceptional bass performance with a compact, shallow-mount design. Built on JL’s patented Thin-Line concentric tube technology, it delivers deep, accurate, and powerful bass while maintaining minimal mounting depth. Its DMA-optimized motor system ensures long, linear excursion with low distortion, providing clean, dynamic sound even in tight spaces. Optimized for small sealed enclosures, it features a durable cast alloy frame, rubber surround, and injection-molded mica-filled polypropylene cone. Precision-built in JL Audio’s Miramar, Florida factory, the 12TW3 offers world-class performance, reliability, and installation flexibility for depth-challenged vehicles and compact audio systems.
Key Features:
12-Inch Slim Subwoofer
Delivers deep, powerful, and accurate bass from an ultra-shallow design ideal for space-limited systems.
Power Handling
Rated 400 W RMS at 4 Ω (dual 4 Ω voice coils), providing high-output, clean performance with flexible wiring options.
Thin-Line & Concentric Tube Technology
Built on JL Audio’s Thin-Line platform with a concentric-tube cone structure that compresses depth while supporting long linear excursion.
Very Shallow Mounting Depth
Designed for ultra-shallow installations (≈3.25–3.50 inches), permitting mounting close to enclosure rear walls and tight factory locations.
High Excursion Capability
Very long linear excursion (0.60 in / 15.2 mm one-way) for increased output and dynamic bass from extremely small enclosures.
Optimized Motor & Design
DMA-optimized motor designs, patented floating-cone-attach method, and no pole vent for reliable, low-distortion operation.
Durable Construction
Cast alloy frame, injection-molded mica-filled polypropylene cone, rubber surround, and aluminum-alloy dust/rear caps for long-lasting performance.
Small Enclosure Friendly
Very small sealed enclosure requirements and excellent performance in compact sealed or ported installs—ideal for depth-challenged vehicles.
Precision-Built in USA
Precision-built at JL Audio’s Miramar, Florida factory using global components for consistent quality and performance.
| General Specifications | |
| Continuous Power Handling (RMS) | 400 W |
| Recommended Amplifier Power (RMS) | 200- 400 W |
| Nominal Impedance (Znom) | Dual 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 12 in / 300 mm |
| Overall Diameter (A) | A1: 13.2 in / 335 mm A2: 12.5 in / 318 mm |
| Mounting Hole Diameter (B) | 11.625 in / 295 mm |
| Bolt Hole Circle Diameter (C) | 12.5 in / 318 mm |
| Motor Outer Diameter (D) | 6.125 in / 156 mm |
| Mounting Depth (E) | 3.5 in / 89 mm |
| Driver Displacement | 0.029 cu ft / 0.82 L |
| Net Weight | 14.9 lb / 6.8 kg |
| Parameters | |
| Free Air Resonance (Fs) | 26.46 Hz |
| Electrical “Q” (Qes) | 0.558 |
| Mechanical “Q” (Qms) | 10.766 |
| Total Speaker “Q” (Qts) | 0.531 |
| Equivalent Compliance (Vas) | 1.72 cu ft / 48.73 L |
| One-Way Linear Excursion (Xmax)* | 0.6 in / 15.2 mm |
| Reference Efficiency (no) | |
| Efficiency (1 W / 1 m)** | 84.11 dB SPL |
| Effective Piston Area (Sd) | 83.517 sq in / 0.0539 sq m |
| DC Resistance (Re)*** | 9.280 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 12" Slim SUB 400 RMS 4Ω
