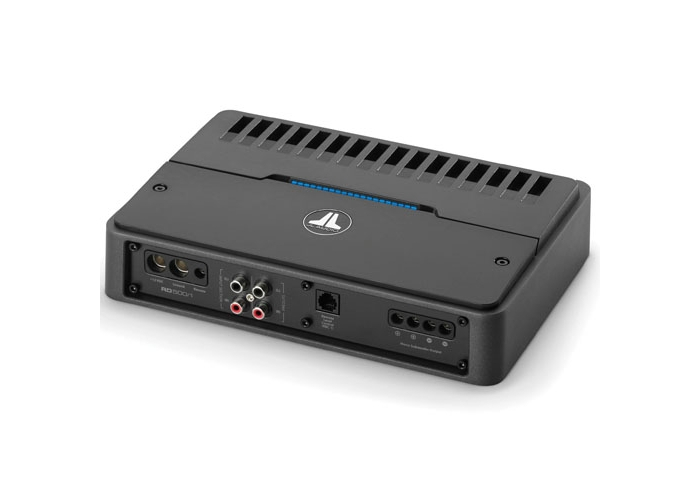

JL Audio RD500/1 Monoblock Class D Subwoofer Amplifier
JL Audio 1 x 500 RMS 4Ω
( JL Audio RD5001)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio JD500/1 Mono Amplifier
- 500W x 1 @ 2Ω / 250W x 1 @ 4Ω NexD™ Class D power
- Includes low-pass filter (50–500 Hz), bass boost EQ & LED clipping indicator
- Compact, durable extruded aluminum chassis with optional RBC-1 remote control
Overview
The JL Audio 1 x 500 RMS 4Ω monoblock amplifier delivers clean, efficient power for subwoofers, offering 500 watts at 2Ω or 250 watts at 4Ω. Utilizing JL Audio’s exclusive NexD™ Class D switching technology, it ensures high efficiency and ultra-low distortion for precise, controlled bass output. Designed with practicality in mind, it features a 12 dB/octave low-pass filter, variable bass boost EQ, and dual-range differential-balanced inputs compatible with both line- and speaker-level signals. Its onboard LED clipping indicator simplifies gain setup, while the optional RBC-1 remote control allows convenient subwoofer level adjustment from the driver’s seat.
Key Features:
Monoblock Class D Amplifier
Delivers 500W x 1 at 2Ω or 250W x 1 at 4Ω (14.4V), providing clean, powerful bass performance for subwoofer applications.
Advanced NexD™ Switching Technology
Employs JL Audio’s proprietary NexD™ Class D design for exceptional efficiency, reduced distortion, and superior audio clarity.
Comprehensive Signal Processing
Features a 12 dB/octave low-pass filter (50–500 Hz), variable bass boost EQ, and dual-range differential-balanced inputs for flexible tuning.
Smart Control & Setup Features
Equipped with an LED clipping indicator for precise gain setting, automatic turn-on (signal or DC-offset sensing), and preamp outputs for system expansion.
Durable & Compact Design
Built with an extruded aluminum chassis for effective heat dissipation and long-term reliability, compatible with optional RBC-1 remote level control.
| Rated Continuous (RMS) Power @ 14.4 V | |
| @ 4 Ω | 250 W RMS x 1 |
| @ 3 Ω | 350 W RMS x 1 |
| @ 2 Ω | 500 W RMS x 1 |
| @ 1.5 Ω | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 Ω | 225 W RMS x 1 |
| @ 3 Ω | 300 W RMS x 1 |
| @ 2 Ω | 400 W RMS x 1 |
| @ 1.5 Ω | N/A |
| General Specifications | |
| Frequency Response | 7 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >60 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 50 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | No |
| Filter Defeat Function | No |
| Infrasonic Filter | No |
| Bass Boost EQ | Yes |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
| Physical Specifications | |
| Height (H) | 2.13 in / 54 mm |
| Width (W) | 9.78 in / 248 mm |
| Depth (D) | 6.96 in / 177 mm |
| Net Weight |
- 1 x JL Audio 1 x 500 RMS 4Ω
