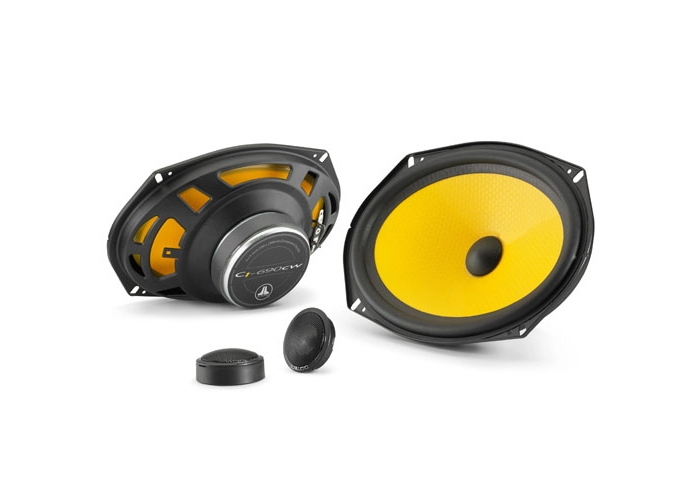

JL Audio C1-690 6 x 9" 2 - Way Component Speakers
JL Audio 6x9" SPLIT 60 RMS 4Ω
( JL Audio C1690)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio C1-690x 6x9" Component Speaker
- Polypropylene woofer with aluminum dome tweeter
- Low-distortion, dynamic sound with DMA-optimized motor
- Includes spacer rings and high-pass filter for easy install
Overview
The JL Audio 6x9" Split Speakers deliver outstanding sound clarity and dynamic performance with 60 watts RMS power handling at 4 ohms. Designed for both precision and punch, these component speakers produce clean highs, rich mids, and strong midbass, ideal for detailed music reproduction. Featuring separate tweeters for crisp high-frequency response and efficient crossovers for balanced sound distribution, they bring studio-quality performance to your car audio system. Built with durable materials and advanced acoustic engineering, JL Audio’s 6x9" splits ensure long-lasting reliability and superior sound accuracy, making them an excellent upgrade for true music enthusiasts seeking premium in-car audio experience.
Key Features:
6x9" SPLIT Speaker System
Delivers powerful, clear, and detailed sound with dynamic bass and crisp highs.
Power Handling
Supports 60 W RMS at 4Ω for clean, distortion-free performance across all frequencies.
High-Fidelity Design
Engineered with precision components for accurate midrange and smooth treble response.
Optimized Efficiency
Ensures maximum output with minimal power loss, ideal for high-quality audio setups.
4-Ohm Configuration
Compatible with most amplifiers for stable, efficient power delivery.
Durable Construction
Built from premium materials for long-lasting performance and reliability in any environment.
Versatile Installation
Designed for easy fitment in a variety of vehicles, maintaining factory-style appearance.
Balanced Sound Output
Produces rich midbass, smooth highs, and consistent clarity at all volume levels.
| General Specifications | |
| Continuous Power Handling (RMS) | 60 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 100 W / Ch. |
| System Efficiency | 89.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 39 Hz - 22 KHz ± 3 dB |
| Woofer Physical Specifications | |
| Frame Outer Diameter* (A) | 6.38 x 9.33 in / 162 x 237 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 3.54 in / 90 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 2.75 in / 70 mm |
|
*Does not take into account mounting tabs |
|
| Tweeter Physical Specifications | |
| Flush Mount Fixture Diameter (A1) | 1.97 in / 50 mm |
| Surface Mount Fixture Diameter (A2) | 2.01 in / 51 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.75 in / 45 mm |
| Flush Mount Mounting Depth (C) | 0.40 in / 10 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.32 in / 8 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.87 in / 22 mm |
| Crossover Physical Specifications | |
| Depth (D) | 1.34 in / 34 mm |
| Height (H) | 0.90 in / 23 mm |
| Width (W) | 1.96 in / 50 mm |
- 1 x JL Audio 4" 2 WAY 35 RMS 4Ω
