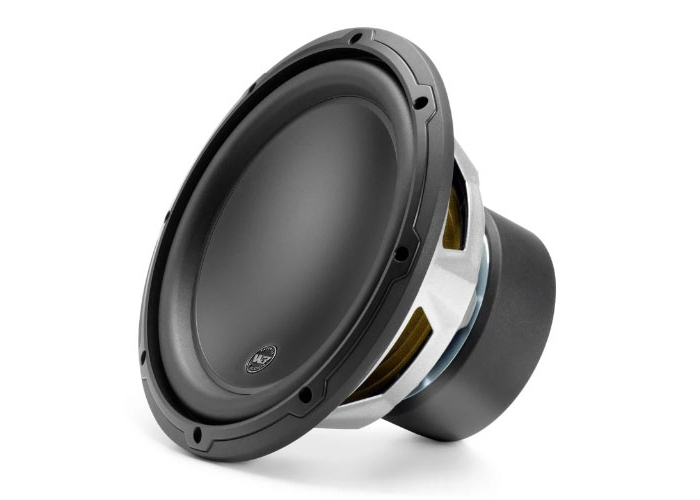

JL Audio 12W3V3-4 12" 500w Car Subwoofer
JL Audio 12" SUB 500 RMS 4Ω
( JL Audio 12W3V34 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- KICKER 2021 CompR 12" Subwoofer
- Powerful, deep bass with sleek black design
- 4Ω dual voice coil, sealed or ported use
- SoloKon™ + Forced Air Cooling, distortion-free
Overview
The JL Audio 12" SUB 500 RMS 4Ω is a high-performance subwoofer engineered to deliver deep, powerful, and accurate bass in automotive audio systems. With 500 W RMS power handling at 4 Ω, it produces clean, distortion-free low-frequency output even at high volumes. Its robust motor structure and premium materials ensure reliable, long-lasting performance. Optimized for medium to large enclosures, the subwoofer delivers tight, dynamic, and precise bass without sacrificing clarity. Ideal for complementing midrange and high-frequency speakers, it enhances overall sound quality, providing a full, balanced, and immersive in-car listening experience with impactful, high-fidelity low-end response.
Key Features:
12-Inch Subwoofer
Delivers deep, powerful, and accurate bass for automotive audio systems.
Power Handling
Handles 500 W RMS at 4 Ω for clean, distortion-free low-frequency output.
Robust Motor Structure
Engineered for reliable performance and maximum bass output.
Durable Construction
Built with high-quality materials to ensure long-lasting reliability.
Dynamic Bass
Provides tight, precise, and impactful low-frequency reproduction.
Enclosure Optimization
Performs exceptionally in medium to large-sized enclosures.
High-Fidelity Sound
Maintains clarity and detail while delivering strong bass performance.
Versatile Application
Compatible with various amplifier setups and vehicle interiors.
Enhanced Audio Experience
Complements midrange and high-frequency speakers for a full sound system.
JL Audio Engineering
Precision-designed for consistent, premium bass in all driving conditions.
| General Specifications | |
| Continuous Power Handling (RMS) | 500 W |
| Recommended Amplifier Power (RMS) | 150- 500 W |
| Nominal Impedance (Znom) | 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 12.0 in / 300 mm |
| Overall Diameter (A) | 12.5 in / 318 mm |
| Mounting Hole Diameter (B) | 11.0625 in / 281 mm |
| Bolt Hole Circle Diameter (C) | 11.7 in / 297 mm |
| Motor Outer Diameter (D) | 5.5 in / 140 mm |
| Mounting Depth (E) | 6.65 in / 169 mm |
| Driver Displacement | 0.071 cu ft / 2.01 L |
| Net Weight | 14.50 lb / 6.58 kg |
| Parameters | |
| Free Air Resonance (Fs) | 26.72 Hz |
| Electrical “Q” (Qes) | 0.472 |
| Mechanical “Q” (Qms) | 7.572 |
| Total Speaker “Q” (Qts) | 0.444 |
| Equivalent Compliance (Vas) | 2.844 cu ft / 80.54 L |
| One-Way Linear Excursion (Xmax)* | 0.510 in / 13.0 mm |
| Reference Efficiency (no) | 0.31% |
| Efficiency (1 W / 1 m)** | 87.15 dB SPL |
| Effective Piston Area (Sd) | 80.600 sq in / 0.0520 sq m |
| DC Resistance (Re) | 3.563 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 12" SUB 500 RMS 4Ω
