Name: JL Audio 10W3V3-2 10" 500w 2Ω Car Subwoofer
Brand: JL Audio
SKU: 10W3V32
Price: 654.41 AUD
Availability: InStock

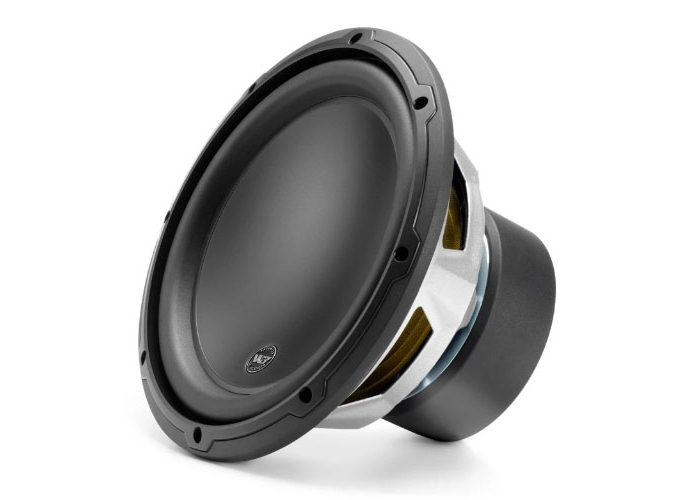

JL Audio 10W3V3-2 10" 500w 2Ω Car Subwoofer
( JL Audio 10W3V32 )

Australian JL Audio Warranty
Purchase Guarantee (see T&C's)
JL Audio 10" Sub
500W RMS at 2Ω
Deep, powerful bass
Compact enclosure design

Overview

The JL Audio 10" Subwoofer (500W RMS, 2Ω) delivers exceptional bass performance in compact to medium enclosures. Built on advanced technologies derived from JL Audio’s flagship W7 series, it features a DMA-optimized motor system for long, linear excursion with minimal distortion. Its mineral-filled polypropylene cone and metallic logo medallion ensure durability and a sleek appearance. Designed for medium-power applications, it performs best with 150W–500W amplifier power and fits sealed (0.625 cu. ft.) or ported (1.25 cu. ft.) enclosures. Precision-built in the USA, the W3v3-2 offers excellent balance, reliability, and high-quality bass for versatile audio installations.

Key Features:

10-Inch Subwoofer
Delivers powerful, precise bass with excellent linearity and transient response for medium-power systems.

Power Handling
Handles 500 W RMS at 2 Ω (recommended amplifier power 150–500 W RMS) for high-output, low-distortion performance.

W3v3 Technologies
Benefits from W7-derived advances and a DMA-optimized motor system for long, linear excursion and minimal distortion.

Optimized Enclosure
Optimized for small sealed (0.625 cu. ft. / 17.7 L) or ported (1.25 cu. ft. / 35.4 L) enclosures for compact installs.

Durable Materials
Mineral-filled polypropylene cone, removable trim ring, and refined aesthetic with a metallic JL Audio logo medallion.

Long Excursion
Designed for extended linear excursion to increase output without sacrificing control and accuracy.

Compact, Efficient Design
Excellent performance in moderate power applications without requiring a large enclosure—ideal for space-limited vehicles.

Precision-Built
Manufactured to exacting standards in JL Audio’s Miramar, Florida factory using global components for consistent quality.

View All Features

General Specifications
Continuous Power Handling (RMS)	500 W
Recommended Amplifier Power (RMS)	150- 500 W
Nominal Impedance (Znom)	2 Ω
Physical Specifications
Nominal Diameter	10.0 in / 250 mm
Overall Diameter (A)	10.5 in / 267 mm
Mounting Hole Diameter (B)	9.0625 in / 230 mm
Bolt Hole Circle Diameter (C)	9.7 in / 246.5 mm
Motor Outer Diameter (D)	5.25 in / 133 mm
Mounting Depth (E)	5.93 in / 151 mm
Driver Displacement	0.049 cu ft / 1.39 L
Net Weight	12.25 lb / 5.56 kg
Parameters
Free Air Resonance (Fs)	32.97 Hz
Electrical “Q” (Qes)	0.533
Mechanical “Q” (Qms)	7.027
Total Speaker “Q” (Qts)	0.495
Equivalent Compliance (Vas)	1.136 cu ft / 32.17 L
One-Way Linear Excursion (Xmax)*	0.550 in / 14.0 mm
Reference Efficiency (no)	0.21%
Efficiency (1 W / 1 m)**	85.37 dB SPL
Effective Piston Area (Sd)	53.475 sq in / 0.0345 sq m
DC Resistance (Re)	1.70 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”.
