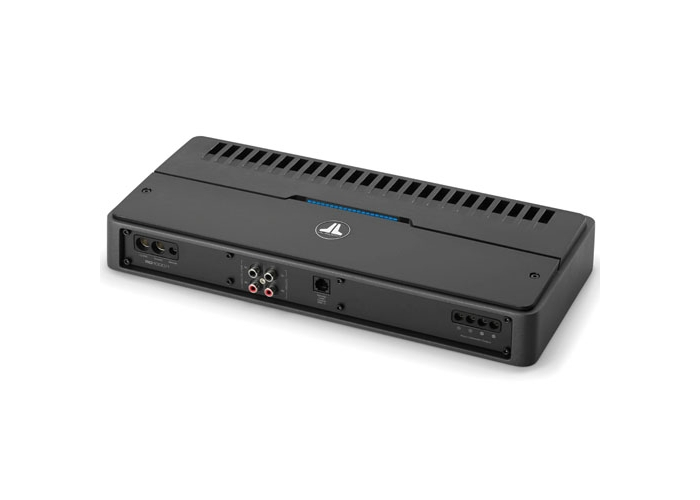

JL Audio RD1000/1 Monoblock Class D Subwoofer Amplifier
JL Audio 1 x 1000 RMS 4Ω
( JL Audio RD10001)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio MX500/4 Powersports Amp
- 70W x 4 @ 4Ω or 250W x 2 bridged NexD™ power
- Compact IPX7 cast aluminum chassis resists corrosion
- Selectable crossovers & dual-range inputs
Overview
The JL Audio JD1000/1 Class D monoblock subwoofer amplifier delivers 1000W x 1 at 2Ω or 600W x 1 at 4Ω (14.4V) with NexD™ switching technology for efficient, low-distortion power. Designed for powerful, clean bass in cost-effective systems, it features a 12dB/octave low-pass filter (50–500Hz), variable bass boost EQ, and dual-range differential-balanced inputs for line or speaker-level signals. The amplifier includes automatic turn-on sensing, preamp outputs for easy expansion, and an LED clipping indicator for precise tuning. With optional RBC-1 remote control, users can adjust subwoofer levels conveniently from the driver’s seat. Rugged aluminum construction ensures lasting reliability.
Key Features:
High-Power Monoblock Amplifier
Delivers up to 1000W x 1 at 2Ω or 600W x 1 at 4Ω (14.4V, 1% THD), ideal for driving powerful subwoofers with clean, controlled bass output.
Advanced NexD™ Class D Technology
Utilizes JL Audio’s efficient NexD™ switching design to provide high-fidelity sound with ultra-low distortion and excellent thermal performance.
Comprehensive Signal Processing
Includes 12 dB/octave low-pass filter (50–500 Hz), variable bass boost EQ, and dual-range, differential-balanced inputs for flexible system integration.
Smart Control & Protection Features
Equipped with LED clipping indicator for precise gain setup, automatic turn-on via signal or DC-offset sensing, and preamp outputs for system expansion.
Durable, Functional Design
Constructed with an extruded aluminum chassis for effective heat dissipation and long-term reliability, with optional RBC-1 remote level control compatibility.
| Rated Continuous (RMS) Power @ 14.4 V | |
| @ 4 Ω | 600 W RMS x 1 |
| @ 3 Ω | 800 W RMS x 1 |
| @ 2 Ω | 1000 W RMS x 1 |
| @ 1.5 Ω | N/A |
| Rated Continuous (RMS) Power @ 12.5 V | |
| @ 4 Ω | 500 W RMS x 1 |
| @ 3 Ω | 650 W RMS x 1 |
| @ 2 Ω | 800 W RMS x 1 |
| @ 1.5 Ω | N/A |
| General Specifications | |
| Frequency Response | 7 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power | >80 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >50 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >1000 / 50 Hz |
| Damping Factor @ 2 Ω | >500 / 50 Hz |
| THD+N @ Rated Power | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
| Signal Processing | |
| Filter Mode(s) | Low-Pass only |
| Filter Slope(s) | 12 dB/octave |
| Filter Frequency Range | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometer | No |
| Filter Defeat Function | No |
| Infrasonic Filter | No |
| Bass Boost EQ | Yes |
| Output Polarity Switch | No |
| Remote Subwoofer Level Control | Optional (RBC-1) |
| Remote Bass EQ Boost Control | No |
| Pass-Through Preamp Output | Buffered |
| Physical Specifications | |
| Height (H) | 2.13 in / 54 mm |
| Width (W) | 14.66 in / 372 mm |
| Depth (D) | 6.96 in / 177 mm |
| Net Weight |
- 1 x JL Audio 1 x 1000 RMS 4Ω
