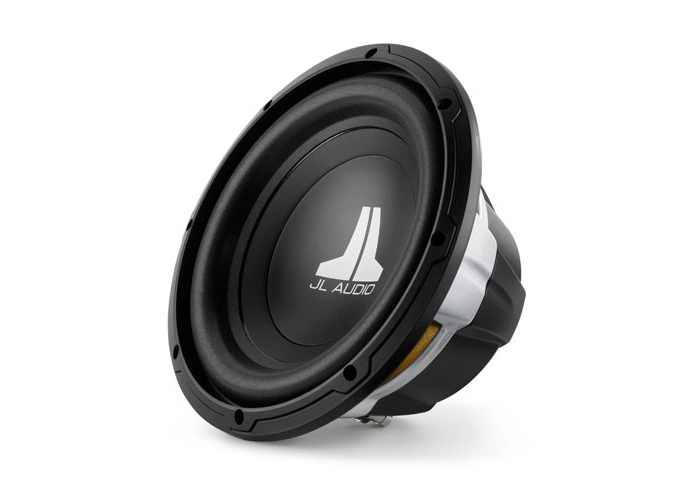

JL Audio 10W0V3-4 10" 600w Car Subwoofer
JL Audio 10" SUB 300 RMS 4Ω
( JL Audio 10W0V34 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 10" Subwoofer
- 300W RMS at 4Ω
- Deep, clean bass output
- Compact Thin-Line design
Overview
The JL Audio 10" Subwoofer (300W RMS, 4Ω) is designed to deliver deep, accurate bass performance in compact installations. Featuring JL Audio’s advanced Thin-Line technology, it offers powerful low-frequency output while maintaining a shallow mounting depth, ideal for space-limited vehicles. With a robust motor structure and durable materials, it ensures consistent, distortion-free sound even under demanding conditions. Engineered for precision, reliability, and efficiency, this 10-inch subwoofer provides premium JL Audio bass quality in a sleek, compact form factor.
Key Features:
10-Inch Slim Subwoofer
Delivers deep, tight, and accurate bass from a compact Thin-Line design ideal for space-limited installations.
Power Handling
Handles 300 W RMS at 4 Ω, providing clean, reliable output with excellent amplifier compatibility.
Thin-Line Technology
Incorporates JL Audio’s Thin-Line engineering to achieve outstanding low-frequency performance from an ultra-shallow mounting depth.
Space-Saving Design
Engineered for tight factory locations and custom shallow enclosures, fitting easily where depth is restricted.
Durable Construction
Built with high-quality materials and a robust motor structure to ensure long-lasting, distortion-free performance.
Efficient Performance
Optimized for strong output with minimal heat buildup, delivering consistent bass clarity and reliability.
Versatile Installation
Ideal for OEM-style installs, custom enclosures, or vehicles where shallow depth is required.
JL Audio Engineering
Precision-designed and tested for dependable performance, backed by JL Audio’s reputation for high-fidelity bass.
| General Specifications | |
| Continuous Power Handling (RMS) | 300 W |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Nominal Impedance (Znom) | 4 Ω |
| Nominal Impedance (Znom) | 3 Ω |
| Physical Specifications | |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.52 in / 267 mm |
| Mounting Hole Diameter (B) | 9.0625 in / 230 mm |
| Bolt Hole Circle Diameter (C) | 9.7 in / 246.5 mm |
| Motor Outer Diameter (D) | 5.05 in / 128 mm |
| Mounting Depth (E) | 4.90 in / 124 mm |
| Driver Displacement | 0.034 cu ft / 0.96 L |
| Net Weight | 7.50 lb / 3.40 kg |
| Parameters | |
| Free Air Resonance (Fs) | 32.09 Hz |
| Electrical “Q” (Qes) | 0.64 |
| Mechanical “Q” (Qms) | 10.752 |
| Total Speaker “Q” (Qts) | 0.604 |
| Equivalent Compliance (Vas) | 1.095 cu ft / 31.01 L |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11.4 mm |
| Reference Efficiency (no) | 0.15% |
| Efficiency (1 W / 1 m)** | 84.07 dB SPL |
| Effective Piston Area (Sd) | 48.909 sq in / 0.0316 sq m |
| DC Resistance (Re) | 4.280 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 10" SUB 300 RMS 4Ω
