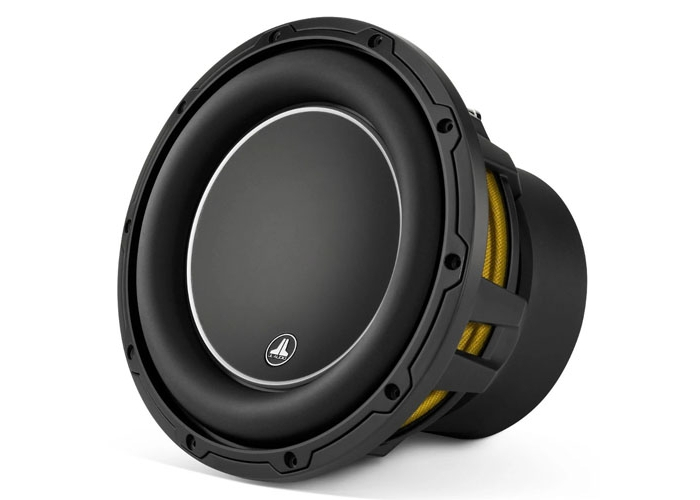

JL Audio 12W6V3-D4 12" 600w Car Subwoofer
JL Audio 12" SUB 600 RMS 4Ω
( JL Audio 12W6V3 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio W6v3 Subwoofer
- Exceptional bass from compact enclosures
- Advanced cooling, rubber surround, and large roll spider
- Dual 4 Ω voice coils with low distortion
Overview
The JL Audio 12" SUB 600 RMS 4Ω is a high-performance subwoofer engineered to deliver deep, powerful, and precise bass in automotive audio systems. With 600 W RMS power handling at 4 Ω, it produces clean, distortion-free low-frequency output even at high volumes. Its robust motor structure, durable cone, and rubber surround ensure long-lasting reliability and consistent performance. Optimized for medium to large-sized enclosures, the subwoofer delivers tight, dynamic, and articulate bass without sacrificing clarity. Ideal for complementing midrange and high-frequency speakers, it enhances overall sound quality, providing a full, balanced, and immersive in-car listening experience.
Key Features:
12-Inch Subwoofer
Delivers deep, powerful, and precise bass for automotive audio systems.
Power Handling
Handles 600 W RMS at 4 Ω for clean, distortion-free low-frequency output.
Robust Motor Structure
Engineered for maximum excursion and consistent performance under high demand.
Durable Construction
Built with high-quality materials including a strong cone and resilient surround.
Dynamic Bass
Provides tight, articulate, and impactful low-frequency reproduction.
Enclosure Optimization
Performs exceptionally in medium to large-sized sealed or ported enclosures.
High-Fidelity Sound
Maintains clarity and musicality while delivering strong bass performance.
Versatile Application
Compatible with a variety of amplifier setups and vehicle interiors.
Enhanced Audio Experience
Complements midrange and high-frequency speakers for a full, immersive sound system.
JL Audio Engineering
Precision-designed for reliable, long-lasting in-car bass performance.
| General Specifications | |
| Continuous Power Handling (RMS) | 600 W |
| Recommended Amplifier Power (RMS) | 200- 600 W |
| Nominal Impedance (Znom) | Dual 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 12.0 in / 300 mm |
| Overall Diameter (A) | 12.5 in / 318 mm |
| Mounting Hole Diameter (B) | 11.02 in / 280 mm |
| Bolt Hole Circle Diameter (C) | 11.86 in / 301 mm |
| Motor Outer Diameter (D) | 7.0 in / 178 mm |
| Mounting Depth (E) | 7.52 in / 191 mm |
| Required Pole Vent Clearance | 0.50 in / 13 mm |
| Driver Displacement | 0.105 cu ft / 297 L |
| Net Weight | 25.6 lb / 11.6 kg |
| Parameters | |
| Free Air Resonance (Fs) | 26.919 Hz |
| Electrical “Q” (Qes) | 0.487 |
| Mechanical “Q” (Qms) | 9.365 |
| Total Speaker “Q” (Qts) | 0.463 |
| Equivalent Compliance (Vas) | 1.920 cu ft / 54.37 L |
| One-Way Linear Excursion (Xmax)* | 0.75 in / 19 mm |
| Reference Efficiency (no) | 0.11% |
| Efficiency (1 W / 1 m)** | 85.4 dB SPL |
| Effective Piston Area (Sd) | 75.338 sq in / 0.0486 sq m |
| DC Resistance (Re)*** | 6.493 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 12" SUB 600 RMS 4Ω
