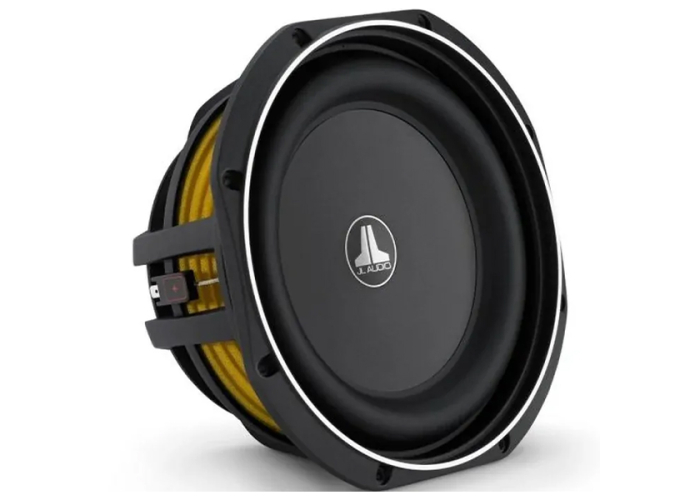

JL Audio W7 10th Anniversary Edition 10" Car Subwoofer
JL Audio 10" SUB 750 RMS 3Ω
( JL Audio 10W7AE3 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 10" W7AE
- 750W RMS at 3Ω
- Reference-grade bass
- Anniversary Edition
Overview
The JL Audio 10W7AE 10" Subwoofer delivers reference-grade bass performance with 750W RMS power handling at 3Ω. Engineered with six patented JL Audio technologies, it offers unmatched excursion, precision, and control, reproducing even the most complex bass with incredible accuracy. Optimized for both sealed (1.25 cu. ft.) and ported (1.5 cu. ft.) enclosures, it performs with power and musicality. The Anniversary Edition features satin-black powder-coated baskets, anodized trim rings, and special badging, celebrating ten years of innovation. Every component—from motor to suspension—is uniquely engineered, ensuring powerful, distortion-free performance and the ultimate in low-frequency fidelity for true audiophiles.
Key Features:
Power Handling
Rated at 750W RMS with a recommended amplifier range of 300–750W, delivering exceptional clarity, precision, and output.
Impedance
Features a 3Ω nominal impedance for efficient power transfer and optimized amplifier performance.
Frequency Response
Free Air Resonance (Fs) of 30.6 Hz ensures deep, controlled bass extension with musical accuracy.
Excursion Capability
Offers a one-way linear excursion (Xmax) of 0.9 in / 23 mm for powerful, distortion-free low frequencies.
Efficiency
Delivers 84.3 dB SPL (1W/1m) with a reference efficiency of 0.171%, ensuring dynamic sound reproduction.
Construction
Built with a 10" cone (Sd: 59.8 sq. in / 0.0386 sq. m) and rugged materials for maximum reliability and strength.
Mounting & Dimensions
Mounting depth: 8.0 in (203 mm); overall diameter: 10.5 in (267 mm); net weight: 30 lbs (13.6 kg).
Enclosure Optimization
Performs best in sealed (1.25 cu. ft.) or ported (1.5 cu. ft.) enclosures, ensuring tight, impactful bass.
Precision Engineering
Incorporates JL Audio’s advanced motor design and suspension system for superior linearity and thermal control.
| General Specifications | |
| Continuous Power Handling (RMS) | 750 |
| Recommended Amplifier Power (RMS) | 300 - 750 W |
| Nominal Impedance (Znom) | 3 Ω |
| Physical Specifications | |
| Nominal Diameter | 10.0 in / 250 mm |
| Overall Diameter (A) | 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 8.74 in / 222 mm |
| Bolt Hole Circle Diameter (C) | 9.34 in / 237 mm |
| Motor Outer Diameter (D) | 6.55 in / 166 mm |
| Mounting Depth (E) | 8.0 in / 203 mm |
| Driver Displacement | 0.09 cu ft / 2.5 L |
| Net Weight | 30 lb / 13.6 kg |
| Parameters | |
| Free Air Resonance (Fs) | 30.6 Hz |
| Electrical “Q” (Qes) | 0.578 |
| Mechanical “Q” (Qms) | 7.647 |
| Total Speaker “Q” (Qts) | 0.537 |
| Equivalent Compliance (Vas) | 1.28 cu ft / 36.1 L |
| One-Way Linear Excursion (Xmax)* | 0.9 in / 23 mm |
| Reference Efficiency (no) | 0.17% |
| Efficiency (1 W / 1 m)** | 84.3 dB SPL |
| Effective Piston Area (Sd) | 59.8 sq in / 0.0386 sq m |
| DC Resistance (Re) | 2.75 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 10" SUB 750 RMS 3Ω
