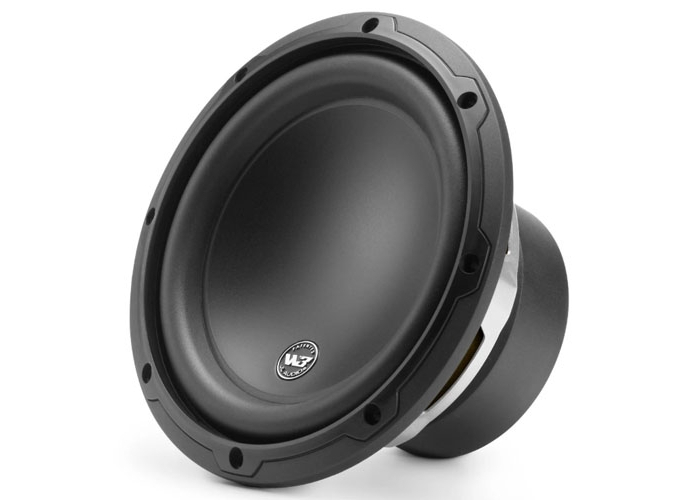

JL Audio 8W3V3-4 6.5" 250w Car Subwoofer
JL Audio 8" SUB 250 RMS 4Ω
( JL Audio 8W3V34 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 8W3v3-4 8" Component Subwoofer
- Delivers powerful, accurate bass in small enclosures
- 0.375" controlled linear excursion for precise performance
- Optimized for 75–250 W amplifiers in sealed or ported enclosures
Overview
The JL Audio 8-inch subwoofer is a high-performance driver designed to deliver deep, powerful bass in automotive audio systems. With 250 W RMS power handling at 4 Ω, it provides clean, distortion-free low-frequency output, even at higher volumes. Engineered with a robust motor structure and high-quality materials, the subwoofer ensures long-lasting reliability and consistent performance. Optimized for small to medium-sized enclosures, it delivers precise, tight, and dynamic bass without compromising clarity. Ideal for complementing midrange and high-frequency speakers, this subwoofer enhances overall sound quality, providing a full, balanced, and premium in-car audio experience for enthusiasts and casual listeners alike.
Key Features:
8-Inch Subwoofer
Delivers deep, powerful bass for automotive audio systems.
Power Handling
Handles 250 W RMS at 4 Ω for clean, distortion-free low-frequency output.
Robust Motor Structure
Engineered for consistent performance and reliable bass response.
Durable Construction
Built with high-quality materials to ensure long-lasting reliability.
Dynamic Bass
Provides precise, tight, and impactful low-frequency reproduction.
Enclosure Optimization
Performs exceptionally in small to medium-sized enclosures.
High-Fidelity Sound
Maintains clarity and detail while delivering strong bass performance.
Versatile Application
Compatible with a variety of amplifier setups and vehicle interiors.
Enhanced Audio Experience
Complements midrange and high-frequency speakers for a complete sound system.
Reliable Performance
JL Audio engineering ensures consistent, premium bass in all conditions.
| General Specifications | |
| Continuous Power Handling (RMS) | 250 W |
| Recommended Amplifier Power (RMS) | 75- 250 W |
| Nominal Impedance (Znom) | 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 8.0 in / 200 mm |
| Overall Diameter (A) | 8.54 in / 217 mm |
| Mounting Hole Diameter (B) | 7.09 in / 180 mm |
| Bolt Hole Circle Diameter (C) | 7.85 in / 199 mm |
| Motor Outer Diameter (D) | 4.75 in / 121 mm |
| Mounting Depth (E) | 4.63 in / 118 mm |
| Driver Displacement | 0.03 cu ft / 0.85 L |
| Net Weight | 8.2 lb / 3.7 kg |
| Parameters | |
| Free Air Resonance (Fs) | 35.14 Hz |
| Electrical “Q” (Qes) | 0.501 |
| Mechanical “Q” (Qms) | 7.071 |
| Total Speaker “Q” (Qts) | 0.467 |
| Equivalent Compliance (Vas) | 0.54 cu ft / 15.29 L |
| One-Way Linear Excursion (Xmax)* | 0.375 in / 10.0 mm |
| Reference Efficiency (no) | 0.13% |
| Efficiency (1 W / 1 m)** | 83.24 dB SPL |
| Effective Piston Area (Sd) | 32.02 sq in / 0.021 sq m |
| DC Resistance (Re) | 3.77 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 8" SUB 250 RMS 4Ω
