JL Audio C1-690X 6 x 9" 225W 2-Way Car Speakers

JL Audio 6x9" 2 WAY 60 RMS 4Ω
( JL Audio C1690X)

• Australian JL Audio Warranty
• Purchase Guarantee (see T&C's)
• JL Audio C1-690 6x9" 2-Way Component Speakers
• Polypropylene woofer with 1" aluminum dome tweeter
• DMA-optimized motor for clear, dynamic sound
• Includes spacer rings and versatile tweeter mounts

Overview

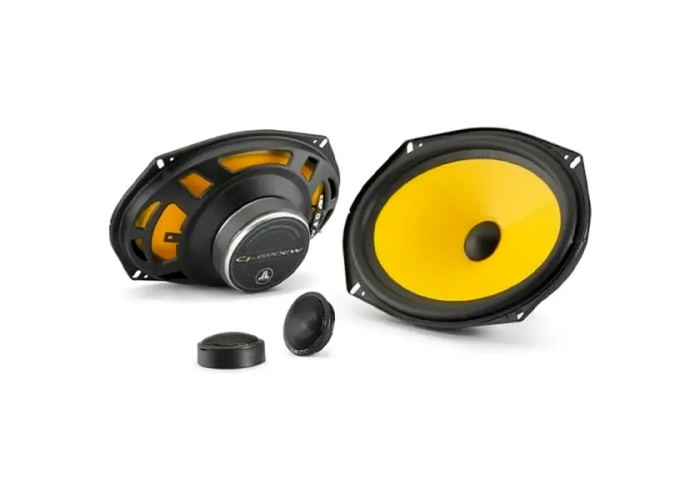

The JL Audio C1-690 is a 6x9-inch 2-way component speaker system featuring a polypropylene woofer and 1-inch edge-driven aluminum dome tweeter. Designed for seamless fit behind factory grilles, it includes spacer/adaptor rings and surface or flush mounts for versatile installation. The woofer employs FEA-modeled design, a DMA-optimized motor, rubber surround, and a flat Conex spider to ensure precise motion and low distortion. The tweeter provides superior high-frequency clarity with silk surround damping, Ferrofluid, and neodymium magnets. An in-line 2nd-order high-pass filter with Advanced Tweeter Protection enhances smoothness and power handling, delivering dynamic, clean, and high-fidelity sound comparable to premium speakers.

Key Features:

Continuous Power Handling
Supports 60 W RMS for consistent, reliable performance.

Recommended Amplifier Range
Optimized for 10–100 W RMS per channel amplifiers.

High Efficiency
91.5 dB @ 1 W / 1 m ensures strong output with moderate power.

Nominal Impedance
4 Ω system impedance for flexible amplifier compatibility.

Wide Frequency Response
Covers 39 Hz – 22 kHz (±3 dB) for full-range audio clarity.

Compact Design
Frame: 6.38 x 9.33 in; motor: 3.54 in; mounting depth: 2.75 in.

Versatile Tweeter Mounting
Flush (0.32 in) and surface (0.87 in) mounts for installation flexibility.

Precise Flush Mount
Tweeter flush mount depth: 0.40 in; fixture diameter: 1.97 in.

Surface Mount Tweeter
Fixture diameter: 2.01 in; frontal protrusion: 0.87 in for easy positioning.

Compact Tweeter Dimensions
Depth: 1.34 in, height: 0.90 in, width: 1.96 in for seamless integration.

• 1 x JL Audio 4" 2 WAY 35 RMS 4Ω
