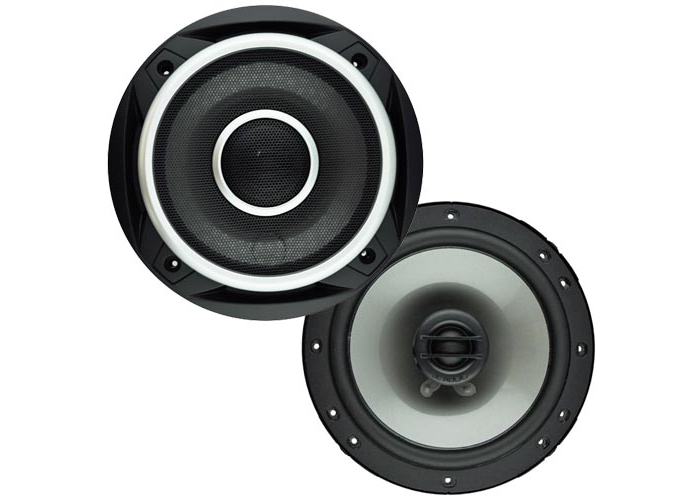

JL Audio C2-600X 6" 100w 2-Way Coaxial Car Speakers
JL Audio C2-600X 6" 100w 2-Way Coaxial Car Speakers
( JL Audio C2600X)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio C2-600X 6" 2-Way Coaxial Speakers
- 60 RMS 4Ω / 100W Peak
- Mica polypropylene woofer with 0.75" silk tweeter
- Dynamic mid-bass with long-excursion woofer
- Built-in crossover with adjustable tweeter
Overview
The JL Audio 6" Evolution C2 2-Way Coaxial Speakers deliver clean, dynamic sound with 60 W RMS power handling and 100 W peak. Featuring mica-filled polypropylene cones with butyl rubber surrounds, the 6-inch woofers provide accurate mid-bass and smooth midrange. The 3/4-inch silk dome tweeters ensure extended high-frequency response with minimal distortion, while the built-in crossover network optimizes frequency distribution. A 1-inch voice coil on a Kapton former, ferrite magnet structure, and 4-ohm impedance support efficient power handling. Sensitivity is 90.5 dB, frequency response spans 59 Hz to 22 kHz, and a compact 64 mm (2.38″) depth allows seamless vehicle integration for high-fidelity audio.
Key Features:
6" Evolution C2 2-Way Coaxial Speakers
Delivers clean, dynamic sound with accurate mid-bass and smooth highs.
Power Handling
Supports 60 W RMS and 100 W peak for reliable, distortion-free performance.
High-Frequency Clarity
3/4-inch silk dome tweeters provide extended, smooth treble with minimal harshness.
Durable Construction
Mica-filled polypropylene cones with butyl rubber surrounds and ferrite magnet structure ensure reliability.
Built-In Crossover
Optimizes frequency distribution between woofer and tweeter for balanced sound.
Adjustable Tweeter Level
Three-position tweeter attenuation allows customization of high-frequency output.
Efficient Voice Coil
1-inch Kapton former voice coil supports accurate response and power handling.
Wide Frequency Response
Covers 59 Hz to 22 kHz for full-range audio clarity.
High Sensitivity
90.5 dB sensitivity ensures strong output with moderate power.
Compact Design
64 mm (2.38″) depth allows easy integration into most vehicle locations.
| General Specifications | |
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 90.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
| Coaxial Physical Specifications | |
| Frame Outer Diameter* (A) | 6.21 in / 158 mm |
| Grille Tray Outer Diameter (B) | 6.51 in / 163 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion** (D) | N/A |
| Frontal Grille Protrusion*** (E) | 0.91 in / 23 mm |
| Mounting Hole Diameter (F) | 5.00 in / 127 mm |
| Mounting Depth (G) | 2.38 in / 64 mm |
|
*Does not take into account mounting tabs |
|
- 1 x JL Audio 6" 2 WAY 60 RMS 4Ω
