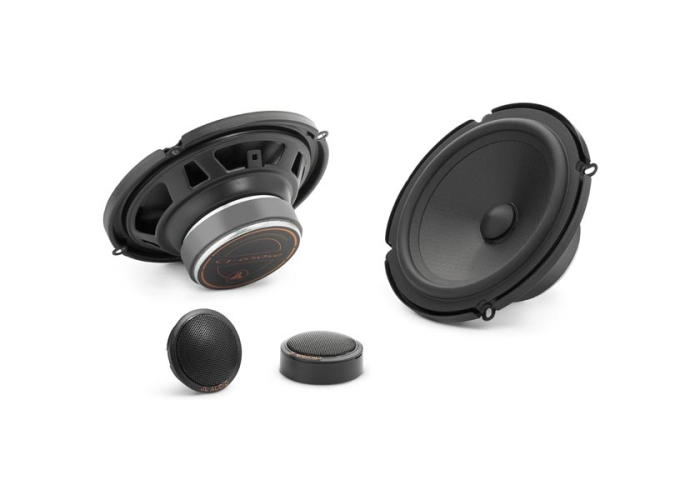

JL Audio C1-650 6.5" Split Speakers (Silk ED)
JL Audio 6.5" SPLIT 50 RMS 4Ω
( JL Audio C1650SE)
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio C1 6.5" 2-Way Component
- Polypropylene woofer with aluminum dome tweeter
- 50 W RMS at 4 Ω, low distortion
- Includes adaptor rings and versatile mounts
Overview
The JL Audio 6.5-inch SPLIT speaker is a high-performance 2-way component system designed to deliver clear, dynamic audio in automotive applications. With a 50 W RMS power handling at 4 Ω impedance, it produces balanced sound with minimal distortion. The system separates the woofer and tweeter for precise frequency response, allowing the woofer to handle low and midrange tones while the tweeter reproduces crisp, detailed highs. Its compact design enables easy installation behind most factory grilles, and the robust materials ensure durability and long-lasting performance. The SPLIT series combines efficiency, clarity, and power, providing an exceptional listening experience in a wide range of vehicles.
Key Features:
2-Way Component System
Includes 6.5-inch woofer and separate tweeter for balanced, full-range audio performance.
Power Handling
Handles 50 W RMS at 4 Ω for clear, dynamic sound with minimal distortion.
Separated Woofer & Tweeter
Woofer reproduces low/midrange tones while tweeter delivers crisp, detailed highs.
Compact Design
Easily fits behind most factory grilles for seamless installation.
Durable Construction
Robust materials ensure long-lasting reliability and performance.
High-Fidelity Sound
Delivers clear, accurate audio across a wide frequency range.
Low Distortion
Engineered for smooth, balanced sound even at higher volumes.
Versatile Application
Suitable for a variety of vehicle audio setups and configurations.
Enhanced Audio Clarity
Precision design ensures excellent midrange and treble reproduction.
Reliable Performance
JL Audio engineering provides consistent quality in all driving conditions.
| General Specifications | |
| Continuous Power Handling (RMS) | 50 W |
| Peak Music Power | 225 W |
| Recommended Amplifier Power (RMS) | 10 - 75 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
| Woofer Physical Specifications | |
| Frame Outer Diameter* (A) | 6.5 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.84 in / 174 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion** (E) | 0.85 in / 22 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.44 in / 62 mm |
|
*Does not take into account mounting tabs |
|
| Tweeter Physical Specifications | |
| Flush Mount Fixture Diameter (A1) | 1.87 in / 48 mm |
| Surface Mount Fixture Diameter (A2) | 1.69 in / 43 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.625 in / 41 mm |
| Flush Mount Mounting Depth (C) | 0.76 in / 19 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.29 in / 7 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.92 in / 23 mm |
| Crossover Physical Specifications | |
| Width (W) | 1.96 in / 50 mm |
| Height (H) | 0.90 in / 23 mm |
| Depth (D) | 1.34 in / 34 mm |
- 1 x JL Audio 6.5" SPLIT 50 RMS 4Ω
Peace of Mind Purchase Guarantee
This product is supplied via JL Audio Australia and enjoys the FULL benefits of the 'Genuine JL Audio Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with JL Audio Australia directly.
We are a FULLY AUTHORISED Australian retailer for JL Audio Australia.
