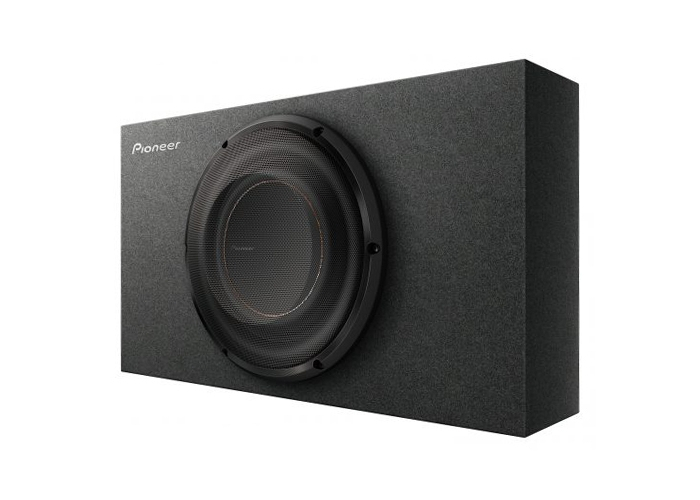

Pioneer TS-D10LB 10" 1300W Subwoofer Enclosed Box

Pioneer TS-D10LB 10" Shallow Mount Subwoofer Enclosed Box

(PIONEER TS-D10LB)

We Think YOU Should Know

• 12 Month Pioneer Australian Warranty
• Risk Free Purchase Guarantee (bottom of page)
• 10˝ Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP) cone construction
• Sealed enclosure design
• Butyl rubber surround for strength and linearity during high excursion
• Includes protective subwoofer grill
• Dimensions: 530mm (W) x 300mm (T) x 150mm (D)

OVERVIEW

Keeping the compact design without sacrificing the desired audio quality has been achieved by utilizing specifically selected high quality materials and the latest design technology. The design and size allows a multitude of installation opportunities with the added benefit of protecting the subwoofer with the inclusion of the Pioneer subwoofer grill.

Features

ARAMID FIBER INTERLACED INJECTION MOLDED POLYPROPYLENE (IMPP)

Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a subwoofer cone – with low mass and high damping, PP cones offer good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting Aramid Fiber Interlaced IMPP subwoofer cone is incredibly strong and low mass with high rigidity and superior strength to produce deep, powerful and undistorted bass.

BUTYL RUBBER SURROUND

Made of a specially blended, highly durable and moisture-resistant compound, butyl rubber keeps the cone moving in a linear direction, seals the cone to the basket and quickly dampens cone vibration once the signal has changed or stopped. This results in less distortion and superior frequency response.

LARGE DIAMETER VOICE COIL AND DOUBLE STACKED MAGNETS

A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size. The D subwoofer uses an oversized 4-layer voice coil and high energy double stacked magnets to increase the overall power handling and SPL output with no sacrifice in sound quality.

Pioneer TS-D10LB 10" 1300W Subwoofer Enclosed Box
