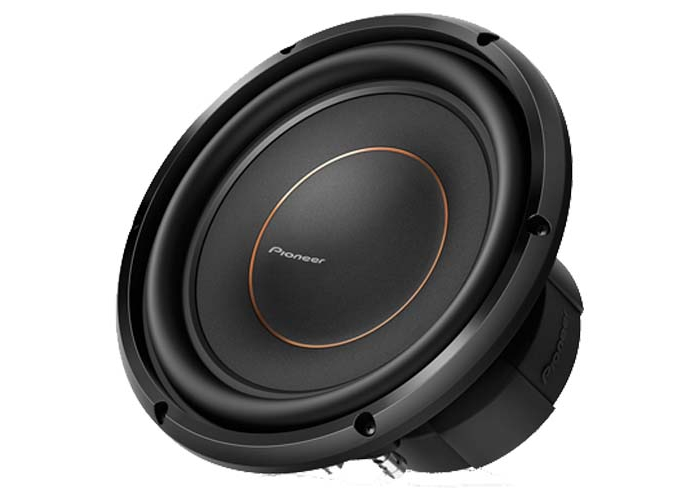

Pioneer TS-D10D4 10” Dual Voice Coil Subwoofer

Pioneer TS-D10D4 10" Dual Voice Coil Subwoofer
(Pioneer TS-D10D4)

We Think You Should Know

• Australian Pioneer Warranty
• Purchase Guarantee (see T&C's)
• 1500W Peak Power
• 500W RMS Power
• Aramid Fibre IMPP Cone
• Dual 4Ω Voice Coil
• Sensitivity: 74 dB / W / m
• Freq Range: 20 Hz - 6.6 kHz
• Mounting Depth: 140mm

Overview

Too much isn’t enough, embrace the bass. The Pioneer TS-D10D4 subwoofer is a culmination of Pioneer technologies that produce thick, deep, powerful and accurate bass that makes listening to your favourite music energetic, fun and engaging.

Combining bass quality and bass quantity with high power, plus installation flexibility that provides high performance in both acoustic suspension (sealed) and bass reflex (ported) enclosures, the D subwoofer is the ultimate all-around performer.

Slam, attack, power. Don’t just listen to your music, feel it.

Features

Pioneer TSD10D4 - Butyl Rubber Surround
Made of a specially blended, highly durable and moisture-resistant compound, butyl rubber keeps the cone moving in a linear direction, seals the cone to the basket and quickly dampens cone vibration once the signal has changed or stopped. This results in less distortion and superior frequency response.

Pioneer TSD10D4 - Aramid Fibre Interlaced Injection Molded Polypropylene (IMPP)
Polypropylene (PP) is a tough thermoplastic resin that is an ideal material for a subwoofer cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, aramid fibres are blended into the polypropylene resin during the injection moulding process. The resulting aramid fibre interlaced IMPP subwoofer cone is incredibly strong and low mass with high rigidity and superior strength to produce deep, powerful and undistorted bass.

Pioneer TSD10D4 - Large Diameter Voice Coil and Double Stacked Magnets
A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size. The D subwoofer uses an oversized 4-layer voice coil and high energy double stacked magnets to increase the overall power handling and SPL output with no sacrifice in sound quality.

Pioneer Electronics

Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.

• 1 x TS-D10D4 10” Dual Voice Coil Subwoofer
• Installation Accessories
• Users' Manuals
