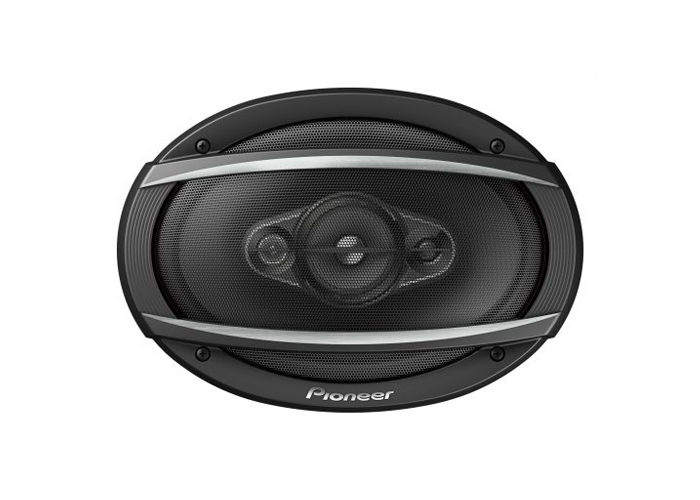

Pioneer TS-A6960F 6x9" 4-Way Speakers
Pioneer TS-A6960F 6x9" 4-Way Speakers
(Pioneer TS-A6960F)
We Think You Should Know
- Australian Pioneer Warranty
- Purchase Guarantee (see T&C's)
- 6x9" 4-Way Speakers
- 450W Maximum Power
- 90W RMS / 4Ω
- Carbon & Mica Reinforced IMPP Cone
- Pioneer “Open & Smooth”™ Sound Concept
- Speaker Adapters Included
Overview
Pioneer’s Pioneer TS-A6960F speakers offer Carbon & Mica reinforced IMPP cones. This combined with a new magnetic circuit and long symmetrical voice coil makes both rich deep bass and low distortion possible.
Newly designed Pioneer TS-A6960F speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker's face, giving a new clean look and reducing the risk of shorts and signal noise.
Features
IMPP Cone Construction
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer's Sound Concept "Open & Smooth"™
The Pioneer "Open & Smooth"™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
Pioneer Electronics
Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.
| Size | 6x9" |
|---|---|
| Design | 6x9" 4-Way Coaxial System |
| Tweeter Design | 18mm hard dome |
| Tweeter Composition | Polyethylene Terephthalate (PET) |
| Woofer Composition | Carbon and mica reinforced IMPP |
| Woofer Surround | Elastic polymer |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
| INSTALLATION SPECIFICATION | |
| Max. Music Power (Nominal) | 450W MAX (90W Nom) |
| Frequency Response | 35Hz - 24kHz (-20dB) |
| Sensitivity (1W/1 m) | 86 dB |
| Impedance | 4Ω |
| Mounting Depth | 72mm |
| Cut-Out Dimensions | 153mm x 222mm |
| Grills Included | |
- 2 x Pioneer TS-A6960F 6 x 9" 4-Way Speaker
- Wire Harness
- Users' Manuals
