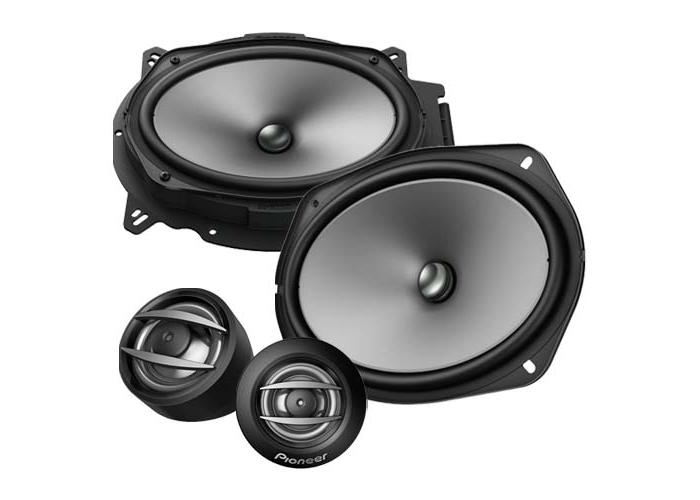

Pioneer TS-A692C 6x9" 2-Way Component Speakers
Pioneer TS-A692C 6 x 9" 2-Way Component Speakers
(Pioneer TS-A692C)
We Think You Should Know
- Australian Pioneer Warranty
- Purchase Guarantee (see T&C's)
- 6x9" 2-Way Component Speakers
- 450W Maximum Power
- 100W RMS / 4Ω
- Carbon & Mica reinforced IMPP Cone
- Pioneer “Open & Smooth”™ Sound Concept
- Speaker Adapters Included
Overview
Pioneer's next generation of TS-A series speakers, such as the Pioneer TS-A692C, offer Carbon & Mica reinforced IMPP cones for richer, deeper bass response. The new tweeter contributes to clearer high frequencies sound reproduction, significantly outperforming OEM systems.
The long symmetrical voice coil and suspensions are well engineered for high linearity, more impactful sound and richer bass with low distortion.
The Pioneer TS-A692C comes with newly designed adapters that give you more installation options and provide a high dampening to improve sound quality.
Features
Easy Installation
Included with the component system are 6″x9″ multi-fit installation adaptors that expand flexibility and improve acoustic performance and also included are tweeter mounts for surface mounting, flush mounting and specially designed multi-fit adaptors for mounting in original equipment (OE) tweeter locations. With the integrated/in-line crossover network, you increase installation flexibility without the need for an outboard module.
IMPP Cone Construction
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer’s Sound Concept “Open & Smooth”™
The Pioneer “Open & Smooth”™ sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
Pioneer Electronics
Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.
| GENERAL | |
| Size | 6x9" |
|---|---|
| Design | 6x9" 2-Way Separate System |
| Tweeter Design | 20mm |
| Tweeter Composition | Polyimide |
| Tweeter Magnet Composition | Neodymium |
| Woofer Composition | Carbon and mica reinforced IMPP |
| Woofer Surround | Elastic polymer |
| Woofer Magnet Composition | Ferrite |
| Warranty | 1 Year |
| INSTALLATION SPECIFICATION | |
| Max. Music Power (Nominal) | 450W MAX (100W Nom) |
| Frequency Response | 33Hz - 49kHz (-20dB) |
| Sensitivity (1W/1 m) | 87 dB |
| Impedance | 4Ω |
| Crossover Frequency | 6400Hz |
| Mounting Depth | 72mm |
| Cut-Out Dimensions | 153mm x 222mm |
| Grills Included | |
- 2 x Pioneer TS-A692C 6 x 9" 2-Way Speakers
- 2 x Tweeters
- 2 x Adaptor Plates
