Sky-Watcher Quattro 200Q & WAVE 100i & Tripod

Sky-Watcher Quattro 200Q & WAVE 100i & Tripod
( Sky-Watcher SWWAVE100200Q)

• Australian Sky-Watcher Warranty
• Purchase Guarantee (see T&C's)
• Wave 100i Mount
• Quattro 200 OTA
• Extension Tube
• Dual Saddle

Overview

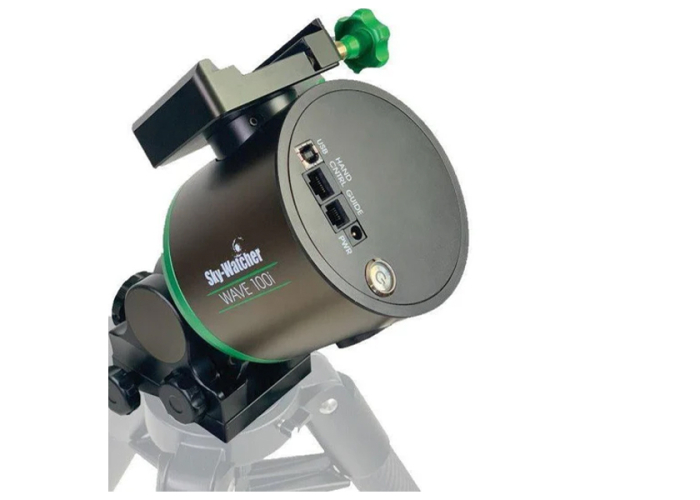

The Sky-Watcher Quattro 200Q kit features the Wave 100i strain wave (harmonic) mount, a carbon fiber tripod, an extension tube, and the 200/800 Quattro 200 Photo Newtonian OTA with a dual-speed focuser. The Wave 100i mount weighs only 4.3 kg yet supports a native payload of 10 kg without a counterweight and 15 kg with one. It offers dual saddle capability, a 300:1 transmission ratio, and a maximum slew rate of 2400x (10° per second). Designed for sidereal, lunar, and solar tracking, it operates on 12 V DC, supports AZ/EQ modes, has a working latitude of 0°–90°, and comes with a five-year Sky-Watcher warranty. Its harmonic gearing ensures precise, minimal-backlash tracking for astrophotography while remaining compact and portable.

Key Features:

EQ & AZ Working Modes
Operates in both equatorial (EQ) and alt-azimuth (AZ) configurations for versatile observing and imaging.

Lightweight & High Payload
Mount weight 4.3 kg; supports 10 kg payload without counterweight and 15 kg with counterweight (dual-saddle capable).

Precision Harmonic Drive
Stepper motor + belt drive with harmonic reducer; total transmission ratio 300:1. RA harmonic spec 17–100; DEC harmonic spec 14–100.

Latitude & Balance
Continuous latitude adjustment from 0°–90° and RA clutch-lock for easy balancing when fitting counterweights.

Connectivity & Power
Built-in Wi-Fi and Bluetooth. Operates on 12V DC; standby current 0.4A, Go-To current 2A.

Performance
Maximum slew rate 2400× (10°/s) with accurate sidereal, solar, and lunar tracking modes.

Safety & Convenience
RA power-off brake, RA/DEC home-limit functions, cable management, and red LED illumination for latitude scales and bubble level.

Skywatcher Telescopes - The Company

In late 1999 the Skywatcher brand was born in Canada. Today Skywatcher is recognised as being one of the world's largest telescope suppliers. With a mission statement like the following, it is no wonder they are one of the world's biggest brands for night gazing.

'We believe that beginners’ first scopes should be not only affordable, but also of the highest quality.  Looking through a telescope for the first time is a magical moment and we believe in magic! We're called “Sky-Watcher”: our desire is to see the world-wide community of sky watchers grow, until, one day,  every person in the world can be a part of our community!

• 1 x Sky-Watcher Quattro 200Q & WAVE 100i & Tripod
