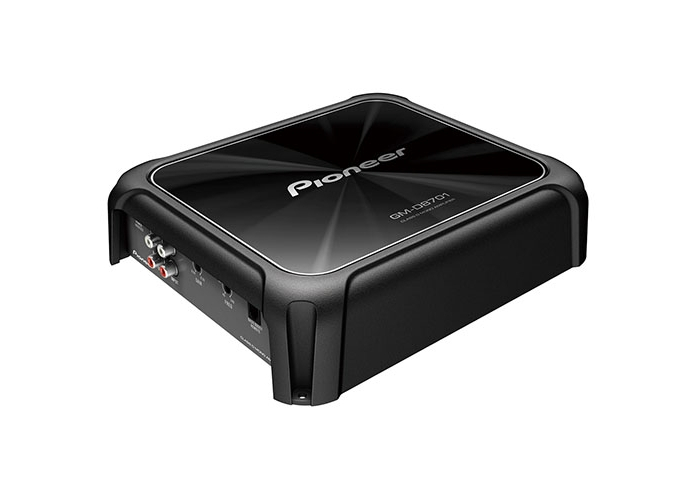

Pioneer GM-D8701 Class-D Car Mono Amp, with Bass Boost Remote

Click on above image to view full picture

  • Pioneer GM-D8701 Car Amplifier

List Price: $300.00 On Sale: $258.85 (GST Included) (You save 13.72%)

SKU: GMD8701

Availability:

$9.95 Flat Rate Generally ships out in 24 to 48 hours.

[5]
Accessories

How To Build A Bundle

The following accessories can be bundled with your purchase by checking the green ‘Include with Product’ button. You can add as many items to your order as you require and then simply ‘Add to Cart’ to complete order.

Product Info

Product Info

Check out the Pioneer GM-D8701 Mono Car Amplifier's Key Features
(Pioneer GMD8701)

  • 12 Month Pioneer Australian Warranty
  • Peace of Mind Purchase Guarantee (bottom of page)
  • Class-D Mono Block
  • Supplied with Bass Boost Remote
  • 300W @ 4Ω (continuous output)
  • 500W@ 2Ω (continuous output)
  • 800W @ 1Ω (continuous output)

Overview

An amplifier shouldn’t take up too much space, especially in your car. This Class-D amp might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output. While the New GMD-8701 replaces the GMD-8601, It brings you the all the same great features and specifications in a newly designed chassis.

Features

Big Power, Small Size
Pioneer's new extra-efficient Class-D digital amplifiers mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of installation as well as performance.

Improved Circuit Design
To prevent circuit shutdown, Pioneer's new digital amplifier circuit "Protection Control System" senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to connect multiple subwoofers to a system.

Variable Low Pass Filter
For extra flexibility, variable LPF make audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The GM-D8701 LPF is adjustable from 40 Hz to 240 Hz.

Turn Up The Bass
Every new Pioneer Class-D amplifier has a wired bass boost remote control for optimal bass level adjustment according to listening preferences and music characteristics.

Speaker Level Inputs
What, you DON'T own a Pioneer headunit? Well, we won't hold it against you. In fact we'll even help you build onto your system. The GM-D8701's speaker level inputs allow you to connect your OEM unit (or any unit that doesn't have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you've got a Pioneer amp in your vehicle.

Bass Boost Remote: Set bass levels (0-18dB) with the wired remote controller.

Variable LPF: Adjust LPF (40-240 Hz).

Multi-Block terminal: Smoothly connect up to 4 subs.

Pioneer Electronics

Pioneer is a Japanese multinational corporation founded in 1937 that specializes in digital entertainment products. It's one of the most trusted brands in practically any field of car audio. With the renowned innovation, persistence and integrity of Japanese businesses, you can expect the latest technology and the highest possible quality from Pioneer car audio products.

Peace of Mind Purchase Guarantee
This product is supplied via Pioneer Australia and enjoys the FULL benefits of the 'Genuine Pioneer Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Pioneer Australia directly.

We are a FULLY AUTHORISED Australian retailer for Pioneer Australia.

Disclaimer
Due to differing operating costs associated with selling products via different marketplaces such as eBay, Amazon or our Online Store, our pricing may vary as a result.

Tech Specs

Technical Specifications

Specifications
Power Source 14.4 V DC (10.8V To 15.1 V Allowable)
Grounding System Negative
Current Consumption 22 A (at Continuous power, 4Ω)
Avergae Current Consumption 2.4A (4Ω for one channel)
  3.6A (2Ω for one channel)
  5.7A (1Ω for one channel)
Fuse 40 A x 2
Dimnesion 252mm x 60mm x 215mm
Weight 2.7kg (no cables connected)
Maximum Power Output (peak) 600 W x 1 @ 4Ω
  1600 W x 1 @ 1Ω
Continuous Power output 300 W x 1 (at 14.4V, @ 4Ω 20 Hz to 240Hz, < 1% THD)
  500 W x 1 (at 14.4V, @ 2Ω 20 Hz to 240Hz, < 1% THD)
  800 W x 1 (at 14.4V, @ 1Ω 20 Hz to 240Hz, < 1% THD)
Load impedance 4Ω (1Ω to 8Ω Allowable)
Frequency Response 10 Hz to 240 Hz (+0dB,-3dB)
Signal-to-noise ratio 100 dB (IEC-A network)
Low Pass Filter
Cut off Frequency 40 Hz to 240 Hz
Cut off Slope -12dB
Bass Boost:
Frequency 50 Hz
Level  0 dB to 18 dB
Gain Control
RCA 200 mV to 6.5V
Speaker 0.8 V to 16V
Maximum input level / impedance
RCA 6.5 V / 25 kΩ
Speaker 16 V / 12 kΩ



Please Note: Specifications and the design are subject to change without notification

When this amplifier receives an audio signal, The Average current consumption is nearly the maximum current consumption. Use this value when working out total current consumption by multiple power amplifiers



In The Box

What's Included?

  • Pioneer GM-D8701 Mono Car Amplifier
  • Bass boost level remote control
  • Bass boost level remote control wire (5m)
  • Speaker input wire with RCA pin cord
