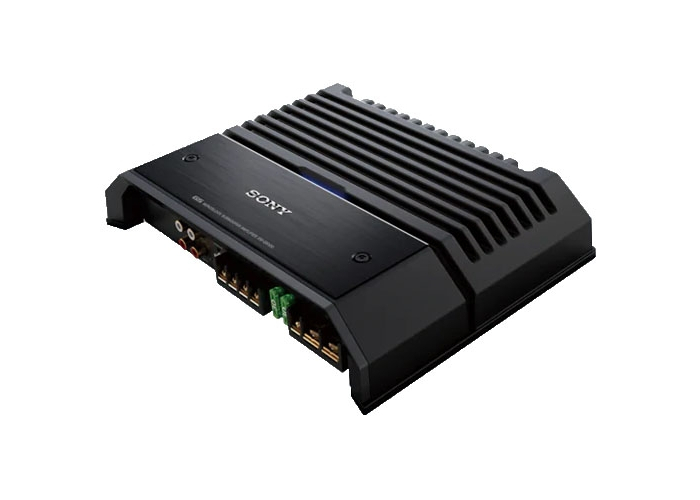

Sony XM-GS100 1-CH 1100W Class D Amplifier

Sony XM-GS100 1-CH 1100W Class D Amplifier
(Sony XMGS100)

• Australian Sony Warranty
• Purchase Guarantee (see T&Cs)
• 330W high power output
• 600W (at 4 Ohms)
• 1100W x 1 (at 2 Ohms)
• Active Thermal Control
• Dynamic Distortion Suppressor
• Low-pass filter

Overview

The Sony XM-GS100 is a high-performance mono Class D car amplifier engineered to deliver powerful, clean bass with maximum efficiency. Designed for serious car audio enthusiasts, this one-channel amplifier supports subwoofer systems with high output demands, delivering up to 1100 watts peak power and 600 watts RMS at 2 ohms.

Utilising advanced Class D amplification, the XM-GS100 offers high-efficiency power delivery with minimal heat generation and reduced power draw from the vehicle's electrical system. Its low-pass filter (LPF) and subsonic filter allow for precise low-frequency tuning, while the variable bass boost ensures customizable bass response to suit various enclosure and vehicle acoustics.

Constructed with premium-grade components, the amplifier features gold-plated RCA terminals, heavy-duty heat sink, and a durable chassis designed for long-lasting performance in demanding mobile environments. The compact footprint facilitates flexible installation in tight spaces, making it ideal for discreet subwoofer system integration.

Key Features:

• Power Output: 600W RMS x 1 @ 2Ω; 330W RMS x 1 @ 4Ω; 1100W max power
• Class D Amplification: High efficiency with reduced heat output
• Low-Pass Filter: 50–300 Hz adjustable for optimal subwoofer tuning
• Subsonic Filter: Eliminates low-end distortion below 10–70 Hz
• Variable Bass Boost: 0–10 dB at 40 Hz
• Gold-Plated RCA Inputs: For enhanced signal integrity
• Frequency Response: 10 Hz – 300 Hz
• Signal-to-Noise Ratio: ≥77 dB
• Dimensions (W x H x D): Approx. 13.5" x 2" x 8.5"
• CEA-2006 Compliant

The Sony XM-GS100 is an ideal choice for upgrading your vehicle's audio system with deep, controlled bass performance and efficient power management, all backed by Sony’s engineering reliability.

Sony Corporation

The Sony Corporation needs no introduction. With products ranging from televisions, digital imaging, audio/video, electrical components and phones, almost everyone has had some experience with Sony in their lifetime. From humble beginnings as an electronics shop in a Tokyo department store, the company has become one of the biggest names in electronics worldwide.

• Sony XM-GS100 Mono Channel Class D Stereo Amplifier
• Warranty card
• Instruction Manual
