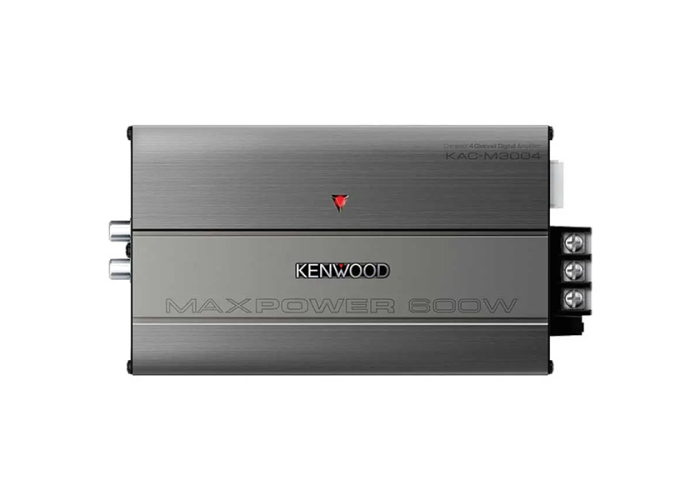

Kenwood KAC-M3004 600W 4 CH Marine Amplifier
Kenwood KAC-M3004 600W 4 CH Marine Amplifier
(Kenwood KACM3004)
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- CEA-2006 Compliant
- Class D Digital Amplifier
- Compact 4 Channel Design
- Lightweight
Overview
The Kenwood Compact 4-Channel Digital Amplifier delivers powerful, high-quality audio in a durable, space-saving design. With a Class D configuration and a maximum output of 600W, it offers efficient performance and excellent sound clarity. Supporting 2Ω to 8Ω speaker loads, it features a variable low/high-pass filter (50Hz–200Hz), signal sensing turn-on, and speaker-level inputs for versatile installation. Its conformal-coated PCB and extruded aluminum heat sink ensure protection against moisture and heat, making it ideal for harsh outdoor environments. Compact yet powerful, this CEA-2006 compliant amplifier combines performance, reliability, and durability for modern powersports and marine applications.
Key Features:
Compact 4 Channel Digital Amplifier
Delivers up to 600W of powerful, efficient Class D performance in a compact design.
Flexible Power Output
Offers 50W x 4 at 4Ω, 75W x 4 at 2Ω, or 150W x 2 bridged for versatile installation setups.
Conformal Coating Protection
Safeguards internal components from moisture and corrosion for reliable outdoor use.
Signal Sensing Turn-on
Automatically powers on when an audio signal is detected for convenient operation.
Durable Aluminum Heat Sink
Extruded design ensures superior heat dissipation and long-lasting amplifier performance.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
| Amplifier Details | |
|---|---|
| Amplifier Type | Class D |
| Maximum Power Output | 600W |
| Specifications | |
| Signal to Noise Ratio | 89dB (Reference: Rated Power into 4Ω at 14.4V) |
| Frequency Response | 20Hz – 20kHz (+0dB, -1dB) |
| Input Impedance | 10kΩ |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Bridged Connection | 4Ω to 8Ω allowable |
| Audio Section | |
| Low-Pass Filter | Built-in Variable Low-Pass Filter (50Hz–200Hz, -12dB/oct) |
| High-Pass Filter | Built-in Variable High-Pass Filter (50Hz–200Hz, -12dB/oct) |
| Filter Selector | 1 LPF–OFF–HPF |
| RCA Input Sensitivity | 0.2V – 5.0V |
| Speaker Level Input Sensitivity | 4.0V – 12.0V |
| Terminals & Connections | |
| Battery & Ground | Screw Type Terminal Block (Ni) (M4) |
| Speaker Output | MOLEX Connector with AWG16 200mm Wire |
| Line In | RCA (Ni) |
| General | |
| Dimensions (W×H×D) | 165mm x 45mm x 99mm |
| Weight | 0.76kg |
| Operating Voltage | 14.4V (11–16V allowable) |
| Current Consumption | 22A |
- 1 x Kenwood Marine 4 CH Amplifier
Peace of Mind Purchase Guarantee
This product is supplied via Kenwood Australia and enjoys the FULL benefits of the 'Genuine Kenwood Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Kenwood Australia directly.
We are a FULLY AUTHORISED Australian retailer for Kenwood Australia.
