  • Kenwood CMOS-320 Advance Rear View Camera

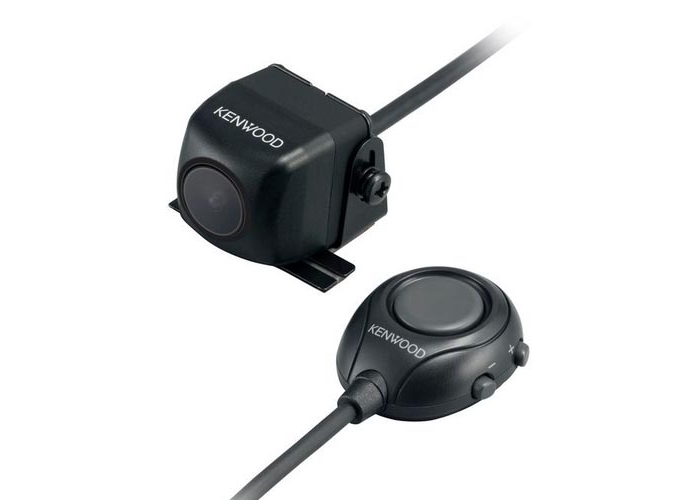

Kenwood CMOS-320 Advance Rear View Camera

Product Code : CMOS320

List Price: $299.00 On Sale: $218.85 (GST Included) (You save 26.81%)

$9.95 Flat Rate Generally ships out in 24 to 48 hours.


Product Info

Product Info

Kenwood CMOS-320 Advance Rear View Camera

We stock a large range of quality Kenwood Car Audio products. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers; Kenwood have you got covered.

We Think YOU Should Know

  • 12 Month Kenwood Australian Warranty
  • Risk Free Purchase Guarantee (bottom of page)
  • Universal Multi View Camera
  • Night, Normal, Wide, Corner & Overhead View
  • Switch Unit Included
  • 1/3.6" Colour CMOS sensor
  • Waterproof unit with flexible mount base
  • NTSC Video Signal Out (RCA)
  • Can be installed on the front or rear side of the car


The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the
number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN or DNX receiver.


Peace of Mind Purchase & Declaration of Warranty
This product is supplied directly via Kenwood Australia and enjoys the FULL benefits of the 'Kenwood - 12 Month Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product or you also have the option of speaking with Kenwood Australia directly.

We are a FULLY AUTHORISED Australian retailer for Kenwood Australia.

This product will be shipped from our Sydney Warehouse. This product is NOT DROP SHIPPED from overseas.

Tech Specs

Technical Specifications

Camera Type 1/3.6" colour CMOS sensor
Colour Type Yes
Effective number of pixels roughly 330000
High Sensitivity Pixels Yes
Output Video Wide-angle Mirror Image (For Rear View)/Wide-Angle normal Image (For Front View)
Waterproof Chassis Yes
Mounting System Flexible mount base
Installation positions Rear
Camera ID setting Yes
Rear view switching Reverse line
Front view switching by remote or Kenwood unit
Guideline view Yes
Guideline Adjustments Size, Horizontal Direction, Red Line Position
Image Adjustments Centering, Right-and-Left, Up-And-Down Angle
High Voltage Protection Yes
Wide Angle Lens Yes
Focal Length f: 1.05mm, F value 2
Horizontal Angle View +/- 195°
Vertical Angle View +/- 195°
Illumination range approx. 0.9 to 100000lux
Iris System Electronic
White balance Automatically
Scanning System Interlace
Synchronizing System Internal
Video output level 1Vpp, 75Ohms
Video Signal Format NTSC (Mirror View)
Connection cable (DC+video) 5m
Operating voltage 14.5V (9~16V Allowable)
Maximum Current Consumption 0.1A
Dimensions(WxHxD) 23.4 x 23.4 x 26.1mm
Weight 23gr
Dimensions Switch Unit (WxHxD) 27.5 x 32.8 x 12mm
Weight Switch Unit 10 gr
Operation Temperature Range -30°C ~ 70°C
Storage Temperature Range -40°C ~ 80°C
In The Box

What's Included?

Kenwood CMOS-320 Advance Rear View Camera

  • 1x CMOS-320 Camera
  • 1x CMOS-320 Switch unit
  • 1x Power harness and Signal Harness
  • 1x Rubber gromet
  • 1x Camera bracket clamping screw
  • 1x Double Sided adhesive pad
