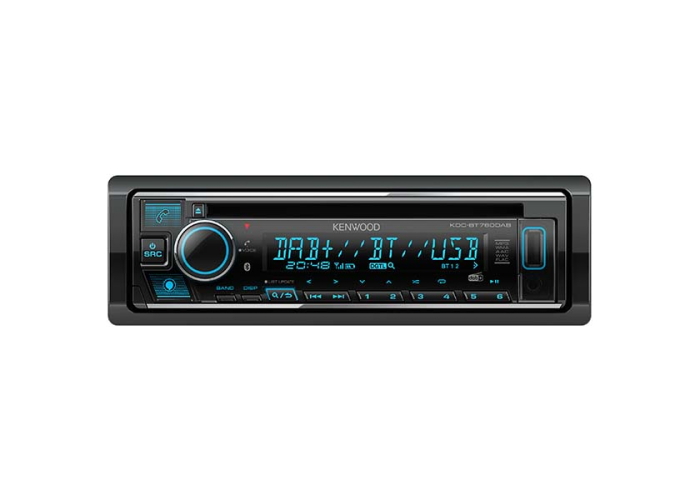

Kenwood KDC-BT760DAB CD Receiver w USB
Kenwood KDC-BT760DAB Single Din CD Bluetooth USB Receiver
(Kenwood KDC-BT760DAB)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- CD/DAB/AM/FM Stereo
- Built-in Bluetooth
- Kenwood Remote Application
- 2 Preout 2.5V
- Amazon Alexa / AUX input
- Dual Phone Connection
- Remote Removed by Manufacturer
Overview
The Kenwood KDC-BT760DAB is a powerful 1-din in-car dash CD player with DAB, AM/FM stereo with a USB and built-in Bluetooth. Features front USB & aux in, 2 preout 2.5V, Amazon Alexa connectivity and control through Kenwood app. The Kenwood KDC-BT760DAB lets you keep two phones paired and switch between the two to receive incoming calls.
Features
Smartphone Connectivity
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
Amazon Alexa Compatible
You can talk to Amazon Alexa on your Kenwood Receivers. With Alexa Built-in, you can ask to play music, place calls, listen to audiobooks, hear the news, check the weather, control smart home devices, get directions, find parking, and more - all while you keep your hands on the wheel and eyes on the road.
Music Mix - High-Quality Music streaming x 5 devices
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching devices among your friends.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
KENWOOD Remote App Compatible
Download the free app “KENWOOD Remote“.You can change audio sources or adjust audio settings like “Time Alignment” or “13-Band EQ” from your smartphone.
13-Band EQ / Digital Time Alignment
13-Band equalizer and DTA give optimal tuning enhancements for the listener.
Front USB and AUX Input Compatible with a Variety of USB-Enabled Devices
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
| CD Player | Laser Diode | GaAIAs |
| Digital Filter (D/A) | 8 times over sampling | |
| Spindle Speed | 500 rpm - 200 rpm (CLV) | |
| Wow & Flutter | Below measurable limit | |
| Frequency Response(±1 dB) | 20 Hz — 20 kHz | |
| Total Harmonic Distortion (1kHz) | 0.01% | |
| Signal-to-Noise Ratio (1kHz) | 96dB | |
| Dynamic Range | 92 dB | |
| Channel Separation | 87 dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac" files | |
| DAB | Frequency Range | 174.928 MHz — 239.200 MHz |
| Sensitivity | –100 dBm | |
| Signal-to-Noise Ratio | 90 dB | |
| Antenna Connector Type | SMB | |
| Antenna Output Voltage | 12 V DC | |
| Antenna Maximum Current | < 100 mA | |
| FM | Frequency Range | 87.5MHz to 108.0MHz |
| Usable Sensitivity | 6.2 dBf | |
| S/N 30dB | (0.56 μV/75 Ω） | |
| Quieting Sensitivity | 15.2 dBf | |
| DIN S/N 46dB | (1.58 μV/75 Ω) | |
| Frequency Response (±3.0dB) | 30Hz to 15kHz | |
| S/N(dB) | 68.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| AM | Frequency Range | 531 kHz — 1 701 kHz (9 kHz step) |
| Band (LW) / 153kHz to 279kHz(9kHz) | ||
| Usable Sensitivity (S/N = 20 dB) |
MW: 29.1 dBμ (28.5 μV) | |
| Preout Level(mV)/Load -Unbalanced | 2500mV/10kΩ | |
| Preout Impedance(Ω) | =<600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| USB | USB | USB 1.1 / 2.0 High speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 98dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 91dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC “.aac”, “.m4a” files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) | |
| AUX Input |
Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1000mV | |
| Input Impedance | 30kΩ | |
| AUDIO | PWR(MAX) | 50Wx4 |
| Full Bandwidth Power(at less than 1%THD) | 22Wx4 | |
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.7.1 (Hands Free Profile) | |
| SPP(Serial Port Profile) | ||
| PBAP(Phonebook Access Profile) | ||
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP 1.6.1 (Audio/Video Remote Control Profile) | ||
| GENE | Operating voltage | 12V DC car battery |
| Installation Size (W) | 182mm | |
| (H) | 53mm | |
| (D) | 155.5mm | |
| Net Weight | 1.2(kg) (Trim plate and Mounting sleeve) |
|
- Kenwood KDC-BT760DAB Single Din CD BT USB Receiver
- Faceplate
- Mounting Sleeve
- Trim Plate
- Wiring Harness
- Extraction key (x2)
