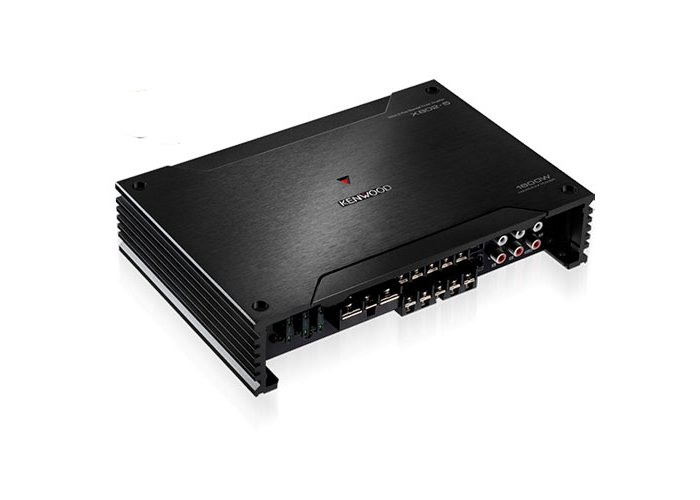

Kenwood X802-5 5CH 1600W Amplifier
Kenwood X802-5 5 Channel Hi-Res Amplifier
(Kenwood X802-5)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- 5 Channel Class D Amplifier
- 1600W MAX Power
- 50W x 4ch + 300W RMS Power at 4Ω
- 75W x 4ch + 500W RMS Power at 2Ω
- 150W x 2ch + 300W Bridged at 4Ω
- High Res Audio Certified
Overview
The Kenwood X802-5 is a D-Class 5 channel amplifier with a maximum power output of 1600 watts. It is high-res audio certified so you'll hear music with more detail and clarity.
Features
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standards. High-resolution audio captures and beautifully expresses all the details of your favourite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Output Coil with Magnetic Shield
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation.
One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
①Fuse (30A x3)
②Battery terminal (POWER IN BATT.)
③Power control terminal
④Ground terminal (GND)
⑤Speaker output terminals (A.ch/B.ch)
⑥Speaker output terminals (Sub)
⑦Speaker level input terminal
⑧Remote terminal (Optional Remote Controler for Sub)
⑨Line in terminal (A.ch/B.ch/Sub)
Variable Gain Circuit
Improved Signal to Noise Ratio
⑩Input sensitivity control（A.ch/B.ch/Sub）
⑪Input selector switch
⑫Bass Boost Level control (Sub)
⑬LPF frequency control (SUB)
⑭Filter switch (A.ch/B.ch)
⑮HPF frequency control (A.ch/B.ch)
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory-installed receivers.
Optional Wired Level Control Ready
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
Amplifier Features
| Class D Amplifier | Yes |
| Full Range Digital Amplifier | Yes |
| Load Capability | 2Ω Stable |
| Rated power output (4Ω) | 50W x 4 (4Ω) |
| Rated Subwoofer power output (4Ω) | 300W x 1 |
| Rated power output | 75W x 4 (2Ω) |
| Rated Subwoofer power output (2Ω) | 500W x 1 |
| Bridged power output (4Ω) | 150W x 2 |
| High-Resolution Audio certified | Yes |
| CEA-2006 Compliant | Yes |
| Low-pass Filter | Yes |
| High-pass Filter | Yes |
| Switched Mode Power supply | Yes, with Power MOS-FET |
| Signal Sensing Turn-on | Yes |
| Speaker Level Input | Yes |
| Single Side Terminals | Yes |
| Die-Cast Aluminium Heat Sink | Yes |
| Removable Coverplate | Yes |
Amplifier-Specifications
| Rated power output (4Ω, 14,4V) | 50W x 4 (20Hz ~ 20000Hz, 1%THD) |
| Rated subwoofer power output (4Ω, 14,4V) | 300 W (20Hz - 200Hz, 1% THD) |
| Rated power output (2Ω, 14,4V) | 75W x 4 (1000Hz, 1%THD) |
| Rated subwoofer power output (2Ω, 14,4V) | 500W (100Hz, 1% THD) |
| Rated power output (CEA-2006) | 50Watts RMS x 4 at 4 ohms and 1% THD |
| Rated subwoofer power output (CEA-2006) | 300W |
| Low-pass Filter | 50~200Hz (-24dB/oct) |
| High-pass Filter | 50~200Hz (12dB/oct) |
| Bass Boost Circuit | 40Hz, 18dB (B-Channel) |
| RCA Input Sensitivity | 0.2 ~ 5V |
| Speaker Level Input Sensitivity | 4 ~ 12V |
| Input Impedance | 10kΩ |
| Signal to Noise Ratio | 100dB |
| Signal to noise ratio (CEA-2006) | 80dBa (Reference: 1 Watt into 4 Ohms) |
| Frequency response (+0dB, -1dB) | 20Hz ~ 50000Hz |
| Freq. resp. (+0dB, -3dB) (SUB) | 20Hz ~ 200Hz |
| Operating voltage | 14.4V (11V ～ 16V allowable) |
| Maximum current consumption | 42A |
| Installation Size (WxHxD) | 248 x 53 x 169 (mm) |
| Weight | 2.1kg |
- Kenwood X802-5 5 Channel Amp
Peace of Mind Purchase Guarantee
This product is supplied via Kenwood Australia and enjoys the FULL benefits of the 'Genuine Kenwood Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Kenwood Australia directly.
We are a FULLY AUTHORISED Australian retailer for Kenwood Australia.
