Kenwood KCA-R100 FHD Rear Camera
Kenwood KCA-R100 FHD Rear Camera
(Kenwood KCA-R100)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- FHD Rear Camera
- 1/2.8 CMOS sensor2M Recording
- 180° Adjustable Mounting Holder
- For Compatible Dashboard Cameras
- Suits Kenwood DRV-A501W / DRV-A700W
- 8M Cable
Overview

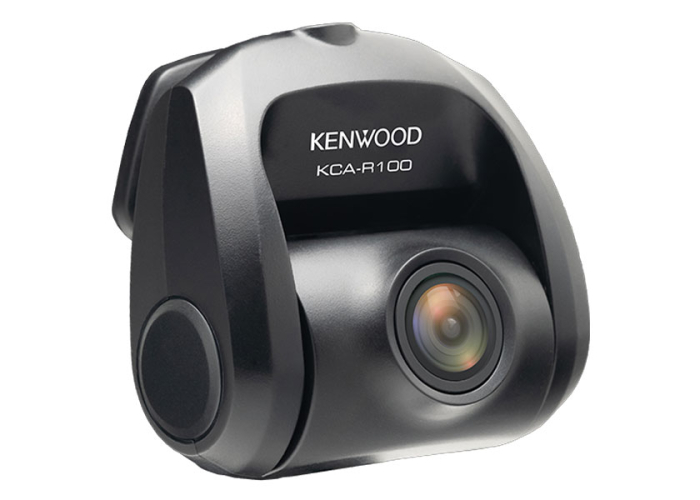

The Kenwood KCA-R100 is a FULL HD 1080P Rear Camera for compatible Kenwood dashboard cameras. Features a 180° adjustable mounting holder and 8m cable. Suits Kenwood DRV-A501W and DRV-A700W dashboard cameras.
Features
WDR (Wide Dynamic Range)
WDR technology to help record bright and dark objects more clearly even at the same time.
Optional Rear View Recording
Connect KCA-R100 to connectable DRV-A501W or DRV-A700W to record in front and behind of your vehicle, all at the same time. KCA-R100 includes a 8m cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record.
8m Rear Camera Cable
8m power & video cable enable you to install the rear camera inside your car, truck, or RV.
*Do not install the camera outside of your vehicle.
Adjustable Mounting Holder
The adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
| Hard Specification | Operating voltage | DC 5V | |
|---|---|---|---|
| Current Consumption | 110mA | ||
| Image sensor | 1/2.8 CMOS sensor | ||
| Valid Pixel | 2.12M Pixels (1936x1097) | ||
| Number of Pixel | 2M Pixels (1920x1080) | ||
| Angles of view | Horizontal : 129° Vertical : 66° Diagonal :161° | ||
| Lens rotation | yes(180°) | ||
| Lens | F2.0 | ||
| Polarization Filter | no | ||
| Operating temperature | -10℃ to +60℃ | ||
| Noise Protection | yes | ||
| Recording Specification | Recording resolution | 1920 x 1080 Full HD | |
| Frame rate | 30FPS | ||
| Video format | H.264 / MOV | ||
| Audio format | Linear PCM | ||
| Size | Dimensions WxHxD (Main unit) | 63mm*66mm*36mm | |
| Dimensions WxHxD (Bracket attached) | 63mm*66mm*36mm | ||
| Weight (Main unit) | 334g | ||
| DC/Rear cam Cable Length | 8m | ||
| Bundled Accessory | Car Mount Bracket | 3M Tape | |
| Manual /Warranty card | Yes | ||
| Spare 3M Adhesive Pad | yes/2pcs | ||
- Kenwood KCA-R100 Rear Camera
- 8m Mini USB cable
- Adhesive mount
- 2x Spare Adhesive pad
- Instruction Manual
