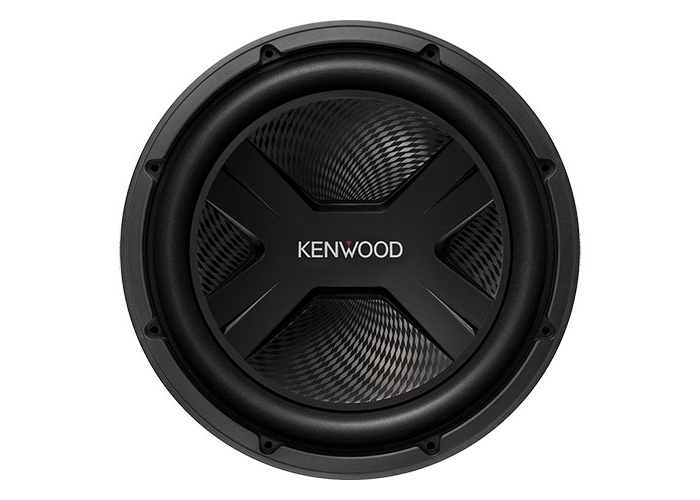

Kenwood KFC-PS3017W 12" Subwoofer
Kenwood KFC-PS3017W 12" Subwoofer
(Kenwood KFC-PS3017W)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- 300mm Polypropylene Cone (PP Cone)
- 2000W Peak / 400W RMS Power
- High-Ridged 2-piece Diaphragm
- X-motif Cap Technology
- Single Multi-layered Voice Coil
- Heat-Resistant Aluminium VC Bobbin
- Advanced Airflow Control
- Stress Controlled Spider
- Push-terminals for Easy Connection
- Sealed/Ported Installation Capability
Overview
The Kenwood KFC-PS3017W 12" Subwoofer has a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control for optimal heat radiation. The X-Motif Cap (Injection Molded Polypropylene) controls resonance frequency and cuts away unnecessary high-frequency sound to deliver powerful, solid bass.
Features
X-Motif Cap & Diamon array cone
The X-motif cap, made of Injection-Molded Polypropylene, controls resonance frequency and cuts away unnecessary high-frequency sound to deliver powerful, solid bass. Diamond shapes are etched all the way to the speaker edge, helping to reduce surface waves on the speaker diaphragm, decrease vibration, and suppress distortion. The diamond array pattern also provides additional rigidity to the speaker to improve voice coil response for dynamic and clean audio reproduction.
Heat-Resistant Aluminum Voice Coil Bobbin
The most common subwoofer failure factor is Voice Coil Burnout. By using a heat-resistant aluminium voice-coil bobbin with higher thermal conductivity, heat is easily transferred to the iron parts. This will increase the durability of the voice coil.
Newly-Designed Airflow Control
The air is pushed by the cap, the voice coil is cooled when air passes through the gap.
Closed Yoke Design
The closed yoke realizes a larger magnetic circuit to increase heat radiation, the more metal the better the heat radiation.
Computer-Optimized Spider
Redesigned shape to equalize the stress to increase mechanical durability.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
Speaker Features
| Speaker Size | 300mm |
| Oversized Dimension | Yes |
| Speaker Cone Design | Diamond-Array pattern |
| Magnet Type | Ferrit |
| Voice-coil | single, multi-layer voice coil |
| Terminals | Push Type |
| Spider | Stress controlled spider |
| Bottom-Yoke | Fully closed bottom yoke |
| Heat dissipation technology | Airflow control |
| Installation Capabillity | Sealed / Ported |
Speaker/woofer Specifications
| Peak Input Power | 2000W |
| Rated Input Power | 400W |
| Woofer Cone material | Polypropylene (PP) Cone |
| Center Cap Type | x-motif cap |
| Speaker Basket | Steel |
| Speaker Surround | Foam |
| Spider Type | Stress controlled Spider |
| Sensitivity | 85dB/W/m |
| Frequency Response | 29Hz ~ 300Hz |
| Speaker Impedance | 4Ω |
| Dimensions (W x H x D) | 326 x 326 x 155.4mm |
| Mounting Depth | 137mm |
| Mouting Hole Diameter Ø | 280mm |
| Speaker Weight | 4200gr |
Subwoofer Parameters
| Nominal impedance (Z) | 4Ω |
| DC resistance (Re) | 3.7Ω |
| Resonant frequency (FSO) | 24.4Hz |
| Mechanical Q factor (QMS) | 6.79 |
| Electrical Q factor (QES) | 0.52 |
| Total Q factor (QTS) | 0.483 |
| Voice coil inductance (LBM) | 2.04mH |
| Voice coil diameter (d) | 50mm |
| Force factor (BL) | 12.9T/m |
| Peak excursion Xmax | 5.9mm |
| Moving mass (MMS) | 152gr. |
| Volume accoustic compliance (VAS) | 104liter |
| Piston Area (SD) | 0.0512m² |
| Displacement | 1.2cc |
| Sealed box volume | 35.4liter |
| Sealed Box Dimensions | 457 x 362 x 299mm ( 18mm thick MDF)(WxHxD) |
| Vented box volume | 42.5liter |
| Vented Box Dimensions | 590 x 362 x 394mm ( 18mm thick MDF)(WxHxD) |
| Port dimensions (labyrinth) (W x H x L) | 35 x 324 x 736mm |
- 1x Kenwood KFC-PS3017W Subwoofer
