Kenwood CMOS-130 Rear View Camera
Kenwood CMOS-130 Rear View CMOS Camera
(Kenwood CMOS-130)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- Wide-angle mirror view image
- 1/3.6-inch colour CMOS sensor
- 380,000 pixels
- NTSC Video Signal Out (RCA)
- Waterproof unit (iP67)
- Flexible mount base
Please Note: The AV Cable to connect the CMOS-130 to your unit is not included in this package, We do have a 5 Meter Reverse Camera Installation kit available (Search REVCAMKIT).
Overview

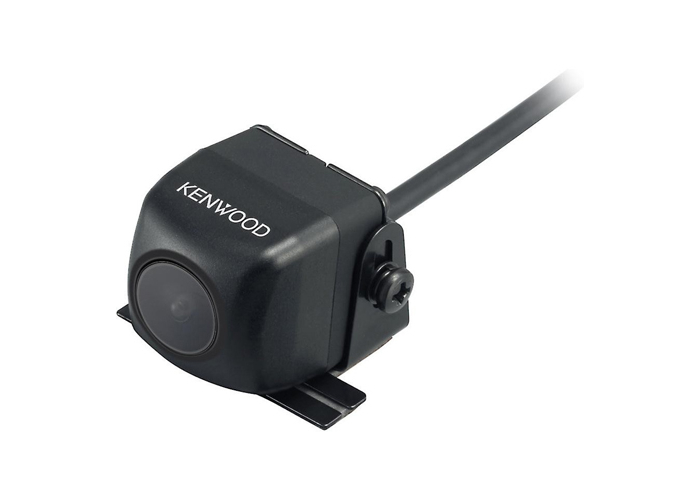

The Kenwood CMOS-130 waterproof rear view camera features a wide-angle mirror image, a 1/3.6" Colour CMOS sensor and a flexible mount base. The CMOS 130 can also be mounted as a front camera with Kenwood dual camera input models.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
| Camera Type | 1/3.6-inch colour CMOS sensor |
| Effective number of pixels roughly | 380000 |
| High sensitivity Pixels | Yes |
| Output video | wide angle mirror image |
| Waterproof chassis | Yes |
| Mounting system | Fexible mount base |
| Installation positions | Rear |
| High voltage protection | Yes |
| Wide angle lens | Yes |
| Focal length | f: 1.12mm, F value 2.2 |
| Horizontal Angle view | +/- 129° |
| Vertical Angle View | +/- 104° |
| Illumination range | approx. 0.9 to 100000 lux |
| Iris System | Electronic |
| White balance | Automatically |
| Scanning System | Interlace |
| Synchronizing System | Internal |
| Video output level | 1Vpp, 75Ω |
| Video signal format | NTSC (Mirror view) |
| Connection cable (DC+video) | 0.5 m |
| General Specifications | |
| Operating voltage | 14.4V (9 ~ 16V Allowable) |
| Maximum Current Consumption | 0.06A |
| Dimensions (WxHxD) | 23.4 x 23.4 x 23.9mm |
| Weight | 21 gr. |
| Instruction Manuals | ENG |
Kenwood CMOS-130 Rear View CMOS Camera
- 1x Kenwood CMOS-130 Camera*
- 1x Fuse and Fuse Holder
- 1x Rubber Gromet
Please Note: The AV Cable to connect the CMOS-130 to your unit is not included in this package, We do have a 5 Meter Reverse Camera Installation kit available (Search REVCAMKIT).
Peace of Mind Purchase Guarantee
This product is supplied via Kenwood Australia and enjoys the FULL benefits of the 'Genuine Kenwood Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with Kenwood Australia directly.
We are a FULLY AUTHORISED Australian retailer for Kenwood Australia.
