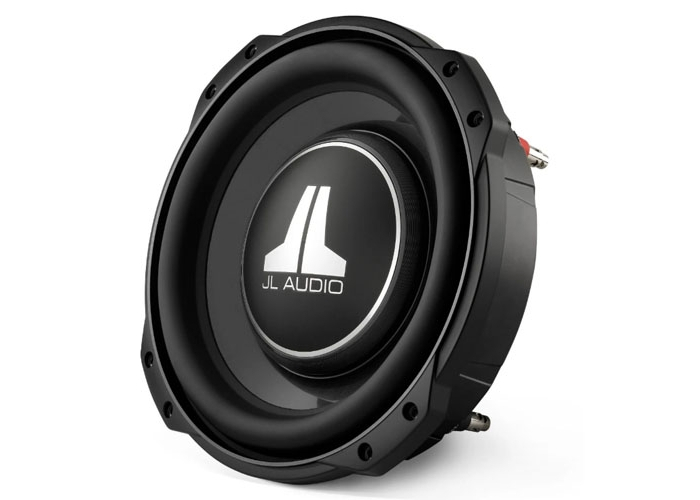

JL Audio 10TW3-D4 10" 400w Car Subwoofer
JL Audio 10" Slim SUB 400 RMS 4Ω
( JL Audio 10TW3D4 )
- Australian JL Audio Warranty
- Purchase Guarantee (see T&C's)
- JL Audio 10" Slim Sub
- 400W RMS at 4Ω
- Deep bass, shallow design
- Thin-Line technology
Overview
The JL Audio 10" Slim Subwoofer (400W RMS, 4Ω) combines shallow-mount convenience with exceptional bass performance. Built on JL Audio’s advanced Thin-Line and concentric tube technologies, it achieves remarkable excursion and deep, accurate bass from an ultra-compact enclosure. The innovative design supports the large motor structure closer to the front, allowing a mounting depth of just over 3 inches. With DMA-optimized motor systems, a cast alloy frame, and durable mica-filled polypropylene cone, it delivers clean, distortion-free output. Ideal for vehicles with limited space, this subwoofer offers premium JL Audio sound quality, reliability, and installation flexibility in a sleek, shallow design.
Key Features:
10-Inch Slim Subwoofer
Delivers deep, powerful, and accurate bass from an ultra-shallow design ideal for tight spaces.
Power Handling
Handles 400 W RMS at 4 Ω, providing high-output, clean performance with excellent amplifier compatibility.
Thin-Line & Concentric Tube Technology
Built on JL Audio’s Thin-Line platform with a concentric-tube cone structure to support long excursion while compressing depth.
Very Shallow Mounting Depth
Designed for ultra-shallow installations (≈3.25–3.50 inches), allowing mounting close to rear walls and tight factory locations.
High Excursion Capability
Very long linear excursion (0.60 in / 15.2 mm one-way) for increased output and dynamic bass from small enclosures.
Optimized Motor & Cooling
DMA-optimized motor design and patented floating-cone-attach method deliver precise control, reduced distortion, and reliable performance.
Durable Construction
Cast alloy frame, injection-molded mica-filled polypropylene cone, rubber surround, and aluminum-alloy dust/rear caps ensure long-lasting, distortion-free operation.
Small Enclosure Friendly
Very small sealed enclosure requirements and no pole vent — ideal for compact sealed installs and space-limited vehicles.
Precision-Built in USA
Precision-built at JL Audio’s Miramar, Florida factory using global components for consistent quality and performance.
| General Specifications | |
| Continuous Power Handling (RMS) | 400 W |
| Recommended Amplifier Power (RMS) | 200- 400 W |
| Nominal Impedance (Znom) | Dual 4 Ω |
| Physical Specifications | |
| Nominal Diameter | 10 in / 250 mm |
| Overall Diameter (A) | A1: 11.2 in / 284 mm A2: 10.5 in / 267 mm |
| Mounting Hole Diameter (B) | 9.625 in / 244 mm |
| Bolt Hole Circle Diameter (C) | 10.5 in / 267 mm |
| Motor Outer Diameter (D) | 5.1 in / 130 mm |
| Mounting Depth (E) | 3.25 in / 83 mm |
| Driver Displacement | 0.019 cu ft / 0.54 L |
| Net Weight | 10.1 lb / 4.6 kg |
| Parameters | |
| Free Air Resonance (Fs) | 32.30 Hz |
| Electrical “Q” (Qes) | 0.656 |
| Mechanical “Q” (Qms) | 11.35 |
| Total Speaker “Q” (Qts) | 0.62 |
| Equivalent Compliance (Vas) | 0.700 cu ft / 19.82 L |
| One-Way Linear Excursion (Xmax)* | 0.6 in / 15.2 mm |
| Reference Efficiency (no) | 0.23% |
| Efficiency (1 W / 1 m)** | 82.10 dB SPL |
| Effective Piston Area (Sd) | 56.532 sq in / 0.0365 sq m |
| DC Resistance (Re)*** | 9.036 Ω |
|
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied. |
|
- 1 x JL Audio 10" Slim SUB 400 RMS 4Ω
