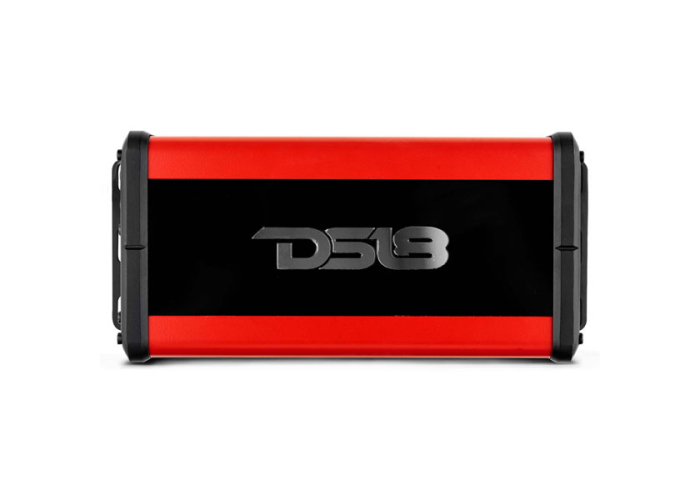

DS18 NXL-N2 900W 2-Channel Class D Marine Amplifier
DS18 NXL-N2 900W 2-Channel Class D Marine Amplifier
(DS18 NXLN2)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 2-Channel Class D Amplifier
- IPX67 Water-resistant Rating
- Suitable for Powersports applications
- Compact size
- Audio precision quality control verification
Overview
DS18’s NXL-N2 is tailored for the audio enthusiast who relishes hitting the open road on their bike, conquering rough trails in their side-by-side, or cruising the open waters. This powerful amplifier is designed to elevate your sound experience in any environment.
The NXL-N2, highly efficient and compact, delivers exceptional power output. With its 2-channel configuration, this amplifier allows you to effortlessly power your entire system without the need to look elsewhere.
Boasting full range capability, the NXL-N2 has the power to enhance any speaker in your setup, whether you prefer subs, mids, or tweeters—these amps can handle it all. DS18’s NXL-N2 is equipped with selectable X-Over options, including LPF (Low Pass Filter), FULL range mode, and HPF (High Pass Filter), providing the flexibility to customize your sound according to your preferences.
Featuring stable and reliable 4-layer PCB layouts, these amps are built to withstand the demands of power sports. With an IPX67 waterproof rating, they can handle any weather condition you throw at them.
With a maximum power output of 900W and RMS powers of 2 x 150W at 2 Ohms and 2 x 100W at 4 Ohms per channel, this amplifier delivers a dynamic and immersive sound experience.
Installation is a breeze thanks to the ultra-compact size of these amps. Their small footprint ensures easy integration into any setup. Rest assured, each unit undergoes rigorous audio precision quality control verification to guarantee top-notch performance, making DS18’s NXL-N2 the perfect choice for those seeking powerful and reliable audio amplification in their on-the-go adventures.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
GENERAL SPECS
SKU
NXL-N2
Total Watts (Peak)
900W
RMS Power @ 4 ohm
2x100W
RMS Power @ 2 ohm
2x150W
RMS Power @ 4 ohm Bridge
1x300W
AUDIO
Frequency Response
20Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
90dB
Total Harmonic Distortion (THD)
0.1%
Low Level Input Range
200mV-5V
Selectable X-Over
HPF/LPF/FULL
X-Over Filter Range
40-500Hz
Bass Boost Range
No
Infrasonic Filter
No
MEASUREMENT
Overall Length
7.87" / 200mm
Overall Wide
3.67" / 93.4mm
Overall Height
1.56" / 39.8mm
Heatsink Length
7.16" / 182mm
Gross Single Unit Weight
2Lb / 947 kg
Product Weight
2.5 lbs
Product Dimensions
10.25 x 5 x 3
