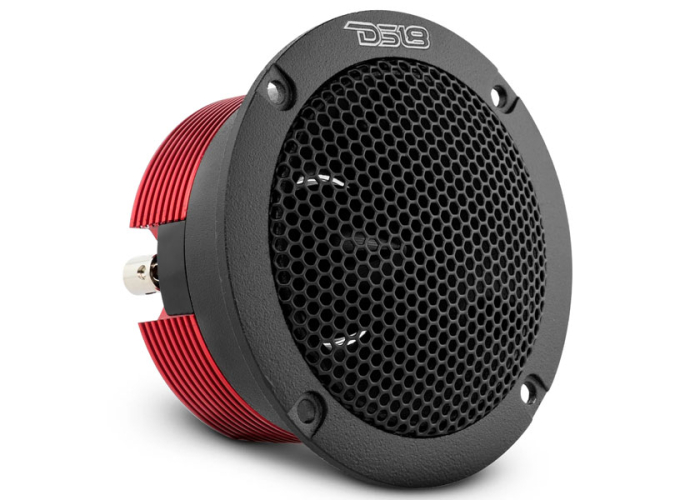

DS18 GTX1XL 320W 1.3" VC Super Bullet Tweeter

DS18 GTX1XL 320W 3.75" Die Cast Compression Neodymium Super Bullet Tweeter - Single
(DS18 GTX1XL)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&C's)
• Sold in single units
• 3.75" Super Bullet Tweeter
• 320W Peak / 160W RMS Power
• 4 ohms Impedance
• Neodymium Magnet
• 1.3" Voice Coil
• Aluminium Diaphragm
• Flush Mount
• Grill Included

Overview

3.75" Die Cast Compression Neodymium Super Bullet Tweeter 320 Watts 1.3" Aluminium 4-Ohm Vc

Step into a world of audio perfection with DS18's GTX1XL, the pinnacle of neodymium tweeters. The GTX1XL boasts a massive 3.75-inch die-cast compression neodymium super bullet design. With an astounding MAX power handling of 320W, it's no wonder this tweeter is highly regarded among our competitive audience. With a sensitivity of 100dB and a frequency response ranging from 2.5kHz to 20kHz, the GTX1XL ensures that no detail escapes your ears.

Crafted with precision and finesse, the housing of the GTX1XL is cast from high-strength aluminium, creating a sturdy enclosure that complements your car's interior and protects your investment. The iconic DS18 stamp on the front is the best way to let the world know you like it LOUD!

One of the standout features of the GTX1XL is its high-precision 1.3-inch aluminium voice coil. This tweeter delivers unmatched performance, ensuring every note is reproduced with stunning clarity and detail.

Versatility is at the heart of the GTX1XL's design. These super tweeters can be mounted anywhere you have space for them, giving you the freedom to experiment and create the perfect soundstage in your vehicle. Install them in traditional locations or explore unconventional placements, the GTX1XL delivers exceptional performance, effortlessly.

DS18 understands that pushing the limits is part of the car audio enthusiast's DNA. That's why we've engineered the GTX1XL to be easily disassembled and repaired on the spot within a mere 60 seconds. You can push these tweeters to their maximum potential without worry, knowing that you have the power to bring them back to life in an instant.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine & Home Electronic equipment with its headquarters in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs in today’s audio industry. Offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
GTX1XL
Nominal Diameter
3.75" / 95mm
Nominal Impedance
4 Ohm
AES Power Handling
80 Watts
Program Power Handling
160 Watts
Peak Power Handling
320 Watts
Sensitivity (1w/1m)
100 db
Frequency Response
2.5 K - 20 KHz
Recommended Hi Pass Crossover
2.5 KHz
Pair or Single
Single

MOTOR

Voice Coil Diameter
1.3" / 33.5mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Aluminum
Magnet Material
Neodymium
Magnet Weight
1.45 Oz
Body Material
Aluminum
Body Colour / Finish
Black/Red

MEASUREMENT

Overall Diameter
3.75" / 95mm
Overall Depth
2.24" / 57mm
Front Mount Baffle Cutout
2.95" / 73mm
Mounting Depth
1.73” / 44mm

• 1 x DS18 GTX1XL 320W 1.3'' VC Bullet Super Tweeter
• Sold as single units (not in pairs)
