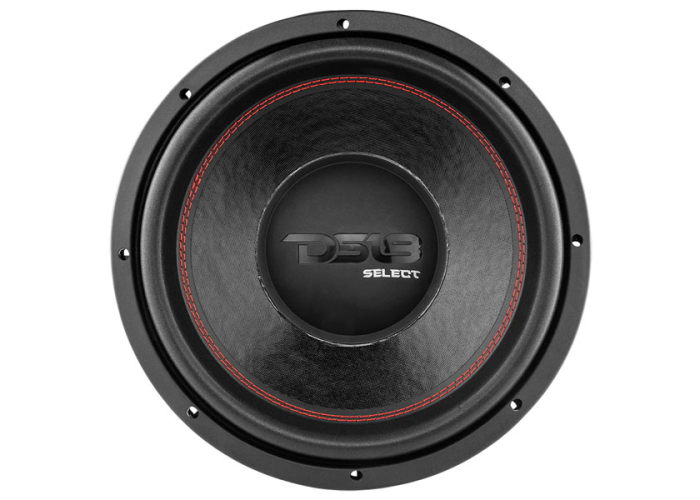

DS18 SLC12S 12'' 500W Subwoofer
DS18 SLC12S 12'' 500W Subwoofer
(DS18 SLC12S)
We Think You Should Know
- 12 Month Australian Warranty
- Risk Free Purchase Guarantee
- 12" Subwoofer
- MAX Power: 500 Watts
- RMS Power: 250 Watts
- Impedance: 4-Ohm SVC
- Ferrite Magnet
Overview
Introducing the DS18 SLC12S, a revolutionary subwoofer set to transform any car audio system.
As part of the Select Series Subwoofers, the SLC12S represents the pinnacle of excellence in car audio. Available in 8", 10", and 12" sizes, these subwoofers boast sleek black steel baskets, radiating confidence and sophistication. Designed for both entry-level car audiophiles and savvy deal-seekers, the Select Series outshines all other offerings in terms of quality and RMS power.
The SLC12S features a high-quality ferrite motor paired with an aluminum voice coil, ensuring exceptional power-to-DB efficiency and unmatched loudness. With its single voice coil configuration, this subwoofer offers simplicity, compatibility, and flexibility in amplifier selection and wiring configurations, all at an affordable price point. Its black aluminum voice coil former enhances durability, guaranteeing reliability even during the most intense bass-heavy sessions.
With 500W of MAX power handling and 250W of RMS power handling, the SLC12S delivers a thunderous audio experience that will leave you breathless. Its wide frequency response, ranging from 25Hz for deep, rumbling bass notes to 4.2kHz for accurate midrange frequencies, makes it a versatile performer across various genres and applications.
Installation is a breeze with the SLC12S's thoughtful design. Featuring a mounting cut-out of 10.9" and a shallow mounting depth of 5.47", this subwoofer seamlessly integrates into your vehicle without sacrificing valuable space. With an overall diameter of 12.44" and a depth of 6.42", it ensures a perfect fit, making it an ideal choice for a wide range of car models.
DS18 Car Audio - The Company
DS18 although a relative new comer to the US car audio market is already starting to make a name for itself by producing affordably priced car audio products that deliver well above average performance. With products such as full range and component speakers, high SPL subwoofers and amplifiers, there is a product to suit your requirements and more importantly, your budget. Great value is certainly something that we associate with DS18 products.
SPECS
SKU
SLC-12S
Nominal Diameter
12" / 305mm
Nominal Impedance
4 Ohm
RMS Power Handling
250 W
Maximum Power Handling
500 W
Sensitivity (1w/1m)
90 dB
Frequency Response
25Hz-4.2KHz
Recommended Lo Pass Crossover
90Hz
MOTOR
Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Aluminum
Winding Material
CCAW
Cone Material
Non-Pressed Paper
Dust Cap Material
Paper
Surround Material
Foam
Basket Material
Steel
Basket Color/Finish
Gloss black
Magnet Material
Ferrite
Magnet Weight
45 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
32.8L / 1.15ft3
Excursion (one way) Xmax
17 mm
Free Air Resonance Fs
41 Hz
Mechanical Factor Qms
4.611
Electrical Factor Qes
1.116
Total Factor Qts
0.898
Moving Mass Mms
174.993 g
Compliance Cms
0.049 mm/H
Bl Factor Bl
12.946
Voice Coil Inductance Le
1.018 mH
Diaphragm Area Sd
530.93 cm2
DC Resistance Re
3.4 ohms
Efficiency Bandwidth Product EBP
36.73
RECOMMENDED ENCLOSURES
Sealed Internal Volume
21.2L / 0.75ft3
Sealed Box Output Response F3
42Hz
Ported Internal Volume
39.6L / 1.4ft3
Port Size *Square (W x H x Long)
1.26" x 12.28" x 24.35" / 32.1 x 312 x 618.4mm
Port Tuning Frequency FB
32Hz
Ported Box Output Response F3
26Hz
MEASUREMENTS
Overall Diameter
12.44" / 316mm
Overall Depth
6.42" / 163mm
Front Mount Baffle Cutout
10.9" / 277mm
Mounting Depth
5.47" / 139mm
Motor Diameter
5.94" / 151mm
