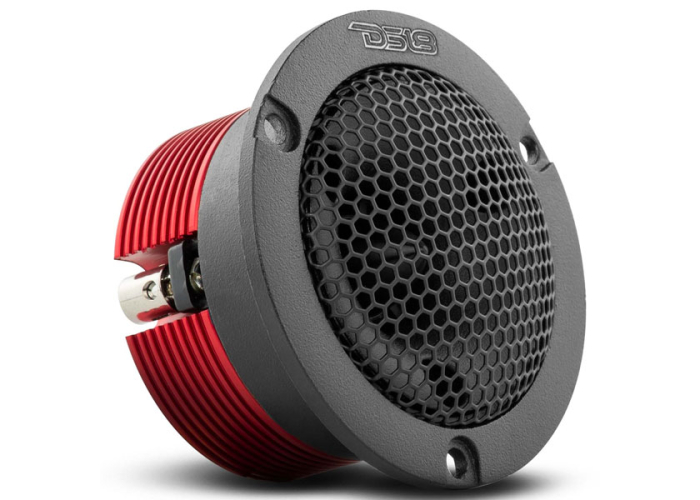

DS18 GTX1 240W 1" VC Super Bullet Tweeter

DS18 GTX1 240W 3" Die Cast Compression Neodymium Super Bullet Tweeter - Single
(DS18 GTX1)

We Think You Should Know

• Australian DS18 Warranty
• Purchase Guarantee (see T&C's)
• Sold in single units
• 3" Compression Super Bullet Tweeter
• 240W Peak / 120W RMS Power
• 4 ohms Impedance
• Neodymium Magnet
• 1" Voice Coil
• Titanium Diaphragm
• Flush Mount
• Aluminium Body
• Grill Included

Overview

3" Die Cast Compression Neodymium Super Bullet Tweeter 240 Watts 1" Titanium 4-Ohm Vc

Bursting onto the audio scene for high-frequency audio reproduction, DS18’s GTX1 is set to revolutionize your car audio experience. Crafted with meticulous precision, these tweeters feature high-end 1-inch Titanium voice coils so every note, every melody, and every beat is brought to life with unparalleled clarity and depth.

At the heart of the GTX1 lies a high-strength aluminium housing, solidly cast to withstand the test of time and deliver flawless performance. Labelled with the seal of approval – DS18 is proudly stamped on the GTX1’s front, a symbol of excellence that has garnered the trust and admiration of car audio enthusiasts worldwide.

Don't let the GTX1's compact size deceive you. With a peak power handling of an astonishing 240 watts, a program power handling of 120 watts, and an AES power handling of 60 watts, this super tweeter is a true force to be reckoned with. Its sensitivity rating of 98dB ensures that every whisper, every cymbal crash, and every intricate detail is faithfully reproduced with impeccable precision. The frequency response spans from 3KHz to 20KHz, guaranteeing an expansive range that captures every delicate nuance and dynamic flourish.

Versatility reigns supreme with the GTX1, as it adapts effortlessly to any environment. These super tweeters can be mounted with ease wherever space allows, offering you the freedom to customize your audio setup to your heart's content. Let your imagination run wild as you explore endless placement possibilities, ensuring that your soundstage is optimized to perfection.

DS18 Car Audio - The Company

DS18 is a leading electronics manufacturer specializing in Mobile, Marine & Home Electronic equipment with its headquarters in Miami, FL, USA. DS18 was created and developed by a team of young and determined professionals who understand the needs in today’s audio industry. Offering several series of amplifiers, speakers, subwoofers, tweeters, midranges, cables, accessories, component sets and much more DS18 guarantees to satisfy customers seeking a wide assortment of products.

SPECS

SKU
GTX1
Nominal Diameter
3"
Nominal Impedance
4 Ohms
AES Power Handling
60W
Program Power Handling
120W
Peak Power Handling
240W
Sensitivity (1w/1m)
98 dB
Frequency Response
3KHz - 20KHz
Recommended Hi Pass Crossover
3 KHz

MOTOR

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
KSV
Diaphragm Material
Titanium
Magnet Material
Neodymium
Body Material
Aluminium

MEASUREMENTS

Overall Diameter
2.95" / 75mm
Overall Depth
1.96" / 49.9mm
Front Mount Baffle Cutout
2.26" / 57.3mm
Mounting Depth
1.46" / 37 mm
Product Weight
1 lbs
Product Dimensions
4 x 3.5 x 2.5

• 1 x DS18 GTX1 240W 1'' VC Bullet Super Tweeter
• Sold in single units (not pairs)
