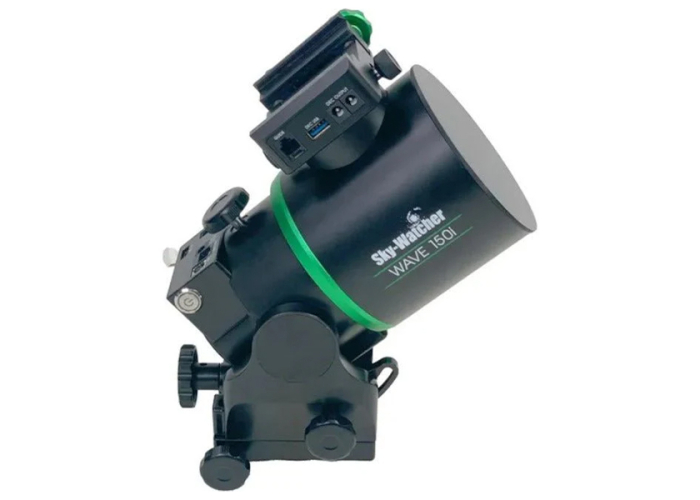

Sky-Watcher Wave 150i Mount

Sky-Watcher Wave 150i Mount
( Sky-Watcher SWWAVE150I )

• Australian Sky-Watcher Warranty
• Purchase Guarantee (see T&C's)
• Wave 150i
• Strainwave drive
• Precise tracking
• Compact, high payload

Overview

The Sky-Watcher Wave 150i is engineered with advanced strain wave (harmonic) gearing technology, offering exceptionally smooth and precise tracking with minimal backlash. This makes it well-suited for long-exposure astrophotography, where accurate movement is essential for capturing detailed images of celestial objects. Its compact and lightweight design provides an impressive payload-to-weight ratio, allowing it to support a wide variety of telescopes and accessories while remaining easy to transport. This portability makes the Wave 150i ideal for both backyard observing and field setups. Combining precision performance with convenience, it is an excellent choice for users seeking reliability, versatility, and high-quality tracking accuracy.

Key Features:

EQ & AZ Working Modes
Supports both equatorial and alt-azimuth configurations, providing versatility for visual observing and astrophotography.

High Payload Capacity
Holds up to 15 kg without counterweights and up to 25 kg when counterweights are used, accommodating a wide range of telescope setups.

Precision Harmonic Drive System
Features stepper motor with belt drive and harmonic reducer for smooth, accurate, and low-backlash tracking performance.

Adjustable Latitude Range
Offers continuous latitude adjustments from 0° to 90°, suitable for observing anywhere on Earth.

Clutch-Locking & Balance Adjustment
Both RA and DEC axes include clutch locks for easy balancing and quick setup when adding counterweights.

RA Harmonic & Gear Ratios
RA harmonic spec: 17–100, DEC harmonic spec: 14–80, with RA ratio of 303:1 and DEC ratio of 275.4:1 for smooth slewing and tracking.

Wireless Control
Built-in Wi-Fi and Bluetooth allow connection via mobile apps, hand controller, or third-party platforms.

12V DC Power Operation
Runs efficiently from standard 12V power sources with 0.5A standby current.

High Slew Speed
Maximum slewing speed of 7.5°/s for fast positioning and target acquisition.

Safety & Convenience Features
Includes RA power-off brake, home position limits, cable management, and red LED illumination for bubble level and latitude scale.

Skywatcher Telescopes - The Company

In late 1999 the Skywatcher brand was born in Canada. Today Skywatcher is recognised as being one of the world's largest telescope suppliers. With a mission statement like the following, it is no wonder they are one of the world's biggest brands for night gazing.

'We believe that beginners’ first scopes should be not only affordable, but also of the highest quality.  Looking through a telescope for the first time is a magical moment and we believe in magic! We're called “Sky-Watcher”: our desire is to see the world-wide community of sky watchers grow, until, one day,  every person in the world can be a part of our community!

• 1 x Sky-Watcher Wave 150i Mount
