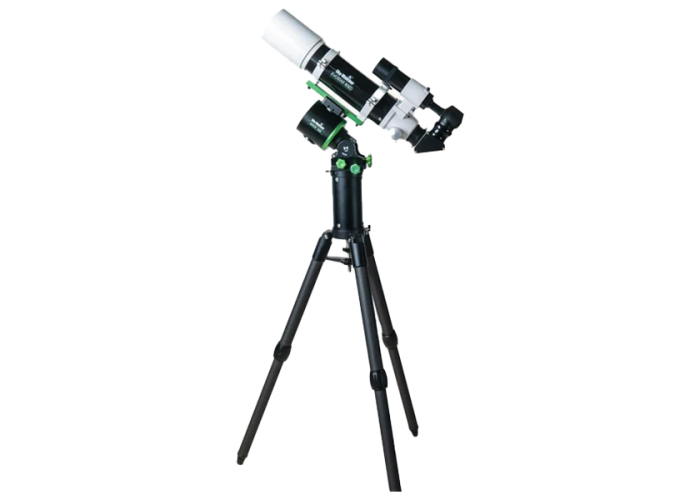

Sky-Watcher Black Diamond 80ED & WAVE 100i & Tripod

Sky-Watcher Black Diamond 80ED & WAVE 100i & Tripod
( Sky-Watcher SWWAVE100BDED80)

• Australian Sky-Watcher Warranty
• Purchase Guarantee (see T&C's)
• Black Diamond 80ED
• Wave 100i
• Carbon tripod
• Dual-saddle, 10–15kg

Overview

The Sky-Watcher Black Diamond 80ED paired with the Wave 100i mount and carbon fibre tripod provides a high-performance setup for visual astronomy and astrophotography. The Evostar 80ED doublet refractor delivers sharp, high-contrast images with excellent color correction. The Wave 100i mount uses strain wave (harmonic) gearing, offering highly precise tracking with minimal backlash while remaining compact and lightweight. Despite weighing only 4.3kg, it supports up to 15kg without a counterweight, making it suitable for a wide range of equipment. It features dual Vixen/Losmandy saddle compatibility, dual AZ/EQ operation, fast slew speeds, and multiple tracking modes for versatile observing.

Key Features:

EQ & AZ Working Modes
Operates in both equatorial (EQ) and alt-azimuth (AZ) configurations for versatile observing and imaging.

Lightweight & High Payload
Mount weight 4.3 kg; supports 10 kg payload without counterweight and 15 kg with counterweight (dual-saddle capable).

Precision Harmonic Drive
Stepper motor + belt drive with harmonic reducer; total transmission ratio 300:1. RA harmonic spec 17–100; DEC harmonic spec 14–100.

Latitude & Balance
Continuous latitude adjustment 0°–90° and RA clutch-lock for easy balancing when fitting counterweights.

Connectivity & Power
Built-in Wi-Fi and Bluetooth. Runs on 12V DC; standby current 0.4A, Go-To current 2A.

Performance
Maximum slew rate 2400× (10°/s) with accurate tracking modes (sidereal, solar, lunar supported).

Safety & Convenience
RA power-off brake, RA/DEC home-limit functions, cable management, and red LED illumination for latitude scales and bubble level.

Skywatcher Telescopes - The Company

In late 1999 the Skywatcher brand was born in Canada. Today Skywatcher is recognised as being one of the world's largest telescope suppliers. With a mission statement like the following, it is no wonder they are one of the world's biggest brands for night gazing.

'We believe that beginners’ first scopes should be not only affordable, but also of the highest quality.  Looking through a telescope for the first time is a magical moment and we believe in magic! We're called “Sky-Watcher”: our desire is to see the world-wide community of sky watchers grow, until, one day,  every person in the world can be a part of our community!

• 1 x Sky-Watcher Black Diamond 80ED & WAVE 100i & Tripod
