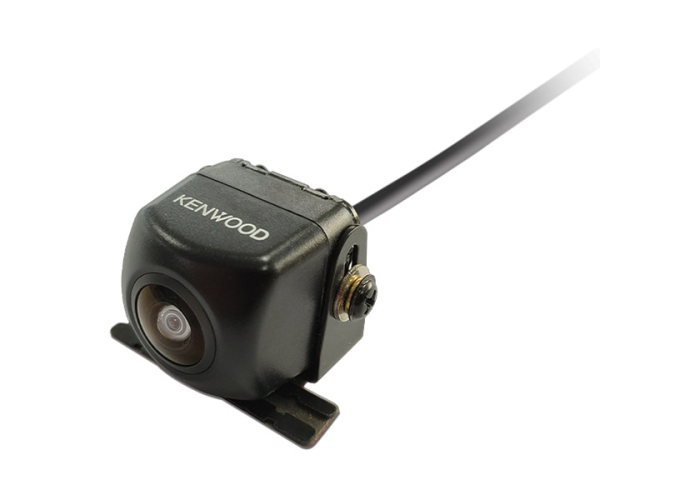

Kenwood CMOS-10 v2.0 Rear Camera
Kenwood CMOS-10 v2.0 Rear Camera
(Kenwood CMOS-10)
We Think You Should Know
- Australian Kenwood Warranty
- Purchase Guarantee (see T&C's)
- 640 x 480 Effective Pixel
- Horizontal Viewing Angle: 110° / 160°
- Lens Angle: 120° / 170°
- IP67/IP68 Waterproof Rating
- 0.5Lux Minimum Illumination
- 2:1 Interlace Scanning System
- Compact and Lightweight
- Includes 6m Cable
Overview
The Kenwood CMOS-10 v2.0 is a compact and high-resolution rear camera designed to improve safety and convenience while reversing or parking. With advanced image processing, auto gain control, and backlight compensation, this camera ensures clear visibility in various lighting conditions. Compact and lightweight, with an IP67 rating for protection against dust and water splashes.
Kenwood Car Electronics
Renowned for its sound quality and technical expertise, Kenwood is a global leader in car electronics, radio communication systems and audio equipment. Kenwood Car Audio systems feature cutting-edge technology, innovative new features and quality construction to provide you with the finest audio solutions for your vehicle. Whether it be speakers, subwoofers, amps or a range of multimedia receivers, Kenwood has got you covered.
| Effective Pixel | 640 x 480 |
|---|---|
| Horizontal Sync Frequency | 15625kHz |
| Vertical Sync Frequency | PAL 50Hz / NTSC 60Hz |
| Scanning System | 2:1 Interlace |
| Sync System | Internal |
| AGC | Auto |
| BLC | Auto |
| Resolution | 480 TV Lines |
| S/N Ratio | More Than 48dB |
| Current Consumption | No More 150mA |
| Power Supply | DC 12V ±10% |
| Operating Temperature | -30℃ ～ 80℃ RH95% MAX |
| Storage Temperature | -40℃ ～ 85℃ RH95% MAX |
| Horizontal Angle | 110° / 160° |
| Lens Angle | 120° / 170° |
| Water-proof | IP67IP68 |
| Minimum Illumination | 0.5Lux/F1.2 (Lux with LED) |
| Cable Length | 6m |
| Product Dimension (W x D x H) | 23.4 x 23.4 x 23.9mm |
| Product Weight : | 21g (Camera only) |
