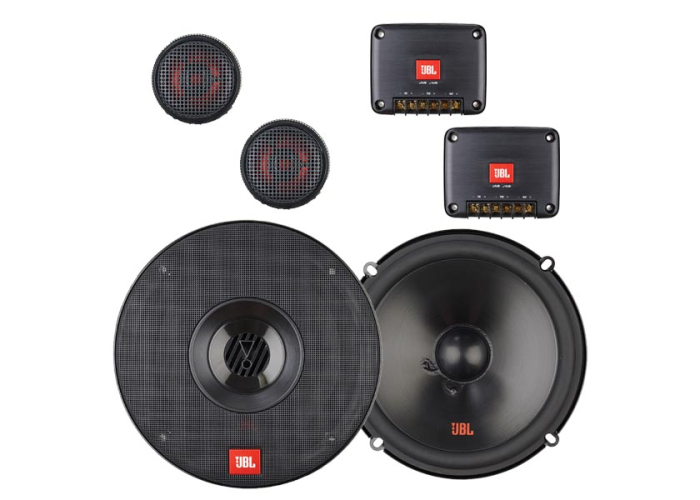

JBL Club 602CTP 6.5'' Component Speaker System

JBL Club 602CTP 6.5'' Component Speaker System
(JBL CLUB602CTP)

We Think You Should Know

• 12 Month Australian Warranty
• Purchase Guarantee (see T&C's)
• 70W RMS / 210W peak power
• 92dB sensitivity for clear output
• 55Hz – 20kHz frequency response
• 6.5" component system
• Adjustable tweeter output levels

Overview

The JBL Club 602CTP 6.5'' Component Speaker System delivers precise, live-performance acoustics across standard vehicle passenger cabins. Drivers install this component split kit to separate complex low notes from delicate high frequencies. The high-sensitivity motor configuration generates rich, room-filling sound stages without requiring expensive secondary amplifier upgrades.

Key Features:

• Patented Plus One cone architecture expansion – The proprietary polymer cone layout provides more functional surface area than competitive generic speakers. This extended diaphragm design moves substantial volumes of air to deliver deep, hard-hitting bass notes.
• Acoustically damped UV resistant diaphragm – Rugged polypropylene cone structures withstand severe heat and humidity variations inside closed cars. The non-resonant material composite ensures clean, distortion-free musical playback during heavy summer usage cycles.
• Adjustable external tweeter pod design – Specialised surface mount housing pods introduce a versatile pivoting installation option. Installers tilt high-frequency angles up or down freely after mounting to focus premium vocal clarity directly at your driving ears.
• Customisable selectable tweeter output dB levels – The integration network features an onboard toggle switch supporting zero decibel or plus three decibel volume adjustments. This attenuation compensates for low door placement or heavy interior fabric dampening.
• Oversized high capacity driving motor magnets – A redesigned magnetic motor assembly accommodates higher power handling thresholds safely. The robust energy core maintains stable thermal control when driving systems at high volumes over long highways.
• Patented I-Mount tweeter system templates – The clever installation hardware allows effortless flush or surface dashboard integration. Angle adjustments spanning up to forty degrees allow fine-tuning of acoustics inside irregular cockpit shapes.
• 3.0 ohm impedance optimisation – Extracts maximum power from factory head units and entry-level amplifiers. Higher output than standard 4-ohm speakers from the same power source.

Ideal For

• Car audio hobbyists wanting a high-fidelity component system with distinct physical split separation between bass and treble
• DIY car customizers needing versatile tweeter housing alternatives including dashboard pods, flush cups, or surface rings
• Daily commuters looking for crisp vocal definition that cuts over distracting road, engine, and wind noise on open expressways
• Vehicle owners replacing worn factory front speakers with an efficient, durable layout that pairs with existing original stereos

JBL Car Audio

JBL Car Audio products are some of the finest and most innovative products available. With an undeniably rich heritage in audio, JBL have their products in major concert venues and stadiums around the globe and are a go-to choice for music professionals. JBL have perfected their car audio products, so you can enjoy the true clarity and energy of music in your vehicle.

• 2 x Woofers (6.5")
• 2 x Tweeters
• 2 x Crossover Networks
• 2 x Woofer Grilles
• 2 x Tweeter Pods
• 2 x Plastic Multi-Hole Adapter Rings
• 2 x Flush-Mount Cups
• 2 x Threaded Flush-Mount Adapters
• 2 x Surface-Mount Cups
• 2 x Starfish Tweeter Mounts
• 2 x Plastic Locking Nuts
• 2 x 3M Foam Pieces
• 1 x Foam Gasket Strip
• 36 x Mounting Screws
• 8 x Speed Clips
• 4 x Spacers
• 2 x Washers
