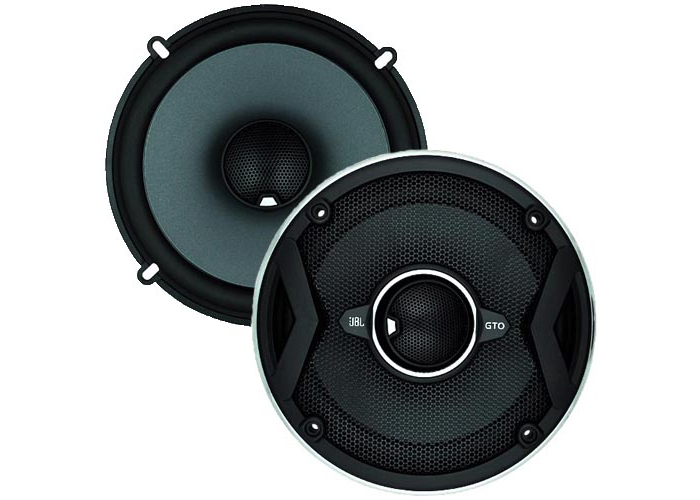

JBL GTO629 180W 6.5" 2 Way Car Speakers
JBL GTO629 180W 6.5" 2 Way Car Speakers
(JBL GTO629JBL)
We Think You Should Know
- Australian JBL Warranty
- Purchase Guarantee (see T&C's)
- Restore clean instrument tones today
- Install JBL GTO629 Speakers
- Expand acoustic surface areas effortlessly
- Minimise resonance using carbon composite frames
- Adjust treble output configurations easily
Overview
The JBL GTO629 180W 6.5" 2 Way Car Speakers delivers detailed high-frequency performance to standard passenger cabins. Drivers install this coaxial speaker kit to elevate vocal clarity above low road noise. The high-sensitivity motor assembly extracts impressive volume from modest factory head units to justify your audio upgrade investment.
Key Features:
- Patented Plus One Carbon Injected Cone – High-tech carbon-injected composite layouts provide more functional surface area than competitive generic speakers. This extended diaphragm design moves substantial volumes of air to deliver deep, hard-hitting bass notes.
- Fiberglass Reinforced Plastic Framework – Non-magnetic carbon composite FRP baskets resist warping when bolted onto irregular sheet metal door cards. The advanced composite stops chassis acoustic resonance to preserve clean transient audio notes.
- Vented Heavy Duty Magnet Motor Assembly – Precision forced-air cooling vents integrated beneath the motor structure cycle fresh air past the voice coil constantly. This cooling prevents power compression distortion during high-volume music tracks.
- Smooth Edge Driven Soft Dome Tweeter Diaphragms – Premium soft-dome tweeter units deliver a much broader, smoother high frequency response. The edge-driven design eliminates harsh or piercing treble spikes, maintaining comfortable listening regardless of output volume levels.
- High Output True Three Ohm Electrical Balancing – The smart voice coil design counteracts the steep signal resistance common in thin factory car wires. This matching loop coaxes greater continuous current out of stock stereo circuits to maximize output volume.
- Integrated Onboard Twelve Decibel Passive Filtering – Built-in passive crossover arrays direct critical audio signals exactly where they belong. The 12dB per octave curves guard fragile tweeters from lower bass impact damage while sharpening overall acoustic imaging.
Ideal For
- Vehicle owners replacing dull factory door speakers with crisp high-fidelity aftermarket audio components
- DIY car audio builders wanting an all-in-one coaxial setup for straightforward door or parcel shelf positioning
- Daily commuters seeking high-volume sound clarity without installing expensive secondary power amplifiers
- Car buyers needing UV-resistant speaker components that endure harsh sun exposure through front windscreens
JBL Car Audio
JBL Car Audio products are some of the finest and most innovative products available. With an undeniably rich heritage in audio, JBL have their products in major concert venues and stadiums around the globe and are a go-to choice for music professionals. JBL have perfected their car audio products, so you can enjoy the true clarity and energy of music in your vehicle.
| Specifications | Details |
|---|---|
| Product Type | 6-1/2" 2-Way Coaxial Car Speakers |
| SKU | GTO629JBL |
| Continuous Power Handling | 75W RMS (5W - 200W recommended range) |
| Peak Power Handling | 270W |
| Sensitivity (2.83V/1m) | 92dB |
| Frequency Response | 67Hz – 21kHz |
| Nominal Impedance | 3.0 ohms |
| Woofer Frame Architecture | Fiberglass-Reinforced Plastic (FRP) Frames |
| Woofer Cone Material | Plus One™ Carbon-Injected Cone | UniPivot™ Edge-Driven Soft-Dome Tweeter |
| Crossover Network Slopes | Built-In 12dB/octave Passive Filters |
| Physical Mounting Depth | 52mm Depth |
| Physical Cutout Diameter | 127mm Diameter |
- 2 x 2-Way Coaxial Car Speakers
- 2 x Black Protective Metal Mesh Grilles
- 1 x Mounting Hardware Installation Kit
- 1 x Owner's Manual
Peace of Mind Purchase Guarantee & Declaration of Warranty
This product is directly imported and is offered with a full Australian 12 month warranty. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department to arrange service for this product.
We are not linked or associated with JBL.
This product will be shipped from our Sydney Warehouse and you are welcome to pick it up directly from our store in Sydney. This product is NOT DROP SHIPPED from overseas.
