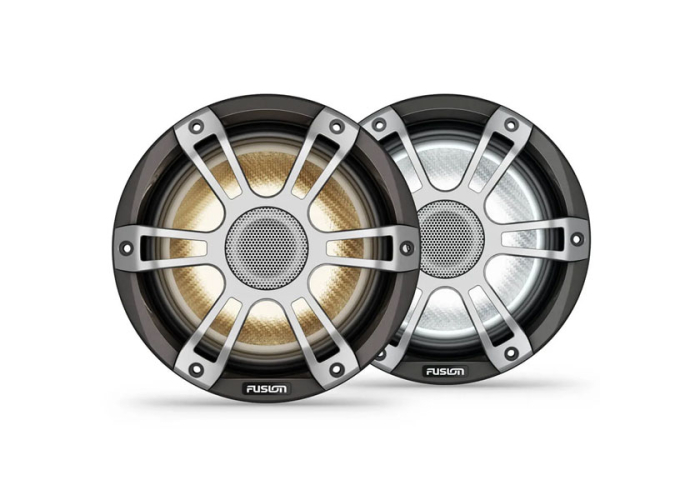

Fusion 3i 7.7" 280W Marine Speakers w CRGBW LED - Grey
Fusion Signature Series 3i 7.7" 280W Sports Marine Speakers w CRGBW LED - Grey
(Fusion 010-02772-11)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- 7.7" Marine Speakers - Grey
- 280W Peak / 100W RMS - 4Ω
- CRGBW LED Lighting
- True-Marine Philosophy
- Marine-Grade Connectors
- CURV Cone Technology
- IP65 Rating
IMPORTANT NOTE:
- Requires Fusion MS-CRGBWRC wireless remote control (sold separately) to control the colours
Overview
The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.
Experience multicoloured CRGBW LED lighting to brighten up your boating experience and crystal-clear premium sound quality suited for the marine environment. Rigorously tested, its marine design has an IP65 rating and water-resistant connectors provide simplified installation and superior protection.
Features
LED ILLUMINATION
Cool white, red, green, blue, warm white. You can choose a colour to match the mood of your music.
MARINISED CONNECTORS
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.
REDESIGNED GRILLE
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.
TRUE-MARINE™ PHILOSOPHY
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season.
CURV® CONE TECHNOLOGY
A lighter and stronger woven fibre composite produces greater sound definition at a higher volume.
SYSTEM INTEGRATION
These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.
FUSION Entertainment Ltd
Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!
| Physical Dimensions (Diameter x Depth) | 7.72" x 4.37" (196 x 111 mm) |
| Weight (Single Unit) | 3.9 lbs (1.77 kg) |
| Water and Dust Rating | IP65 |
| Configuration | Coaxial |
| Peak Power (Watts) | 280 W |
| RMS Power Rating (Watts) | 100 W |
| Sensitivity (1 Watt @ 1 Meter) | 91 dB |
| Frequency Response | 60 Hz - 22 kHz |
| Nominal Impedance | 4 Ohms |
| Recommended Amplifier Power (Watts RMS) | 25 - 120 W/Ch |
| LED Lighting | Yes, CRGBW (Sports style with LED models only) |
| LED Supply Voltage | 10.8 - 16 VDC |
| LED Load Current @ 14.4 VDC (Max) | 300 mA |
| Operating Temperature Range | 32°F to 122°F (0°C to 50°C) |
| Voice Coil Diameter | 1.4" |
| Cone Material | CURV® Cone Technology with Rubber Surround |
| Tweeter Type | Silk Dome |
| Compass-Safe Distance | 141" (358 cm) |
| Speaker Connection | Flying Lead with Water-Resistant 6-Way Connector, 5.9" (150 mm) |
| Mounting Diameter Clearance | 6.14" (156 mm) |
| Mounting Depth Clearance | 3.39" (86 mm) |
| Sealed Enclosure Volume (Fully Filled with Absorption Material) | 0.71 cubic ft (20 L) |
| Ported (Vented) Enclosure Volume (Lined with Absorption Material) | 1.06 cubic ft (30 L) |
| Port Diameter | 3" (76 mm) |
| Port Length | 6.3" (160 mm) |
