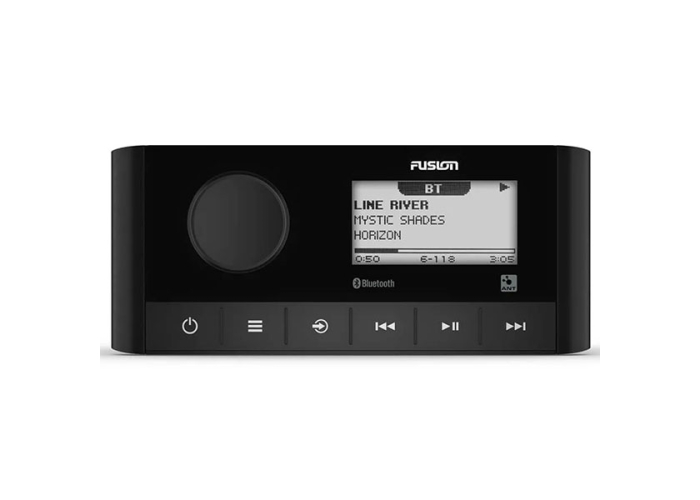

Fusion MS-RA60 Marine Stereo
Fusion MS-RA60 Marine Stereo
(Fusion 010-02405-00)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- Modern Design & Aesthetics
- Digital Signal Processing (DSP)
- Built-in DAB Tuner
- Multiple Source Options Available
- IPX6 & IPX7 Ingress Protection
- Multi-Zone Technology
- Class-D Amplifier
Overview
The Fusion MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
Enhance your experience with bonded LCD technology, offering increased durability and protection against condensation and fogging. Benefit from a built-in Class-D amplifier, ensuring higher efficiency and greater audio output. Stay up to date effortlessly with over-the-air software updates via Bluetooth® technology, accessible through the Fusion-Link™ app1. Take charge of two separate audio zones with Multi-Zone Technology. Seamlessly manage your music from your compatible smart device or Garmin watch.
Features
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
RETROFITTABLE
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
MULTIPLE SOURCE OPTIONS
Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.
BUILT-IN DAB TUNER
The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported. Simply connect an appropriate AM/FM antenna with no external DAB module required.
1Requires app on your compatible smartphone.
Fusion Entertainment Ltd
Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!
General |
|
| DIMENSION | 156 x 68 x 103.2 mm (6.18″ x 2.68″ x 4.06″) |
|---|---|
| WEIGHT | 316 g |
| WATER RATING | IPX6 and IPX7 (front panel only, when properly installed) |
| DISPLAY | 2.3″ perimeter bonded monochrome dot matrix LCD |
| OPERATING TEMPERATURE | 0° to 50° C |
| CURRENT (MAX) | 15 A |
Networking |
|
| BLUETOOTH® WIRELESS RANGE | Up to 30 ft (10 metres) |
|---|---|
| ANT® WIRELESS RANGE | Up to 10 ft (3 metres) |
| WIRELESS FREQUENCIES/PROTOCOLS | Bluetooth®: 2.4 GHz @ +12 dBm nominal ANT®: 2.4 GHz @ +7 dBm nominal |
Audio |
|
| AMPLIFIER | Class-D (4 ohm) |
|---|---|
Electrical features |
|
| POWER INPUT | 10.8 - 16 VDC |
|---|---|
| COMPASS SAFE DISTANCE | 150 mm (5.9″) |
Stereo features |
|
| PEAK POWER | 180 watts |
|---|---|
| RATED POWER OUTPUT (4 OHM) | 22 watts RMS x 4 @ 14.4 V input < 10% THD |
| CONTROL | Yes (smart device and Garmin watch) |
| MULTI-ZONE™️ TECHNOLOGY | 2 zones |
| BLUETOOTH® WIRELESS TECHNOLOGY | |
| ANT® WIRELESS TECHNOLOGY | |
| DAB+ READY | |
| MULTI-LANGUAGE INTERFACE | Dutch, English, French, German, Italian, Spanish |
| SOFTWARE UPDATES | Over-the-air updates via Fusion-Link™ app |
Sources |
|
| SUPPORTED SOURCES | AM, FM, Bluetooth®, AUX x1 DAB+ (available in Europe and Australia only) |
|---|---|
Connections |
|
| AUXILIARY INPUTS (RCA) | 1 |
|---|---|
| AM/FM PORTS (MOTOROLA ANTENNA CONNECTOR) | 1 |
| SPEAKER CONNECTIONS | 4 (2 zone amplified) |
| RCA PRE-OUT (LEFT, RIGHT AND SUBWOOFER) | 1 zone (requires external amplification) |
| LINE OUT | Zone 1: L + R (requires external amplification) |
| SUBWOOFER OUT | Zone 1 (requires external amplification) |
