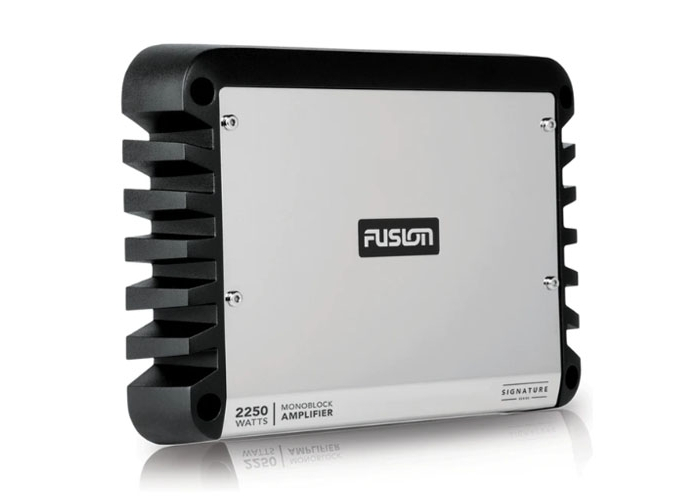

Fusion SG-DA12250 Monoblock Marine Amplifier
Fusion SG-DA12250 Signature Series Monoblock Marine Amplifier
(Fusion SG-DA12250)
We Think You Should Know
- Australian Fusion Warranty
- Purchase Guarantee (see T&C's)
- Class-D Amplifier Technology
- 2250 Watt peak power
- Marine-Ready Design with Conformal Coated PCBs
- Rigid Aluminum Alloy Heat Sink
- Stainless Mirror Finish
- Zone Designation
- True-Marine Design
Overview
The Fusion Signature Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver a Signature performance on the water like never before.
Introducing one of our most stunning and efficient marine amplifiers, the SG-DA12250. Its True-Marine design will resist corrosion, and the incredible 2250 Watt peak power is configurable for 1 Ohm impedance - delivering enough power to bring your Signature Series subwoofer components to life.
The SG-DA12250 has a highly efficient monoblock Class-D amplifier design. The key benefit of a Class-D amplifier is that it has a low battery drain with high output, making this the perfect amplifier for the marine environment. The SG-DA12250 also has conformal coated PCBs for maximum product life and performance, plus the amplifier chassis is a heat sink, to reduce component core temperature and increase efficiency.
Undeniably a stand-out piece, the stunning stainless steel mirror control panel cover conceals and protects all cable connections and setting controls, with an attractive finish to complement any installation.
Features
Class-D Amplifier Technology
The highly efficient Class-D design provides 2250-Watts peak power whilst drawing less current than a standard Class-AB amplifier. This design provides increased efficiency and power output to your speakers, letting you enjoy your music for longer.
2250 Watts Peak Power
Bring your music to life with 2250 Watts peak power.
Marine-Ready Design with Conformal Coated PCBs
Extending the life of your amplifiers, the Signature Series are designed specifically for marine use with conformal coated PCBs to provide extra protection from the marine elements.
Rigid Aluminum Alloy Heat Sink
Molded to form a singular die-cast chassis, the fin layout is calculated with precision to increase the surface area of the heat sink and improve heat dissipation.
Stainless Mirror Finish
The polished stainless-steel control panel cover conceals and protects all cable connections and settings controls whilst providing an attractive finish to complement any installation.
Zone Designation
To align with the Fusion entertainment system zone philosophy, the input and output connections are labelled as zones.
FUSION Entertainment Ltd
Fusion Entertainment was established in New Zealand in 1998 by founders who have a passion for cars, music and street culture. Now, nearly 20 years later, the company's innovation and product design has propelled them to be a global player in car and marine audio. We trust in Fusion to bring a first class audio experience to your boat and car - and so can you!
Product Specifications
| Amplifier Class | Class-D |
|---|---|
| Subwoofer Frequency Response | 10Hz - 320Hz |
| Peak Power | 2250 Watts |
| Rated Power (4 Ohms) | 500 Watts RMS x 1 @ 14.4V - 4 Ohms 1% THD |
| Rated Power (2 Ohms) | 850 Watts RMS x 1 @ 14.4V - 2 Ohms 1% THD |
| Rated Power (1 Ohm) | 1100 Watts RMS x 1 @ 14.4V - 1 Ohm 1% THD |
Mounting Dimensions
| Height | 50mm [2”] |
|---|---|
| Length | 300mm [11-13/16”] |
| Depth | 210mm [8-1/4”] |
- Fusion SG-DA12250 Signature Series Monoblock Marine Amplifier
