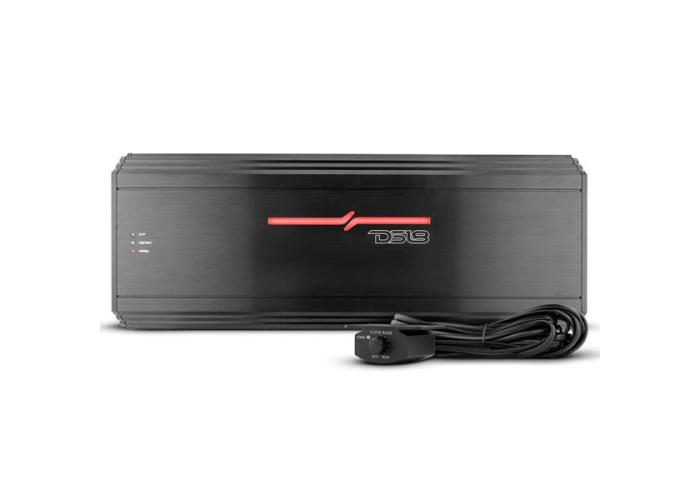

DS18 ZR2000.1D 6000W 1-Channel Class D Amplifier
DS18 ZR2000.1D 6000W 1-Channel Class D Amplifier
(DS18 ZR2000.1D)
We Think You Should Know
- Australian DS18 Warranty
- Purchase Guarantee (see T&Cs)
- 1-Channel Monoblock Subwoofer
- 1 ~ 4 Ohm Stable
- 1 x 2000 Watts @ 1 Ohm
- Bass Control Knob
- Clip/Protection Indicator
Overview
The ZR series stands as a revolutionary force, meticulously crafted to optimize your sound system and unleash its true potential.
With DS18's ZR2000.1D, the possibilities are boundless. Featuring an impressive array of tuning options, including Lowpass, Subsonic, and a Bass Boost Switch Selector, this amplifier allows you to fine-tune every song to your desired frequency, ensuring that each note is reproduced with impeccable precision and tailored to your unique listening preferences.
Delivering a commendable 800W RMS @ 4-Ohm, 1300W RMS @ 2-Ohm, and 2000W RMS @ 1-Ohm, the ZR2000.1D provides the perfect amount of power to fuel your bass, effortlessly propelling your speakers to their maximum potential and creating a rich and immersive audio environment.
The ZR2000.1D epitomizes DS18's commitment to excellence. Its Full Range design ensures maximum efficiency, while the impressive 6000 Peak Wattage guarantees that all your speakers receive the necessary power. With a frequency response of 10Hz – 220Hz, this amplifier faithfully reproduces the deepest lows with remarkable clarity and accuracy.
Designed to optimize your sound system for powerful performance during every session, the ZR2000.1D features LED indicators for Clipping, Power, and Protect, providing valuable visual feedback for optimal performance. The power and ground terminals are designed to accommodate 0 Ga wires, ensuring a secure and reliable connection. Additionally, selectable X-Over options grant you the ability to fine-tune your bass, allowing for seamless integration with your existing sound system and putting you in complete control of your soundstage.
Experience the DS18 difference today with the ZR2000.1D and embark on a journey into a new dimension of car audio excellence.
DS18 - The Brand
DS18 manufactures high-quality car audio products, including speakers, amplifiers, subwoofers, and more. The company was founded in 2009 and has since grown to become a leading brand in the car audio industry, known for its innovative designs and commitment to quality.
SPECS
SKU
ZR2000.1D
Total Watts (Peak)
6000W
RMS Power @ 4 Ohm
800W
RMS Power @ 2 Ohm
1300W
RMS Power @ 1 Ohm
2000W
AUDIO
Frequency Response
10-220Hz
Signal to Noise Ratio
>95dB
Efficiency @ 4 Ohm
80%
Damping Factor
220
Input Impedance
20K ohm
Channel Separation
N/A
Total Harmonic Distortion (THD)
0.01%
Low Level Input Range
0.2-6V
High Level Input
Yes
Selectable X-Over
LPF Fixed
X-Over Filter Range
40-180Hz
Bass Boost Range
0-12dB
Bass Boost Frequency
30-80Hz
Infrasonic Filter
10-50Hz
Phase Selector
No
FEATURES
Amplifier Class
Digital
Amplifier Type
Monoblock Subwoofer
Number of Channels
1
Minimum Impedance
1 Ohm
Led Indicator
Clipping/protect/power
Power Input Terminal Size
0 GA
Fuse Size
200 A
Remote Level Control
Yes / Dash Mount
Cooling Fan
No
Voltmeter
No
Thermal Protection
Yes
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes <9 / >16 Volts
Clipping Protection
Yes
Body Color / Finish
Black Aluminum Brush
MEASUREMENT
Overall Length
19.13" / 486mm
Overall Wide
7.24" / 184mm
Overall Height
2" / 53mm
Heatsink Length
17.75" / 451mm
