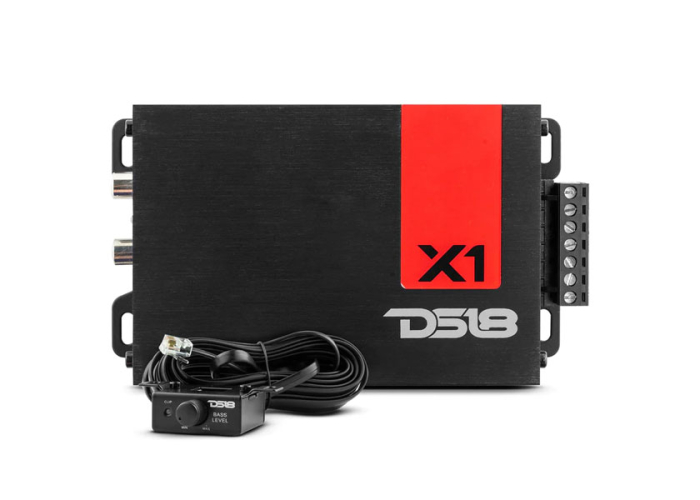

DS18 X1 Ultra Compact 1-Channel 900W Amplifier
DS18 X1 Ultra Compact 1-Channel 900W Amplifier
(DS18 X1)
We Think You Should Know
- Genuine Australian DS18 Warranty
- Peace of Mind Purchase Guarantee
- 1-Channel Class-D Amplifier
- 1 ~ 4 Ohm Stable
- 1 x 300 Watts @ 1 Ohm
- Power/Protection Indicator
- Ultra Compact Design
Overview
Introducing DS18’s X1 amplifier, engineered to excel in the most compact spaces without compromising power or performance. Picture this: effortlessly integrating multiple X series amps into your custom setups, empowering you to craft the audio environment of your dreams, discreetly tucked away yet commanding attention with its robust output.
Despite its diminutive size, the X1 packs a punch, boasting an impressive 140W at 4 ohms and a staggering 300W RMS at 1 ohm, ensuring your music resonates with unparalleled clarity and vigor. But it's not just about raw power; it's about reliability too. With a meticulously designed four-layered traces PCB, surface mount component technology, and rigorous quality control, DS18 guarantees a stable and enduring performance.
Fine-tuning your sound has never been easier thanks to the X1's adjustable filters. Tailor your audio precisely with the fixed LPF, effortlessly achieving the ideal balance for your subwoofers and immersing yourself in a personalized sonic journey.
DS18 Car Audio - The Company
DS18 although a relative new comer to the US car audio market is already starting to make a name for itself by producing affordably priced car audio products that deliver well above average performance. With products such as full range and component speakers, high SPL subwoofers and amplifiers, there is a product to suit your requirements and more importantly, your budget. Great value is certainly something that we associate with DS18 products.
SKU
X1
Class
Class-D / Digital
Channels
1
Total Watts Peak
900W
RMS Power @ 4 Ohm
140W x 1 CH
RMS Power @ 2 Ohm
220W x 1 CH
RMS Power @ 1 Ohm
300W x 1 CH
Frequency Response
20Hz-500H
Signal/noise Ratio
>90 dB
Efficiency @ 4 Ohm
>80%
Damping Factor
>200
THD %
<0.2%
Low Level Input Range
0.2-5V
Selectable X-Over
Fixed LPF
X-Over Filter Range
50HZ-250Hz
Bass Boost Range
0-18 dB
Bass Boost Frequency
40 Hz
Infrasonic Filter
10-55Hz
Phase Selector
0 - 180 Degrees
Minimum Impedance
1 Ohm
- DS18 X1 Ultra Compact 1-Channel 900W Amplifier
Peace of Mind Purchase Guarantee
This product is supplied via DS18 Australia and enjoys the FULL benefits of the 'Genuine DS18 Australian Warranty'. (You may also be entitled to other consumer warranties as provided by the Australian Consumer Guarantee and these entitlements are not limited by this warranty). In the event that this product should fail please contact our service department or you can speak with DS18 Australia directly.
We are a FULLY AUTHORISED Australian retailer for DS18 Australia.
